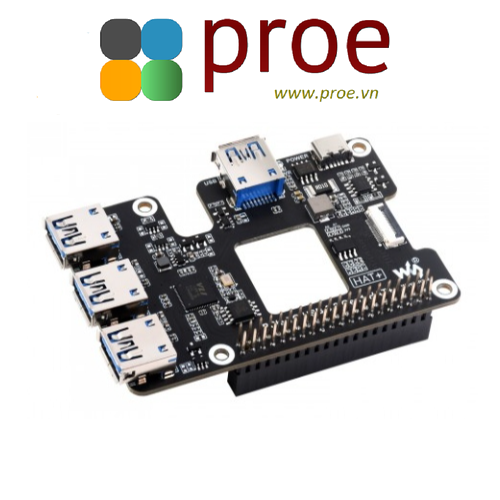

PCIe To USB 3.2 Gen1 HAT for Raspberry Pi 5, PCIe to USB HUB, 4x High Speed USB Ports, driver-free, plug and play, HAT + Standard

Wiki: www.waveshare.com/wiki/PCIe_TO_USB_3.2_Gen1_HAT+

PACKAGE CONTENT

Weight: 0.017 kg

1. PCIe TO USB 3.2 Gen1 HAT+ x1
2. Standoff pack x1
3. 16P-Cable-40mm x1

DESCRIPTION

PCIe To USB 3.2 Gen1 HAT For Raspberry Pi 5, PCIe To USB HUB, 4x High Speed USB Ports, Driver-Free, Plug And Play, HAT + Standard

PCIe TO USB 3.2 Gen1 HAT

Designed for Raspberry Pi 5, driver-free, plug and play

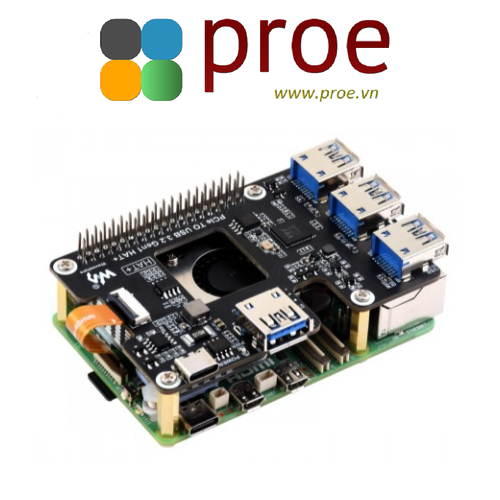

Connecting To PI5 Via 16PIN Cable

Based On 16PIN PCIe Interface Of Raspberry Pi 5

* for reference only, please refer to the Package Content for detailed part list

More USB Capability For Raspberry Pi 5

Extends The PCIe Interface To 4x High Speed USB 3.2 Gen1 Ports For Connecting More Peripherals

Onboard Power Monitoring Chip And EEPROM

Real-Time Monitoring Of Power Status, Supports USB Port Power Control Via Software

Reserved Airflow Vent For Cooling Fan

Better Cooling Effect For Pi5, More Stable Operation

* for reference only, the Raspberry Pi 5 and cooling fan are NOT included

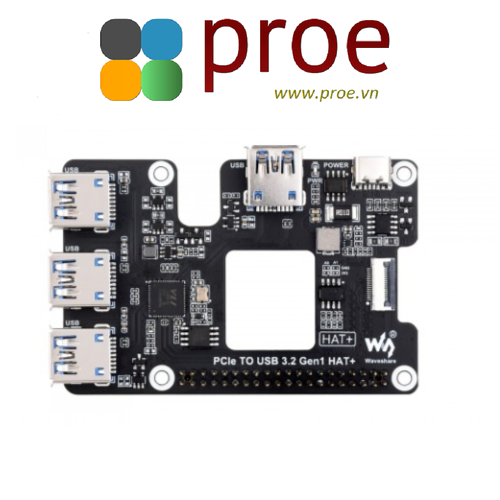

What's On Board

1. Raspberry Pi GPIO header
   for connecting Raspberry Pi 5
2. USB 3.2 Gen1 expanded ports
   USB1~USB4
3. INA219
   Power monitoring chip
4. Power port
   for external Type-C 5V DC power supply

5. PWR LED
   Power indicator
6. MX25L3206
   FLASH chip
7. VL805
   PCIe to USB 3.2 Gen1 HUB
8. PCIe interface
   for connecting to the PCIe interface of Raspberry Pi 5

How To Install

* for reference only, please refer to the Package Content for detailed part list

Outline Dimensions
