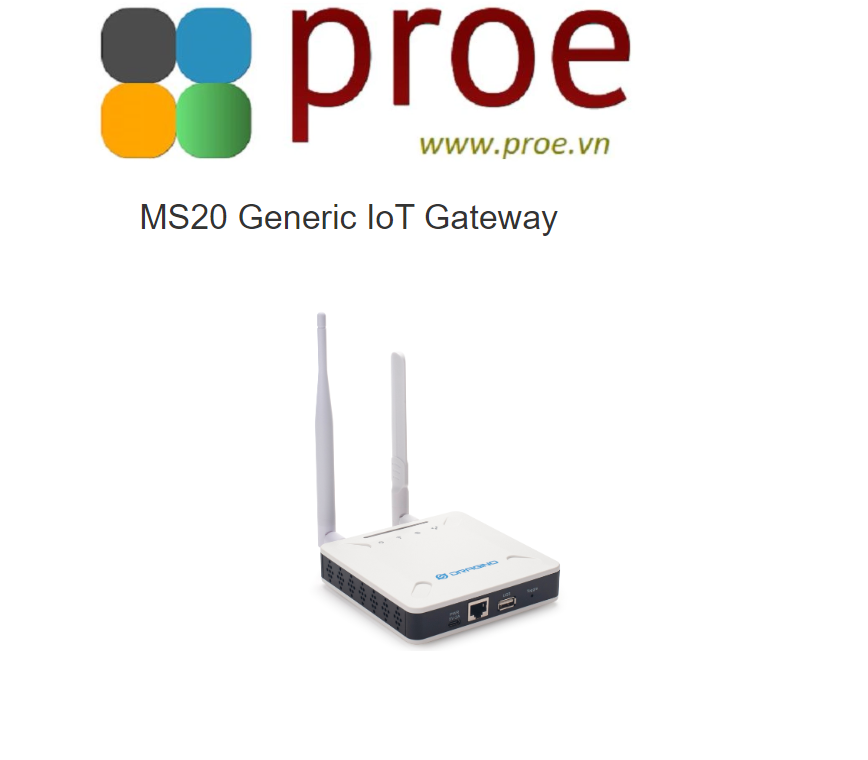

MS20 Generic IoT Gateway

  • Mã sản phẩm: MS20 Generic IoT Gateway
  • Nhà sản xuất: Dragino
  • Website hỗ trợ: https://www.proe.vn
2.500.000₫

Overview

MS20 is an Open Source Linux box designed as a generic IoT Gateway for different IoT applications.

MS20 is equipped with a  Quad-core Cortex-A7 1.2Ghz CPU, 512MB RAM, 4GB eMMC memory, and SD card slot. MS20 supports different kinds of network connections such as Ethernet, WiFi, and an optional 4G connection. There are internal GPIOs and USB interface inside MS20 for developers to develop customized modules for their IoT application.

The OS running in MS20 is Armbian( a embedded version of Debian), which is easy to maintain. The OS is completely open-source for users to develop different kinds of software. There are also some very useful pre-load software such as Web-UI, Node-Red, remote management, network management, and auto-update for the quick start of deployment and maintenance.

Specifications

Hardware System:

  •  CPU: Quad-core Cortex-A7 1.2Ghz
  •  RAM: 512MB
  •  eMMC Memory: 4GB

Interface:

  • 10M/100M RJ45 Ports x 1
  • Multi-Channel LoRaWAN Wireless
  • WiFi 802.11 b/g/n
  • mini-pcie slot for cellular connection  ( Since hardware v1.3)
  • External USB host x 1
  • SPI/I2C Interface via GPIOs and internal USB slot.

Operating Condition:

  • Work Temperature: -20 ~ 65°C
  • Storage Temperature: -20 ~ 65°C
  • Power Input: 5V, 2A, DC

Features

  • Open Source Debian system
  • Managed by Web GUI, SSH via WAN or WiFi
  • Remote Management
  • Auto-provisioning for batch deployment and management
  • CPU: Quad-core Cortex-A7 1.2Ghz
  • RAM: 512MB
  • eMMC Memory: 4GB
  • 10M/100M RJ45 Ports x 1
  • Multi-Channel LoRaWAN Wireless
  • WiFi 802.11 b/g/n
  • mini-pcie slot for cellular connection  ( Since hardware v1.3)
  • External USB host x 1
  • SPI/I2C Interface via GPIOs and internal USB slot.

Block Diagram


Pin Mapping

IO Voltage : 3.3v


Hardware Reference Design


Build A Multi-Channel LoRaWAN Gateway -- LPS8v2

MS20 + PG1302 = LPS8v2.


Build A Single-Channel LoRa Gateway -- LG01v2

MS20 + Single Channel LoRa Module = LG01v2 (Document TBD)

Single Channel Module Circuit: Download


Order Info

MS20-XXX

XXX: 4G Cellular Option

  • E: EMEA, Korea, Thailand, India.
  • A: North America/ Rogers/AT&T/T-Mobile.
  • AU: Latin America, New Zeland, Taiwan
  • J: Japan, DOCOMO/SoftBank/ KDDI
