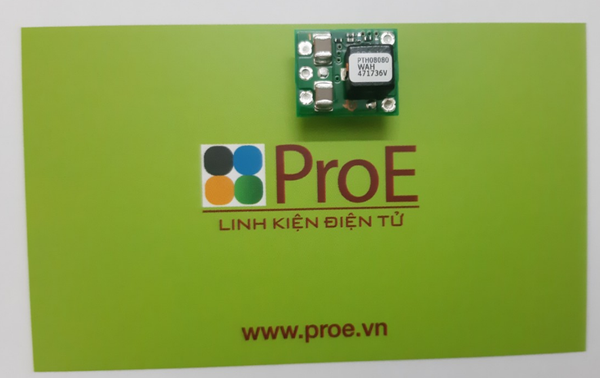

Module nguồn PTH08080W 2.25 A, 4.5-V to 18-V Input Wide Adjust Miniature Power Module

Description

The PTH08080W is a highly integrated, low-cost switching regulator module that delivers up to 2.25 A of output current. The PTH08080W sources output current at a much higher efficiency than a TO-220 linear regulator IC, thereby eliminating the need for a heat sink. Its small size (0.5 × 0.6 in) and flexible operation creates value for a variety of applications.

The input voltage range of the PTH08080W is from 4.5 V to 18 V, allowing operation from either a 5-V or 12-V input bus. Using state-of-the-art switched-mode power-conversion technology, the PTH08080W can step down to voltages as low as 0.9 V from a 5-V input bus, with less than 1 W of power dissipation. The output voltage can be adjusted to any voltage over the range, 0.9 V to 5.5 V, using a single external resistor. Operating features include an undervoltage lockout (UVLO), on/off inhibit, overcurrent protection, and overtemperature protection. Target applications include telecommunications, test and measurement applications, and high-end consumer products. This product is available in both through-hole and surface-mount package options, including tape and reel.

Features

• Up to 2.25-A Output Current at 85°C
• 4.5-V to 18-V Input Voltage Range
• Wide-Output Voltage Adjust (0.9 V to 5.5 V)
• Efficiencies Up To 93%
• On/Off Inhibit
• Undervoltage Lockout (UVLO)
• Output Overcurrent Protection (Nonlatching, Auto-Reset)
• Overtemperature Protection
• Ambient Temperature Range: –40°C to 85°C
• Surface-Mount Package
• Safety Agency Approvals: UL/CUL 60950, EN60950
