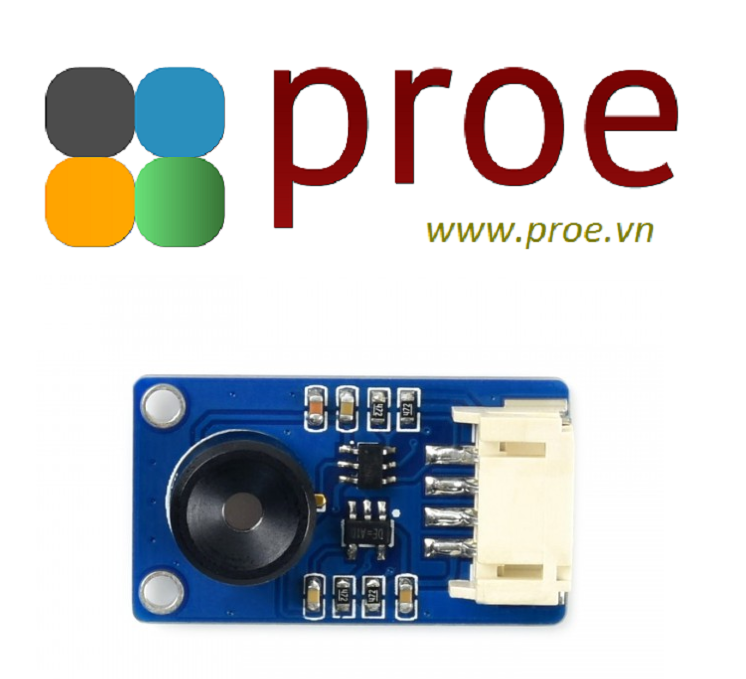

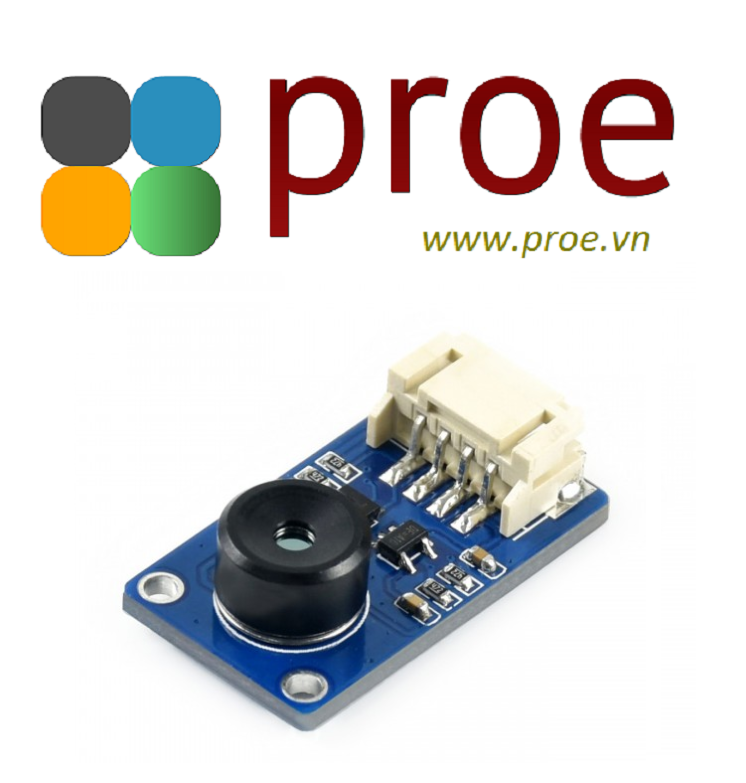

MLX90640 IR Array Thermal Imaging Camera, 32×24 Pixels, 110° FOV

  • Mã sản phẩm: MLX90640-D110 Thermal Camera
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ:

MLX90640 IR Array Thermal Imaging Camera, 32×24 Pixels, 110° Field of View, I2C Interface


This is a 32×24 pixels, 110° field of view, IR array thermal imaging camera, communicating via I2C interface. It is compatible with 3.3V/5V operating voltage, supports host platforms such as Raspberry Pi/Arduino(ESP32)/STM32, etc.

By utilizing the MLX90640 far-infrared thermal sensor array, this module can detect the IR distribution of objects in the field of view, turn the data into surface temperature of the objects by calculation, and then generate thermal images. Due to the small form factor, it can be easily integrated into miscellaneous industrial or intelligent control applications.


  • Adopts MLX90640 far-infrared thermal sensor array, 32×24 pixels
  • Communicating via I2C interface, configurable to fast mode (up to 1MHz data rate)
  • Noise Equivalent Temperature Difference (NETD) 0.1K RMS @1Hz refresh rate
  • Onboard voltage translator, compatible with 3.3V/5V operating voltage
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino(ESP32)/STM32)


  • Operating voltage: 3.3V/5V
  • Operating current: <23mA
  • Communication interface: I2C (address 0x33)
  • Field of view (Horizontal×Vertical):
  • Operating temperature: -40℃~85℃
  • Target temperature: -40℃~300℃
  • Resolution: ±1℃
  • Refresh rate: 0.5Hz~64Hz (programmable)
  • Dimensions: 28mm×16 mm
  • Mounting hole size: 2.0mm


  • High precision non-contact temperature measurements
  • IR thermal imaging devices, IR thermometers
  • Smart home, intelligent building, intelligent lighting
  • Industrial temperature control, security monitoring, intrude/movement detection

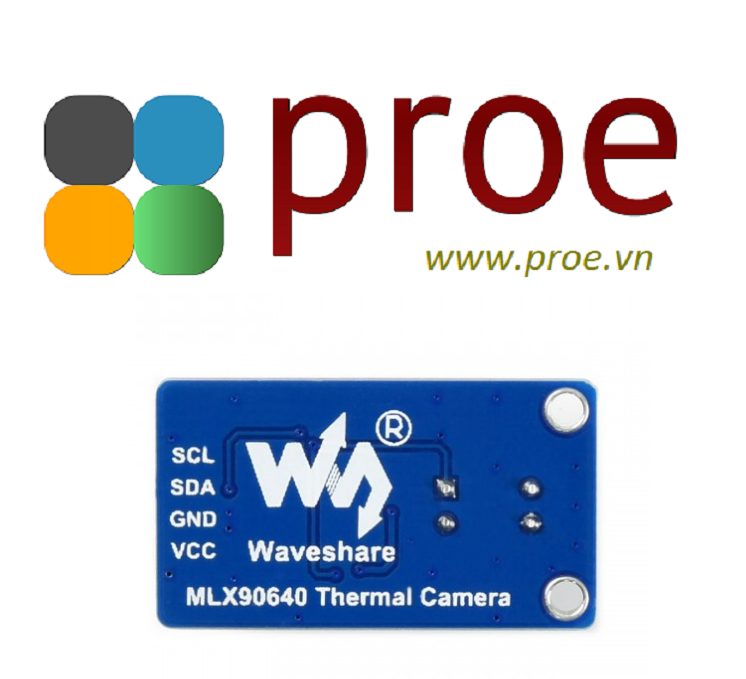

In the case of working with MCU:

  • VCC ↔ 3.3V / 5V
  • GND ↔ GND
  • SDA ↔ MCU.I2C data line
  • SCL ↔ MCU.I2C clock line


Generating IR thermal images of the Raspberry Pi:

MLX90640-D110 Thermal Camera application example MLX90640-D110 Thermal Camera application example


MLX90640-D110 Thermal Camera dimensions

Development Resources




Weight: 0.006 kg

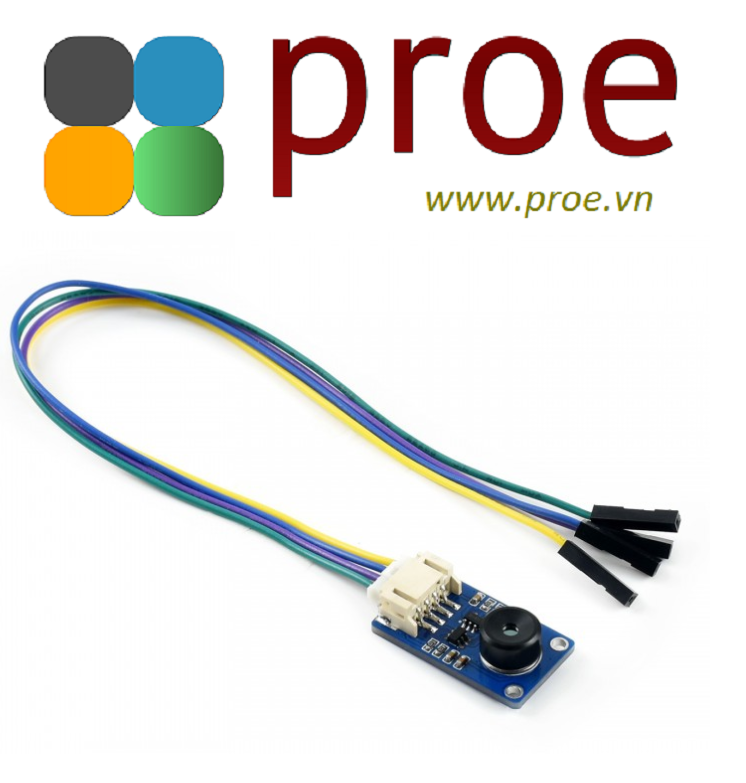

  1. MLX90640-D110 Thermal Camera x1
  2. PH2.0 4PIN wire x1
