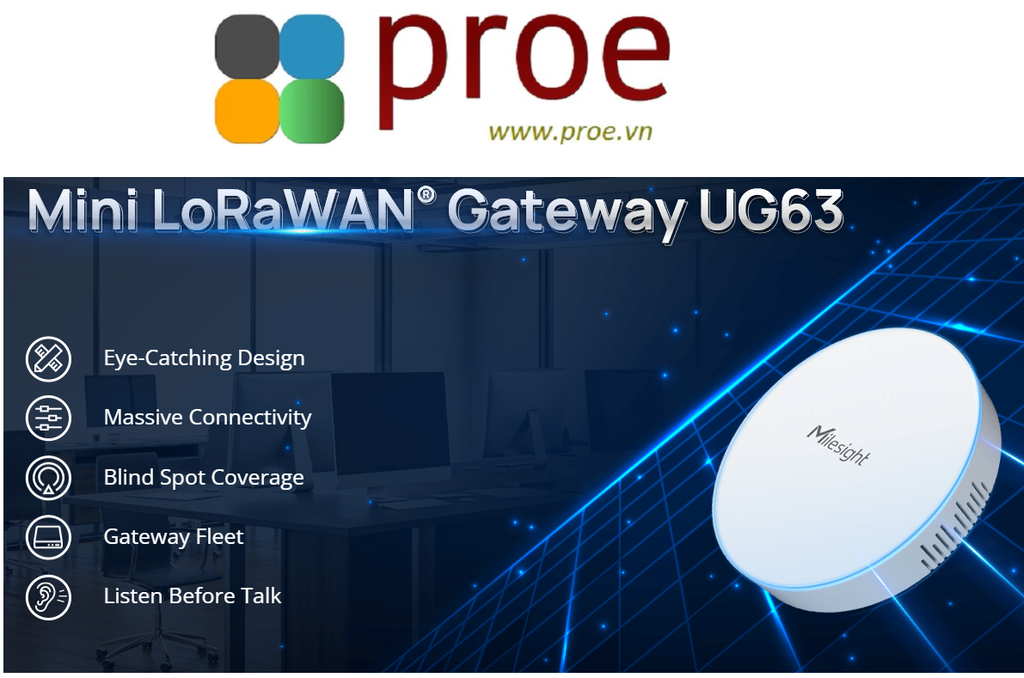

Sticking to minimalism, the UG63 Mini LoRaWAN® Gateway
is as small as a disk. Coupled with an elegant and aesthetic appearance, UG63 is in perfect accord with the office surroundings.
Adopting Semtech SX1302 LoRa chip, UG63 supports connection with more than 2000 LoRaWAN® nodes.
Besides the general features of a LoRaWAN® gateway, the Gateway Fleet makes UG63 particularly suited for providing network coverage for indoor blind spots.
The Gateway Fleet feature enables multiple agent gateways transmitting received data to one controller gateway, which facilitates the deployment and management of LoRaWAN® network.
The Listen Before Talk (LBT) protocol makes it possible for multiple transmitting nodes to share the same transmitting channel, which allows the device to bypass the Duty Cycle requirement imposed by European standards.
2.2 w
3.3 w
With built-in network server, the UG63 also supports Semtech’s latest packet forwarder, and is compatible with multiple network server platforms like TTN, ChirpStack, and Orbiwise which offers a wide range of options for data processing.
Hardware System | |
CPU | 528 MHz, ARM Cortex-A7 |
Memory | 256 MB DDR4 RAM |
Flash | 4 GB eMMC |
LoRaWAN | |
Antenna | 2 × Internal Antennas |
Channel | 8 (Half/Full-duplex) |
Frequency Band | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
Sensitivity | -140dBm Sensitivity @292bps |
Output Power | 27dBm Max |
Protocol | V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C |
LBT | Support |
Ethernet Interface | |
Port | 1 × RJ45 (PoE PD supported) |
Physical Layer | 10/100 Base-T (IEEE 802.3) |
Data Rate | 10/100 Mbps (Auto-Sensing) |
Interface | Auto MDI/MDIX |
Mode | Full or Half Duplex (Auto-Sensing) |
Others | |
Reset Button | 1 × RST |
Console Port | 1 × Type-C |
LED Indicators | 1 × SYS, 1 × LoRa |
Built-in | Watchdog, RTC, Timer |
Software | |
Network Protocols | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. |
VPN Tunnel | OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN |
Management | Web, CLI, DeviceHub, Milesight IoT Cloud, Yeastar Workplace Platform |
App | Python SDK |
Power Supply | |
Power Input | 1. 1 × 802.3af standard PoE input 2. 5V by Type-C Port |
Physical Characteristics | |
Ingress Protection | IP30 |
Dimensions | Ф 115 x 21 mm (Ф 4.52 x 0.83 in) |
Color & Material | White, PC + ABS |
Installation | Desktop, Wall or Ceiling Mounting |
Environmental | |
Operating Temperature | -20°C to +50°C (-4℉ to +122℉) |
Storage Temperature | -40°C to +85°C (-40℉ to +185℉) |
Ethernet Isolation | 1.5 kV RMS |
Relative Humidity | 0% to 95% (non-condensing) at 25°C/77℉ |
