Màn hình 7inch cảm ứng điện dung HDMI LCD (B), 800×480, supports various systems

  • Mã sản phẩm: Cảm ứng điện dung 7inch HDMI LCD(B),800×480
  • Nhà sản xuất: Waveshare
  • Tình trạng: Còn hàng
  • Website hỗ trợ: https://www.proe.vn
1.200.000₫

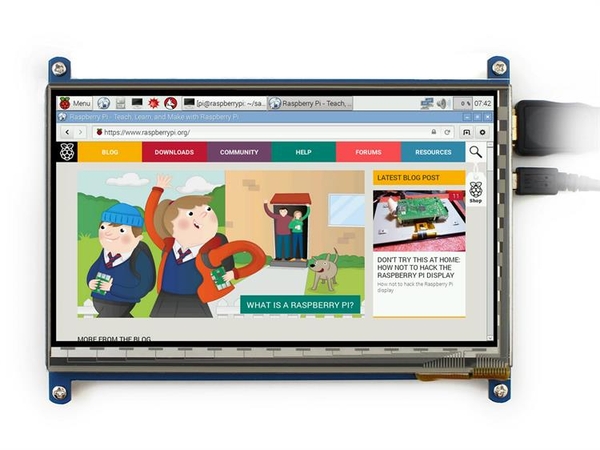

7 inch Capacitive Touch Screen LCD, HDMI interface, supports various systems

Weight: 0.318 kg

  1. 7inch HDMI LCD (B) x 1
  2. HDMI cable x 1
  3. USB type A plug to micro B plug cable x 1
  4. RPi screws pack (4pcs) x 1

Features

  • 800×480 high resolution
  • Capacitive touch control
  • Supports Raspberry Pi
  • Supports Banana Pi / Banana Pro, comes with Lubuntu, Raspbian images
  • Supports BB Black, comes with Angstrom image
  • For other mini-PCs, driver is required and should be developed by users
  • Not only for mini-PCs, it can work as a computer monitor just like any other general HDMI screen
  • HDMI interface for displaying, USB interface for touch control
  • Backlight can be turned off to lower power consumption

Note: to use the LCD with following mini-PCs, additional cables are required and should be purchased separately:
Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable
BB Black: HDMI cable

For revisions under Rev2.1:

  • For the Raspberry Pi, comes with Raspbian driver (works with your Raspbian directly), and Ubuntu image
  • When work as a computer monitor, touch function is unavailable

Rev2.1 New Features:

  • Standard HID protocol, easy to be integrated into your system
  • For the Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free
  • When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free

Supported mini PC

mini PC Driver Image
Raspberry Pi B Raspbian Raspbian
Raspberry Pi A+ Raspbian Raspbian
Raspberry Pi B+ Raspbian Raspbian
Raspberry Pi 2 Model B Raspbian Raspbian, Ubuntu, WIN10 IoT
Raspberry Pi 3 Model B Raspbian Raspbian, Ubuntu, WIN10 IoT
Raspberry Pi 3 Model B+ Raspbian Raspbian, Ubuntu, WIN10 IoT
Banana Pi - Raspbian, Lubuntu
Banana Pro - Raspbian, Lubuntu
BB Black - Angstrom

Note :
Drivers can be added to your current system to support LCD display and touch control.
Images CAN NOT be used with your current system. They're stand-alone systems which support LCD display and touch control already.

Photos



External Dimension

7inch-HDMI-LCD-B-dimension

Development Resources

Wiki : www.waveshare.com/wiki/7inch_HDMI_LCD_(B)
