3.5inch RPi LCD (B), 320×480, IPS

  • Mã sản phẩm: 3.5inch RPi LCD (B), 320×480, IPS
  • Nhà sản xuất: Waveshare
  • Tình trạng: Còn hàng
  • Website hỗ trợ: https://www.proe.vn
650.000₫

Weight: 0.056 kg

  1. 3.5inch RPi LCD (B) x 1
  2. Touch pen x 1
  3. RPi screws pack (2pcs) x 1
  4. DVD × 1



320×480, 3.5 inch Touch Screen IPS TFT LCD Designed for Raspberry Pi

Features

  • 320×480 resolution
  • Resistive touch control
  • Supports any revision of Raspberry Pi (directly-pluggable)
  • Drivers provided (works with your own Raspbian/Ubuntu directly)
  • IPS technology, high quality and perfect displaying from very wide viewing angle
  • Size perfectly fits the Pi
  • High quality immersion gold surface plating
  • Supports Raspbian system, enables your system to:
    • Take photos by touching (up to 17 camera modes)
    • Support software keyboard (system interaction without keyboard/mouse)

3.5inch RPi LCD (A) and 3.5inch RPi LCD (B) are hardware compatible with each other (uses different driver), and can be mutually substituted in most cases. (A) for low cost ver. while (B) for IPS ver. with better displaying.

Key Parameters

LCD Type IPS
LCD Interface SPI
Touch Screen Type Resistive
Touch Screen Controller XPT2046
Colors 65536
Backlight LED
Resolution 320*480 (Pixel)
Aspect Ratio 8:5
Power Consumption TBD
Backlight Current TBD
Operating Temp. (℃) TBD

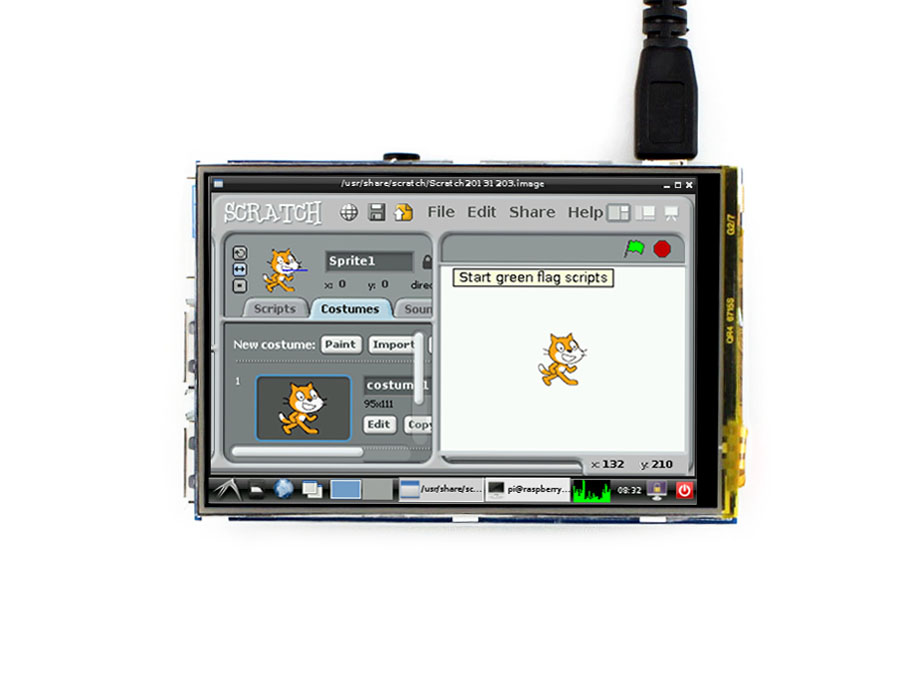

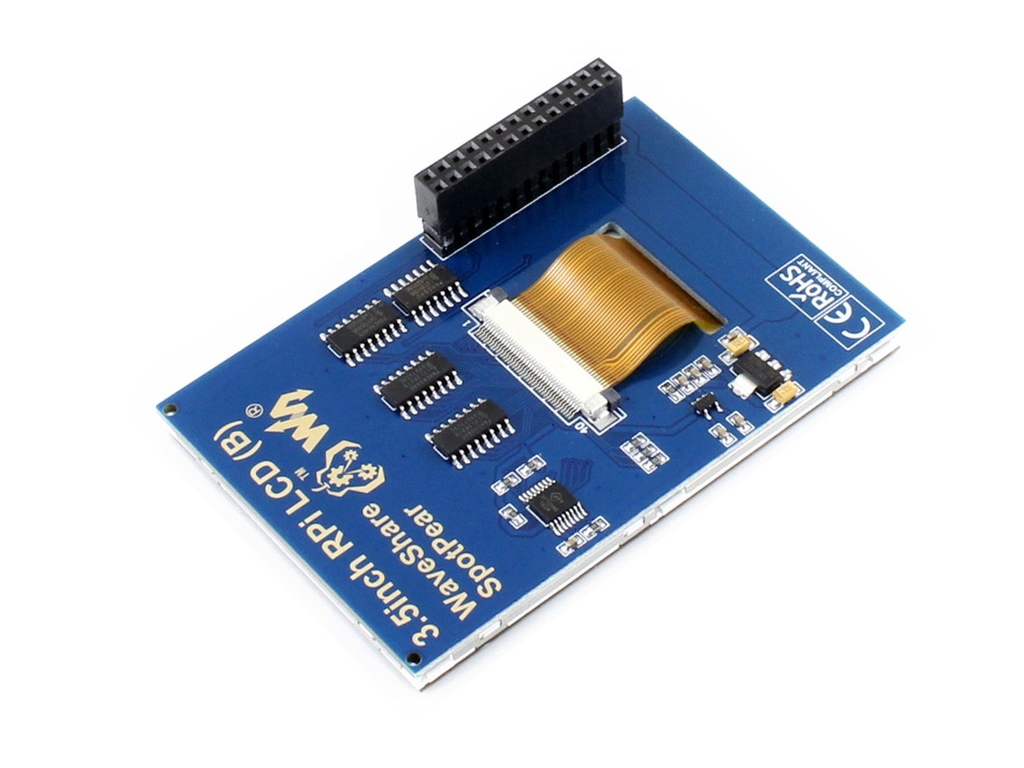

Photos

Interface

PIN NO. SYMBOL DESCRIPTION
1, 17 3.3V Power positive (3.3V power input)
2, 4 5V Power positive (5V power input)
3, 5, 7, 8, 10, 12, 13, 15, 16 NC NC
6, 9, 14, 20, 25 GND Ground
11 TP_IRQ Touch Panel interrupt, low level while the Touch Panel detects touching
18 LCD_RS Instruction/Data Register selection
19 LCD_SI / TP_SI SPI data input of LCD/Touch Panel
21 TP_SO SPI data output of Touch Panel
22 RST Reset
23 LCD_SCK / TP_SCK SPI clock of LCD/Touch Panel
24 LCD_CS LCD chip selection, low active
26 TP_CS Touch Panel chip selection, low active

External Dimension

3.5inch-RPi-LCD-B-dimension

Development Resources

Wiki : www.waveshare.com/wiki/3.5inch_RPi_LCD_(B)

FAQ

Why the LCD doesn't work with my Raspbian?
To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.
However, for the first testing, you may want to use our provided image directly.
Why the LCD still doesn't work with the Waveshare provided image?
Make sure the hardware connection is correct and connects fine.
Make sure the image in TF card is burnt correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.
Which power supply should I use?
It is strongly recommended to use a stand-alone 5V/2A power adapter, because the PC's USB port might have not enough power to support the Pi and LCD.

For more info, please check the wiki page.
