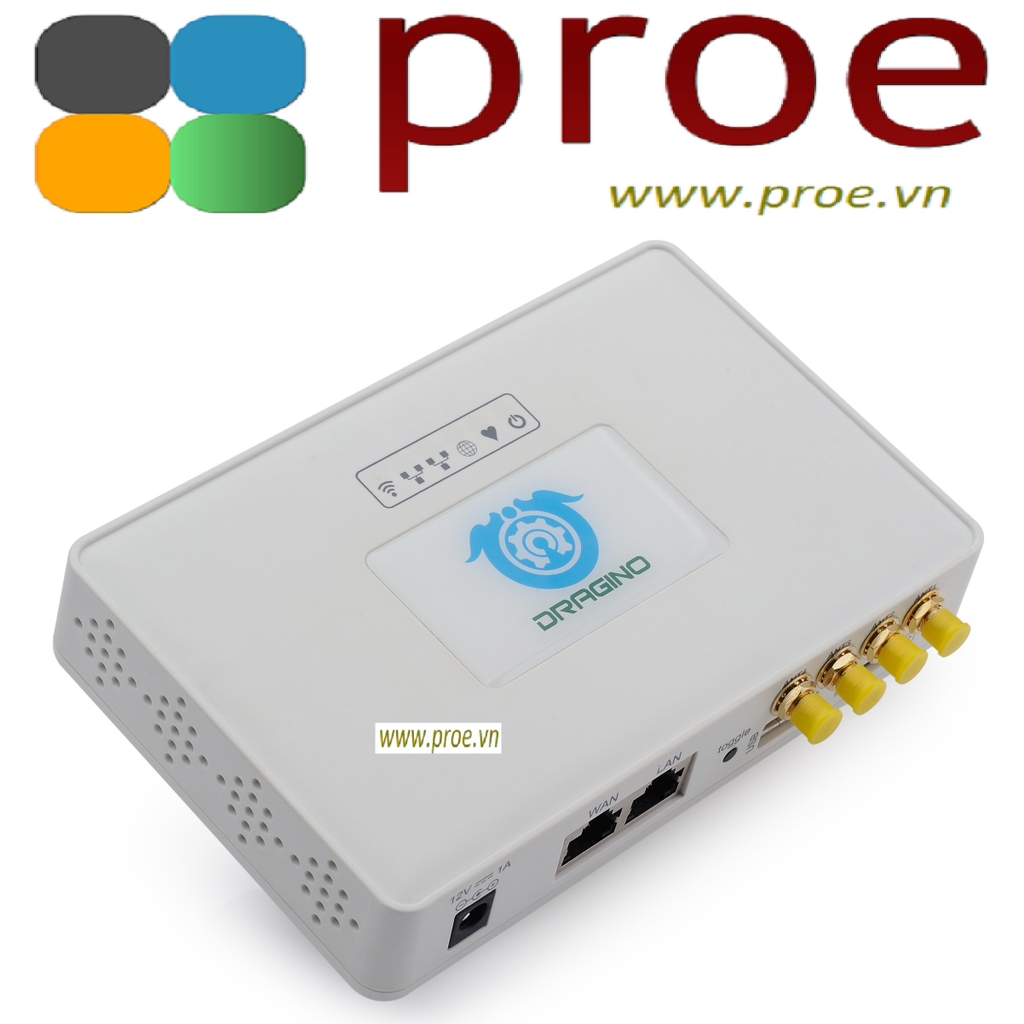

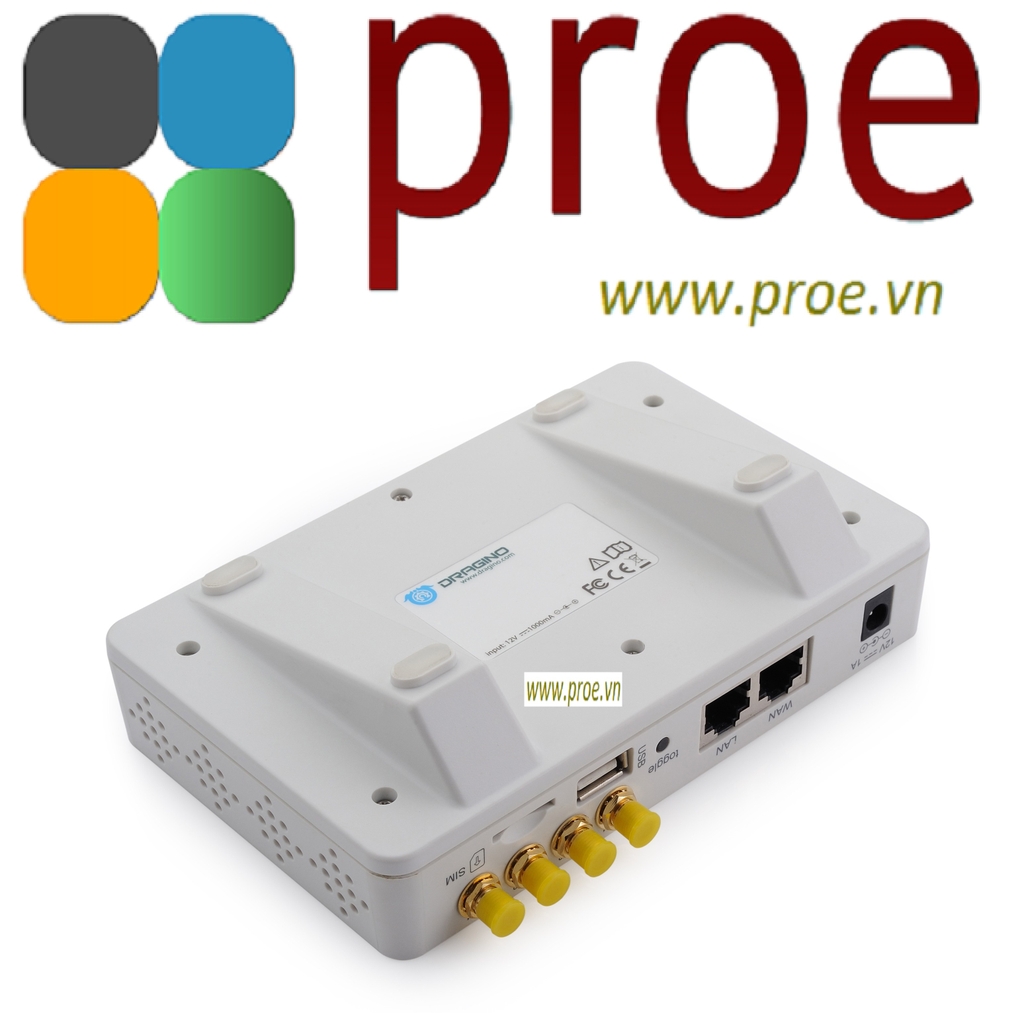

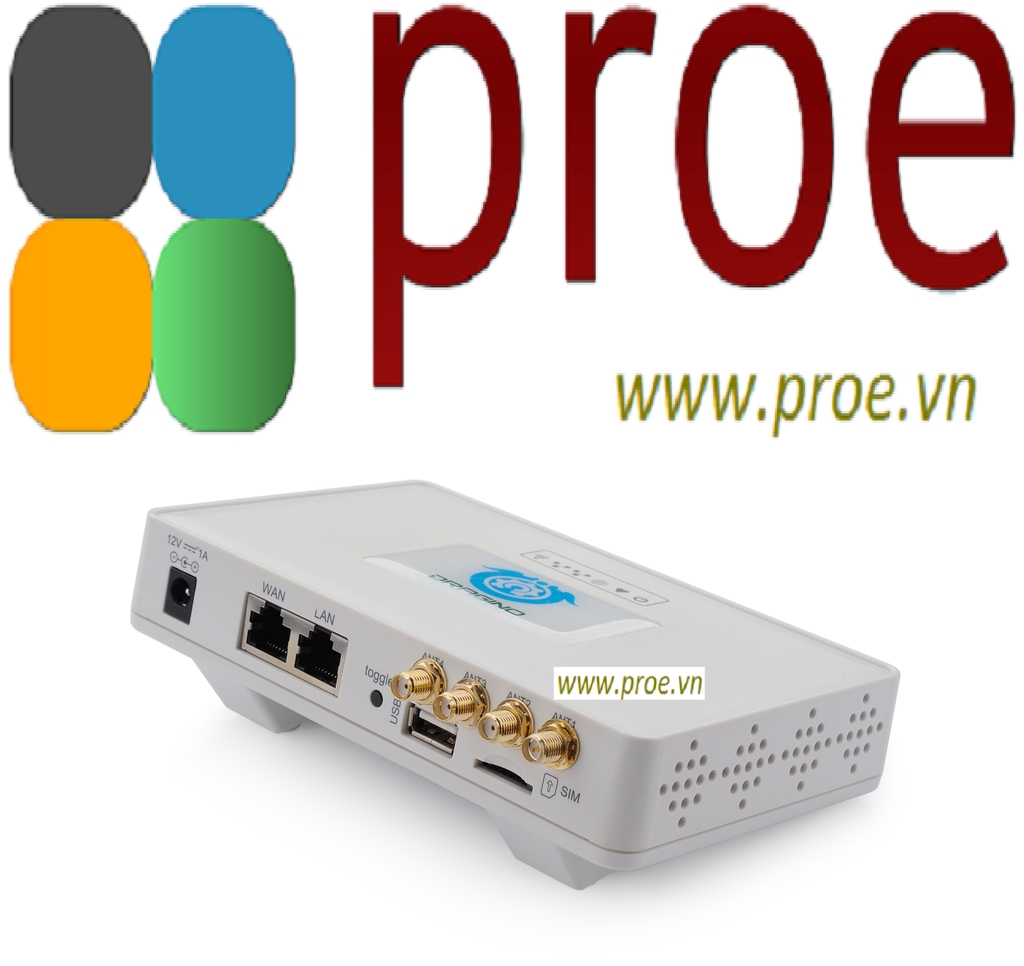

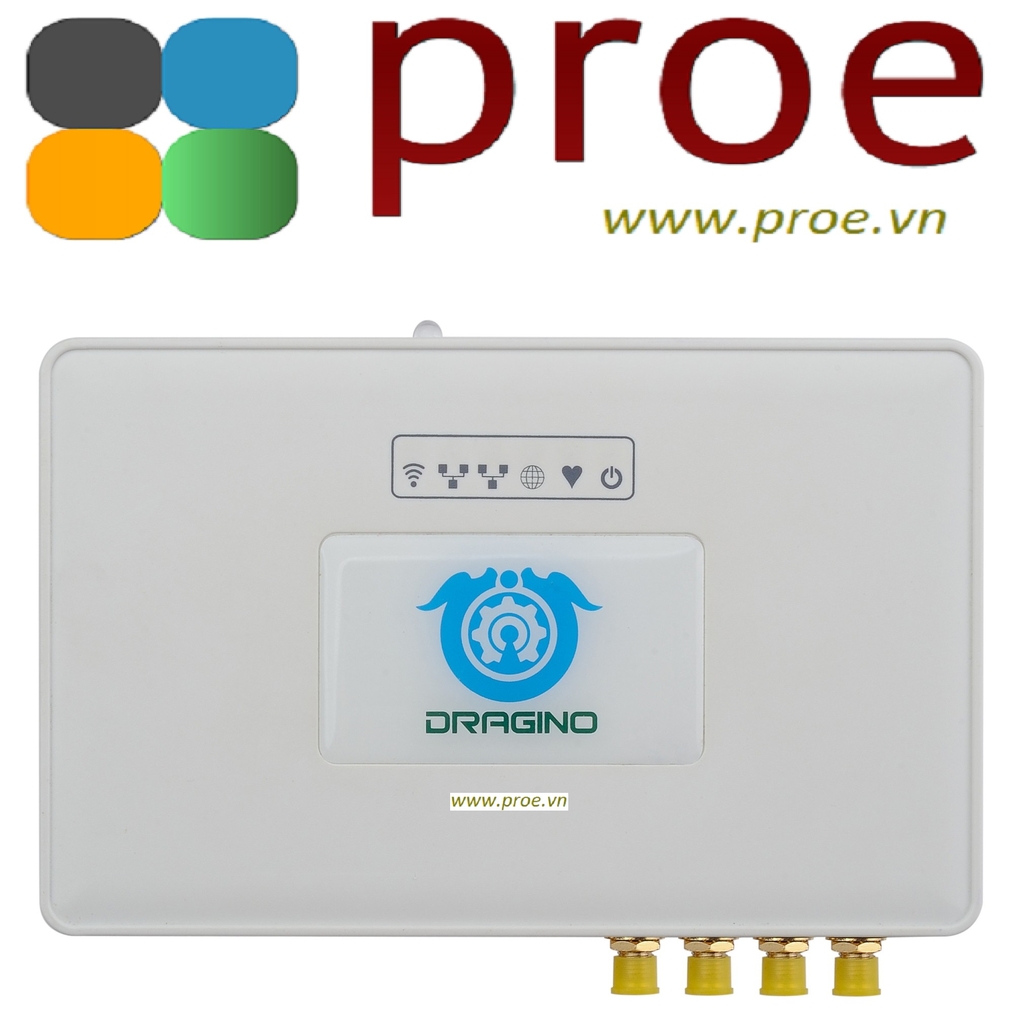

LG308 Indoor LoRaWAN Pico Gateway Cellular 4G LTE EC25

The LG308 is an open source LoRaWAN Pico Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet, 3G or 4G cellular. The LoRa wireless allows users to send data and reach extremely long ranges at low data-rates.

The LG308 is fully compatible with LoRaWAN protocol. It includes a SX1308 LoRa concentrator and a SX1276 LoRa tranceiver, the sx1308 provides 10 programmable parallel demodulation paths and the SX1276 acts as TX channel so the SX1308 won’t be block during TX. This combination provides higher capacity compare with a standalone SX1308 concentrator solution.

The LG308 has a built-in GPS module, the GPS module is connected to the SX1308 chip direclty for TDoA LoRaWAN localization solution for ultra low power or indoor solution

Features:

• Open Source OpenWrt system
• Managed by Web GUI, SSH via LAN or WiFi
• Emulates 49x LoRa demodulators
• LoRaWAN Gateway
• SX1276 base seperate TX path
• 10 programmable parallel demodulation paths

Applications:

• Smart Buildings & Home Automation
• Logistics and Supply Chain Management
• Smart Metering
• Smart Agriculture
• Smart Cities
• Smart Factory

Specifications:

LoRa Spec:

• 1 x SX1308 + 2 x 1257 LoRa Tranceiver
• 1 x SX1276 LoRa Tranceiver
• 1 x GPS module for LoRa localization

General Specification:

• 10M/100M RJ45 Ports x 2
• 1 x 2.4G WiFi (802.11 bgn)
• 1 x USB host port
• 1 x Mini-PCIe Interface
• Power Input: 12v, 1A

Cellular 4G LTE :

• Quectel EC25 LTE module ( Clink the link to find the right model for your region)
• Micro SIM Slot
• Internal 4G Antenna + External 4G Sticker Antenna.
• Up to 100Mbps downlink and 50Mbps uplink data rates
• Worldwide LTE,UMTS/HSPA+ and GSM/GPRS/EDGE coverage
• MIMO technology meets demands for data rate and link reliability in modem wireless communication systems

LG308-XXX-YYY

XXX: Frequency Band

• 868: For Bands: EU868,IN865
• 915: For Bands: US915,AU915,AS923,KR920

YYY: 4G Cellular Option

• EC25-E: EMEA, Korea, Thailand, India.
• EC25-A: North America/ Rogers/AT&T/T-Mobile.
• EC25-AU: Latin America, New Zeland, Taiwan
• EC25-J: Japan, DOCOMO/SoftBank/ KDDI
