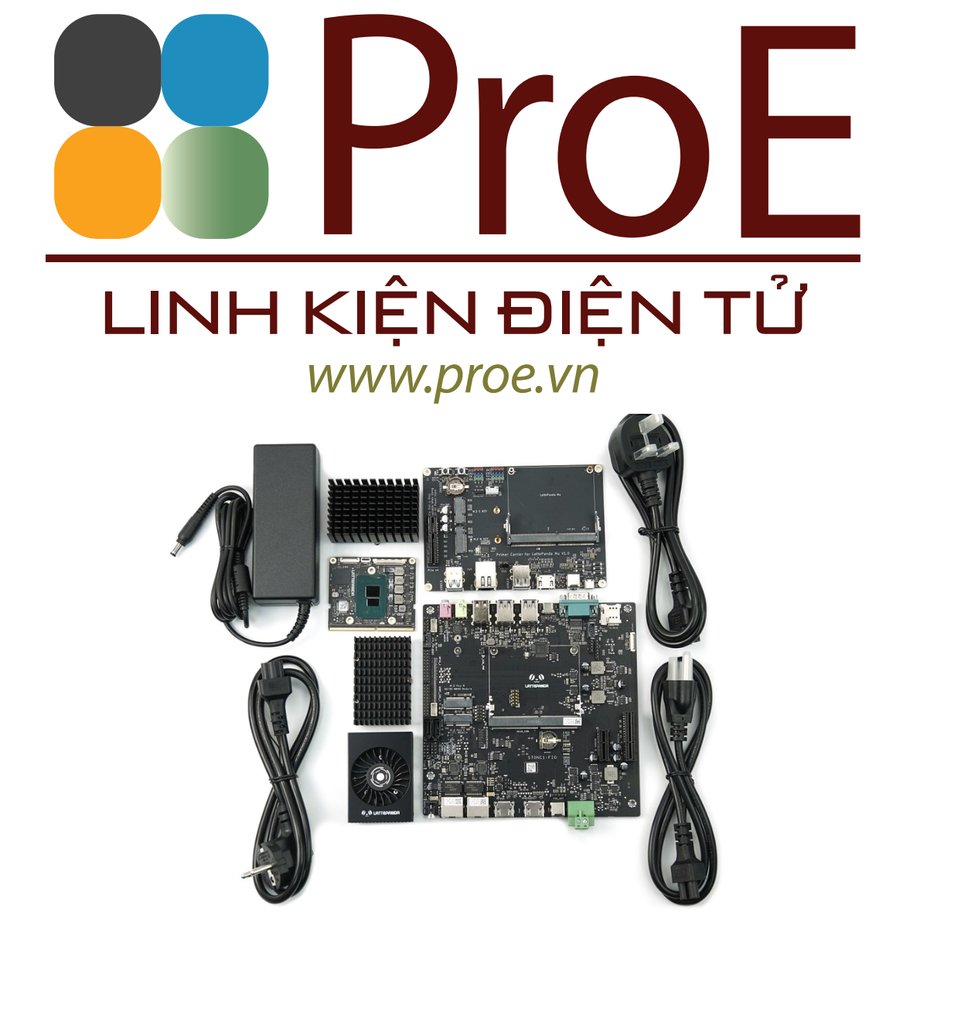

LattePanda Mu Kit

Introduction

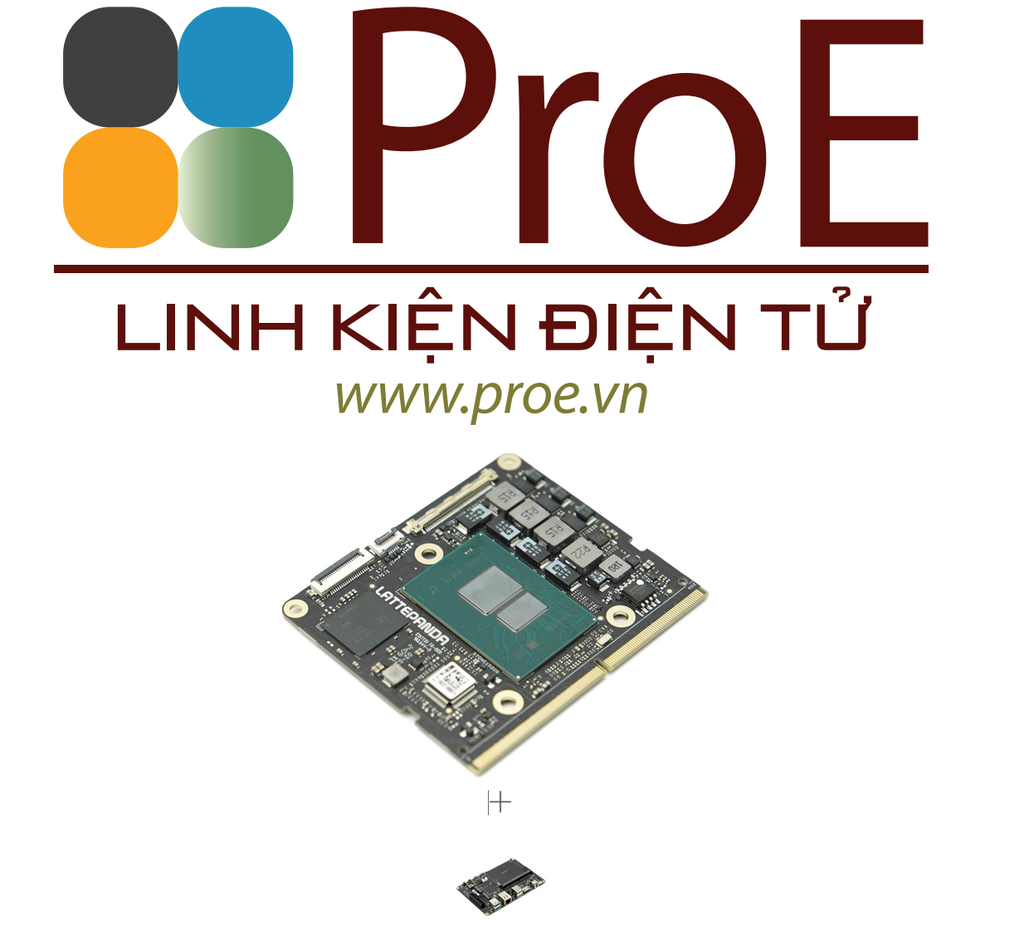

LattePanda Mu is a micro x86 compute module featuring multiple configurations to cater to diverse application needs. It is available in three versions. All versions feature extensive pins, including 3 HDMI/DisplayPort, 8 USB 2.0, up to 4 USB 3.2, and up to 9 PCIe 3.0 lanes. These flexible ports, combined with open-source carrier board files, empower users to design custom carrier boards effortlessly to meet their unique requirements.

Small but Powerful

The LattePanda Mu compute module offers three configurations, enabling customers to select the version that best matches their performance and memory requirements:

N100 Quad-Core Processor

8GB RAM or 16GB RAM versions are available, both equipped with 64GB eMMC storage.

Powered by Intel N100 with up to 3.4GHz turbo frequency, these versions deliver robust multitasking capabilities, making them ideal for general-purpose computing and lightweight applications.

N305 Octa-Core Processor (16GB RAM)

Featuring an Intel N305 processor with enhanced processing power, this version is designed for demanding tasks that require higher computational performance.

Offers an excellent balance between performance and energy efficiency, suitable for applications with more intensive workloads.

Card-Sized

Despite its small size of 69.6mm x 60mm, the pocket size of the LattePanda Mu x86 compute module allows for integration into space-constrained devices, delivering powerful computation without occupying much space.

Flexibility in Performance and Energy

The processor's TDP can be adjusted from 6W to 35W, providing flexibility in power usage and heat output. The 6W setting enables efficient operation with minimal heat and silent passive cooling, while the 35W setting offers robust performance but requires active cooling.

Flexible Expansion Pins

LattePanda Mu exposes extensive pins, such as 3 HDMI/DisplayPort, 8 USB 2.0, up to 4 USB 3.2, 9 PCIe 3.0 lanes, 2 SATA 3.0 and 64 expandable GPIOs. This offers unparalleled flexibility and expandability, allowing you to create the specific solution.

Carrier Boards - Expanding Infinite Possibilities

DFRobot offers a lite carrier board for the LattePanda Mu, providing a comprehensive development platform with various interfaces for swift design verification. Additionally, a full-function evaluation carrier board is available, exposing all pins of the LattePanda Mu for extensive hardware and software testing.

Note: The PCIe slot of the lite carrier is available only when using a 12V power supply.

Making Carrier Simpler and Easier

LattePanda Mu x86 compute module offers open-source carrier board files and libraries as reference materials, enabling you to fine-tune the carrier board design to meet your specific needs, significantly reducing development time.

Multi-System Support

LattePanda Mu x86 computer-on-module supports multiple operating systems, including Windows 10, Windows 11, and Ubuntu, ensuring that there is always one that suits your needs.

Customized Solutions

LattePanda Team offers customized services, including customized carrier boards, boot screens, BIOS functionality, operating systems, etc. If you have any specific requirements, please feel free to contact us at solution@lattepanda.com.

The LattePanda Team is dedicated to providing timely and professional support to meet your customization needs.

Other Accessories You Can Choose in this Kit

19V 90W AC/DC Adapter (Compatible with LattePanda Mu)

The Delta 19V 90W AC/DC Adapter is a versatile, high-quality power adapter with a range of plug types, providing reliable and stable power for various devices, including the LattePanda Mu Carrier.

7'' 1024x600 Touch Display (eDP) for LattePanda Mu / LattePanda Sigma

The Touch Display for LattePanda Sigma is a high-quality, versatile display designed for HMI and portable projects, offering excellent visual effects, wide viewing angles, multi-touch functionality, and seamless integration with the LattePanda Sigma model.

Applications
