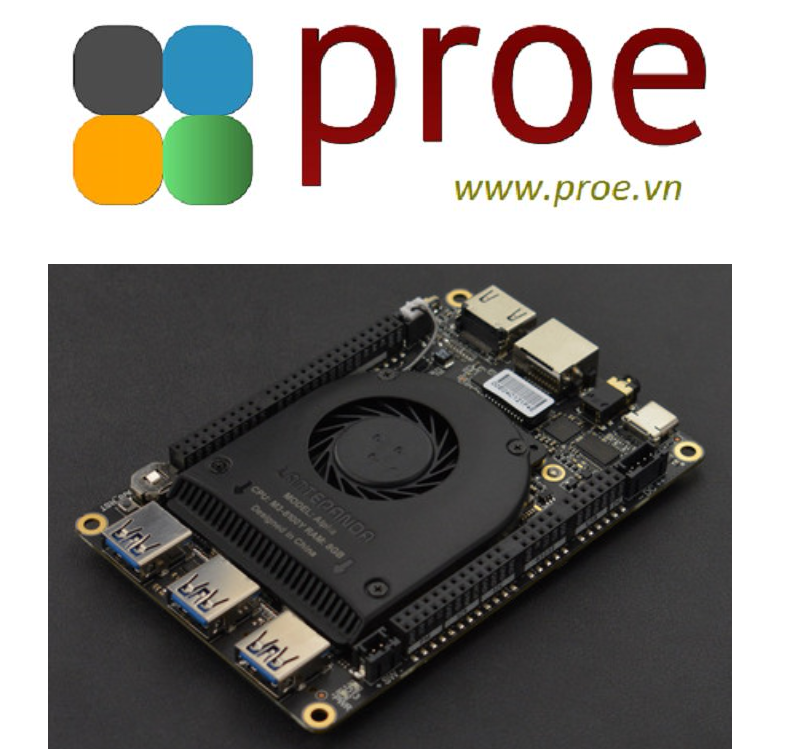

LattePanda Alpha 864s with Titan Case & Streaming Cable

FEATURES

• Solid Spec and Extreme Design
• Dual OS Support – Windows / Linux Both
• Ultimate Networking on Cloud and Things
• Up to 42 Extendable Interfaces bring Rich Playabilities
• Ultra-Thin Design, Minimizing Space Occupation
• Rebuild How to Code Efficiently with Multiple OS

SPECIFICATION

• CPU：Intel 8th m3-8100y
• Core：1.1-3.4GHz Dual-Core，Four-Thread
• Benchmark (PassMark): Up to 4128, double computing power compared with same price range products in the market
• Graphics：Intel HD Graphics 615, 300-900MHz
• RAM：8G LPDDR3
• Memory：64GB eMMC V5.0l
• External Memory：
              1x M.2 M Key, PCIe 4x, Supports NVMe SSD and SATA SSD
              1x M.2 E Key, PCIe 2x，Supports USB2.0, UART, PCM
• Connectivity：
              WIFI 802.11 AC, 2.4G & 5G
              Dual Band Bluetooth 4.2
              Gigabit Ethernet
• USB Ports：
              3x USB 3.0 Type A
              1x USB Type C, supports PD, DP, USB 3.0
• Display：
              HDMI Output
              Type-C DP Support
              Extendable eDP touch displays
• Co-processor：Arduino Leonardo
• GPIO & Other Features：2x 50p GPIOs including I2C, I2S, USB, RS232, UART, RTC，Power Management，Extendable power button，everything you need
• OS Support：
  Windows 10 Pro
  Linux Ubuntu
• Dimension: 115mm * 78mm * 14 mm

DOCUMENTS

• LattePanda Website
• Certifications
• Tutorial: Adjust Cooling Fan

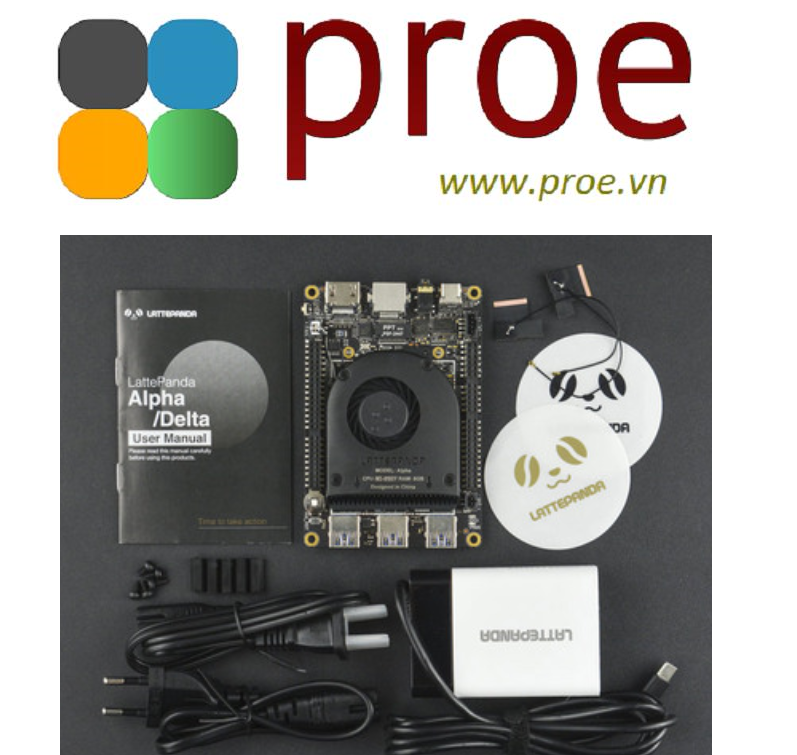

SHIPPING LIST

• LattePanda Alpha 864  x1
• Streaming Cable x1
• Titan case x1
• Free Gift - Active cooling fan x1
• Free Gift - 45w PD Power adapter x1
