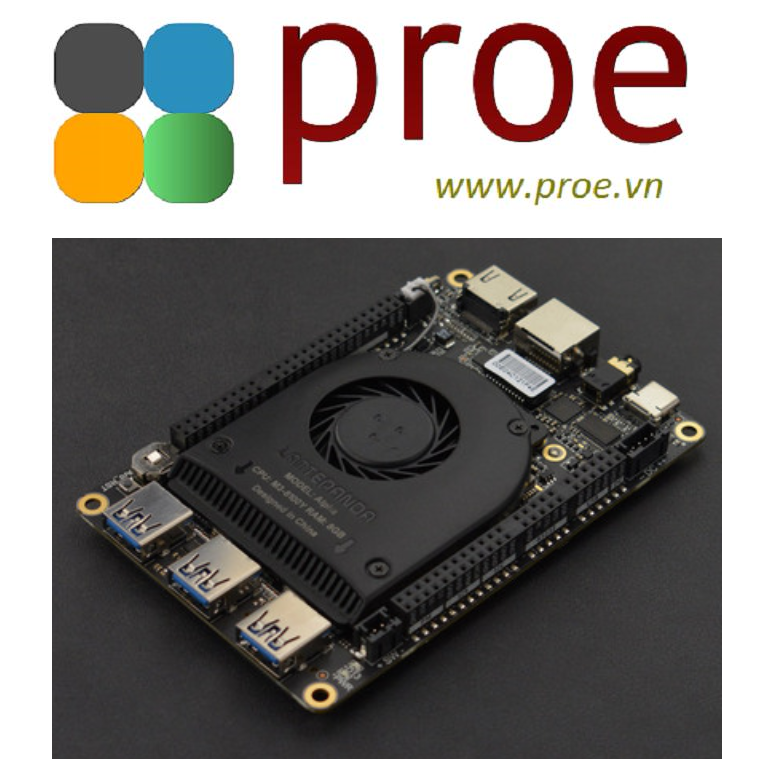

LattePanda Alpha 800s with Titan Case and Streaming Cable

Note: This product inclued LattePanda Alpha 800s, Titan Case and Streaming Cable.

Other Kits:

Latest Updates(2019/02/03):
- Due to Intel's capacity problems, the supply of Alpha's CPU M3-7y30 will face a continuous shortage. To solve the problem, LattePanda team updated its CPU to Intel 8th M3-8100y, correspondingly, Alpha 800 models will be upgraded to Alpha 800s. It will improve the whole performance 30% on the basis of previous 7th M3-7y30 version.



The Core m3 processor is the perfect choice for superior performance and low power consumption. We have shrunken this computing monster from a laptop to the size of a phone.



The Streaming Cable enables your Windows-enabled LattePanda device to act like a USB on a Mac or Linux system. Just plug & play into your Apple/Linux device! The PiP (Picture in Picture) form also eliminates the switching/use of dual mouse and HDMI to connect different systems for seamless interaction of two different systems.




• Solid Spec and Extreme Design
• Dual OS Support – Windows / Linux Both
• Ultimate Networking on Cloud and Things
• Up to 42 Extendable Interfaces bring Rich Playabilities
• Ultra-Thin Design, Minimizing Space Occupation
• Rebuild How to Code Efficiently with Multiple OS

• CPU：Intel 8th m3--8100y
• Core：1.1-3.4GHz Dual-Core，Four-Thread
• Benchmark (PassMark): Up to 4128, double computing power compared with same price range products in the market
• Graphics：Intel HD Graphics 615, 300-900MHz
• RAM：8G LPDDR3
• External Memory：
              1x M.2 M Key, PCIe 4x, Supports NVMe SSD and SATA SSD
              1x M.2 E Key, PCIe 2x，Supports USB2.0, UART, PCM
• Connectivity：
              WIFI 802.11 AC, 2.4G & 5G
              Dual Band Bluetooth 4.2
              Gigabit Ethernet
• USB Ports：
              3x USB 3.0 Type A
              1x USB Type C, supports PD, DP, USB 3.0
• Display：
              HDMI Output
              Type-C DP Support
              Extendable eDP touch displays
• Co-processor：Arduino Leonardo
• GPIO & Other Features：2x 50p GPIOs including I2C, I2S, USB, RS232, UART, RTC，Power Management，Extendable power button，everything you need
• OS Support：
  Windows 10 Pro
  Linux Ubuntu
• Dimension: 115mm * 78mm * 14 mm

• LattePanda Website
• Certifications
• Tutorial: Adjust Cooling Fan

• LattePanda Alpha 800s  x1
• Titan Case for LattePanda Alpha&Delta
• Streaming cable for LattePanda Single Board Computer
• Free Gift - Active cooling fan x1
• Free Gift - 45w PD Power adapter x1
