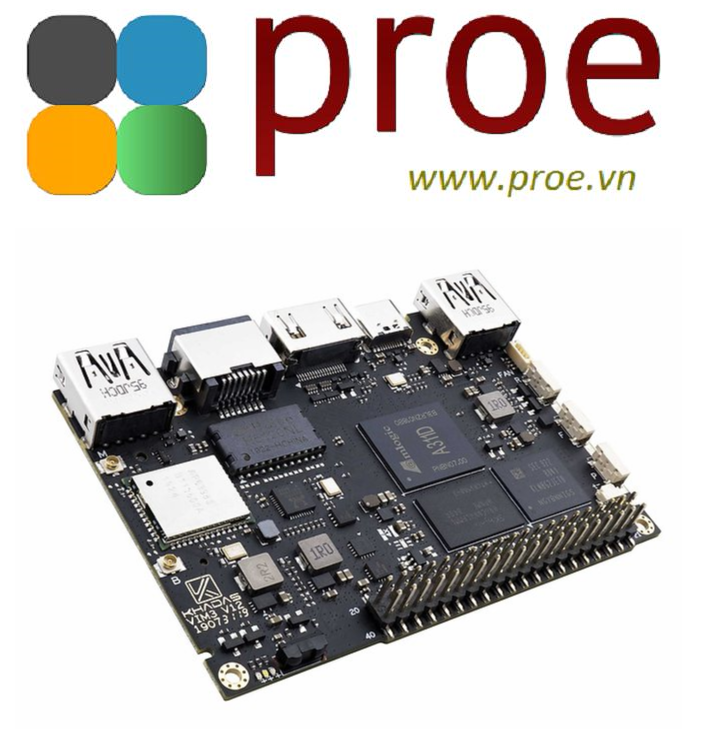

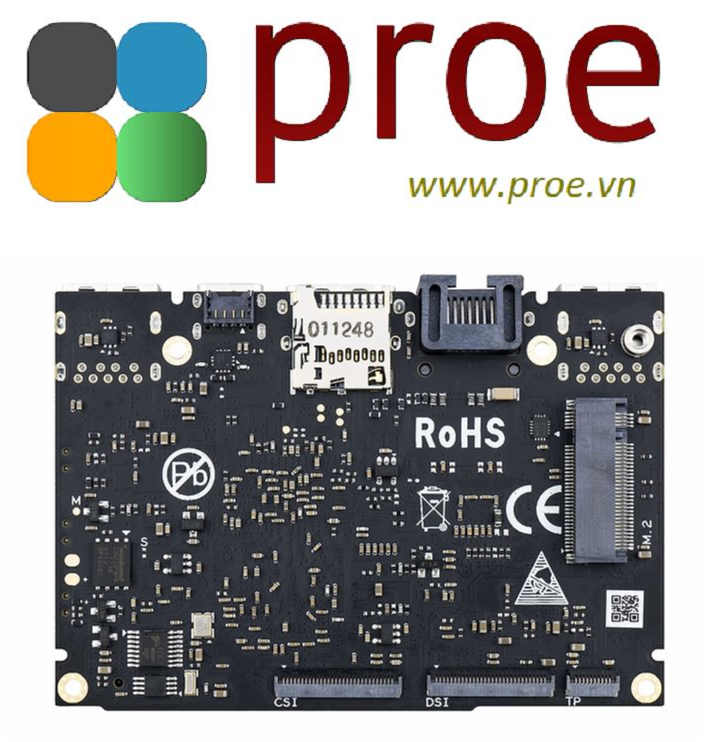

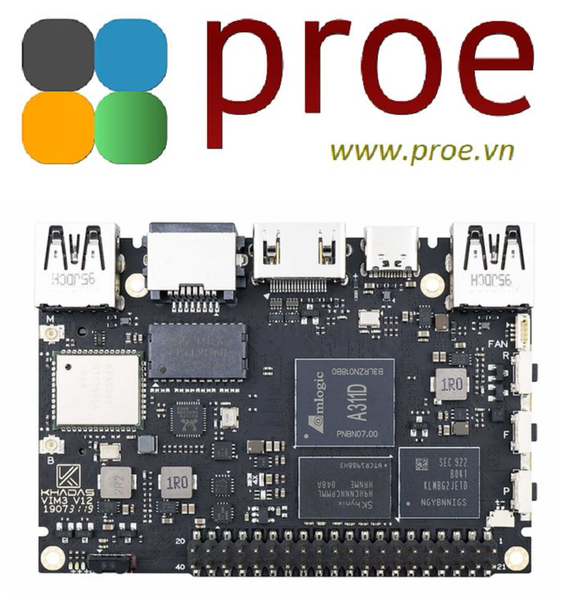

Khadas VIM3 Pro

VIM3 Pro:

• 4GB RAM
• 32GB eMMC.

Key Features:

High Performance:

• Amlogic A311D - x4 2.2Ghz Cortex A73, x2 1.8Ghz Cortex A53
• 12nm SoC fabrication process for low heat
• 2T2R AC Wi-Fi with RSDB Features
• Bluetooth 5.0
• USB 3.0 Available
• Gigabit Ethernet with WOL support
• LPDDR4/X
• USB-C PD for heavy applications

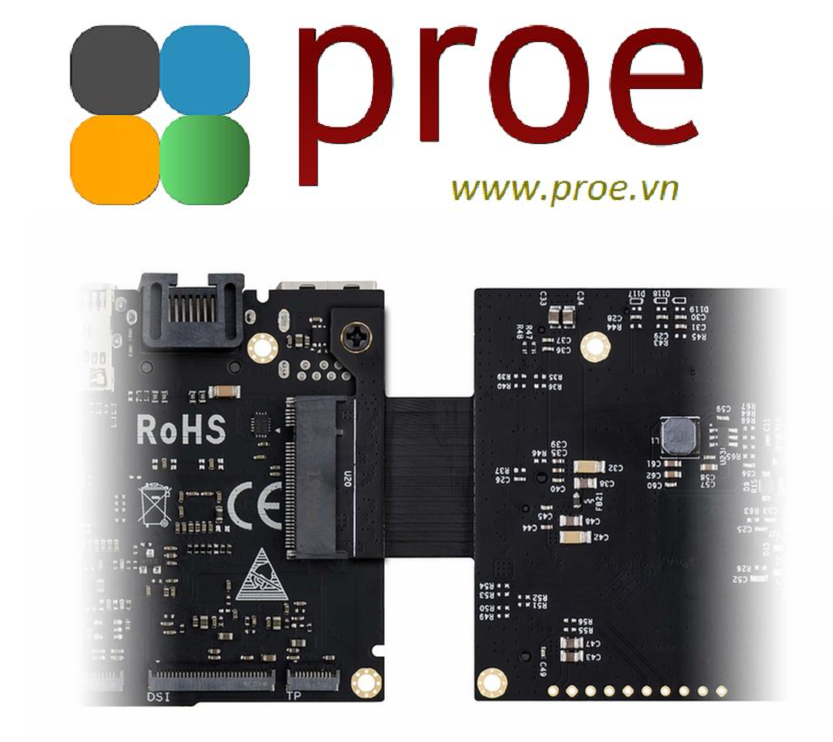

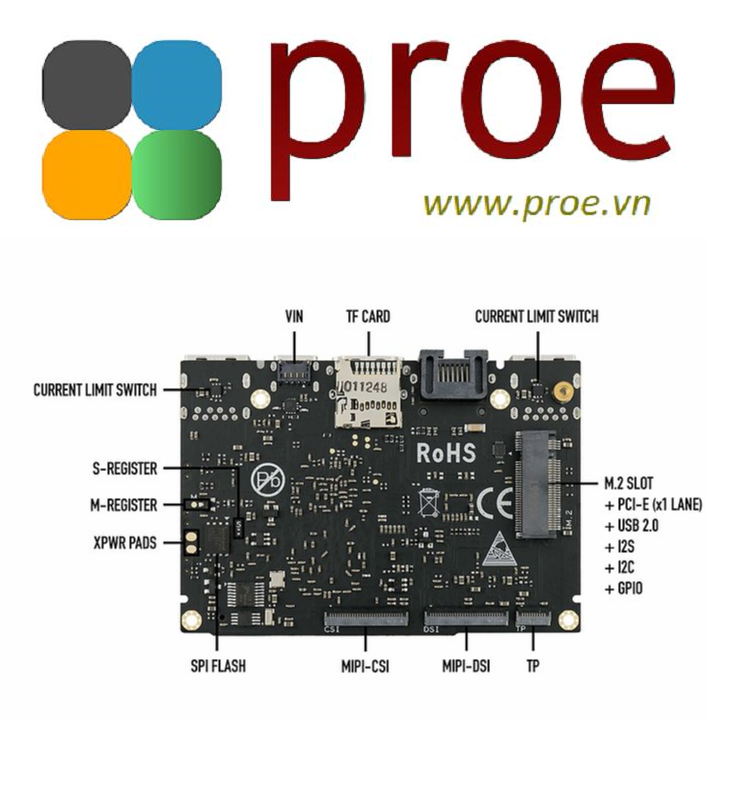

NVMe SSD:

• M.2 Connector

Neural Network Accelerator:

• NPU: Supports a maximum frequency of 800MHz at 5.0 TOPS
• INT8 inference up to 1536 MAC
• Internal L2 cache (512KB) and system workspace buffer (1MB)
• Supports all major deep learning frameworks including TensorFlow and Caffe

Maker Friendly:

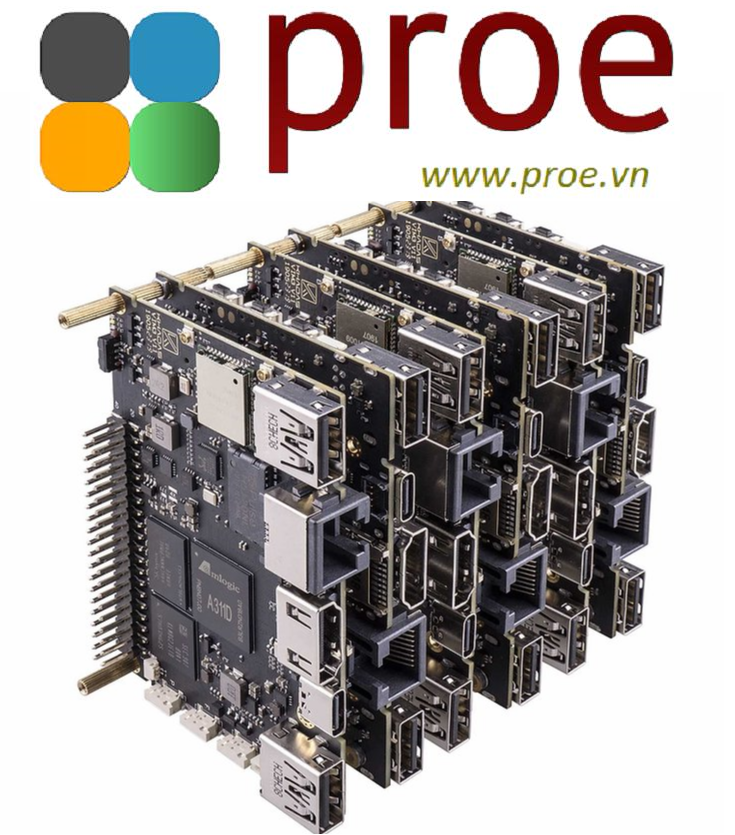

• Stackable Design
• Programmable MCU
• 3 Programmable LEDs (Blue, Red and White)
• XPWR for external Power button
• Onboard SPI Flash
• Khadas TST
• Khadas KBI
• 3D CAD Files

Business Applications

• Dual independent displays with GSensor
• H.264 / H.265 Encoding
• Supports multi-video decoding up to 4Kx2K@60fps+1x1080P@60fps
• VIN Power Input

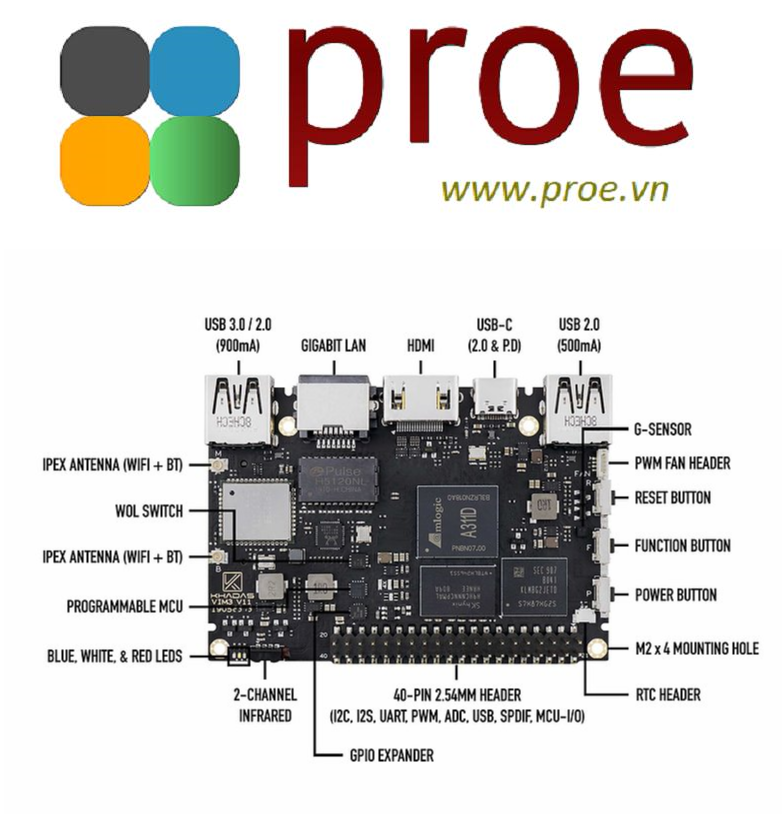

Rich IO:

• 40 Pin GPIO Header (USB, I2C, I2S, UART, ADC etc)
• 8-ch I2S for Microphone Array application (over M.2 Connector)
• MIPI-DSI
• MIPI-CSI
• Designed with GPIO Extender Chip

Compatible Accessories (sold separately):

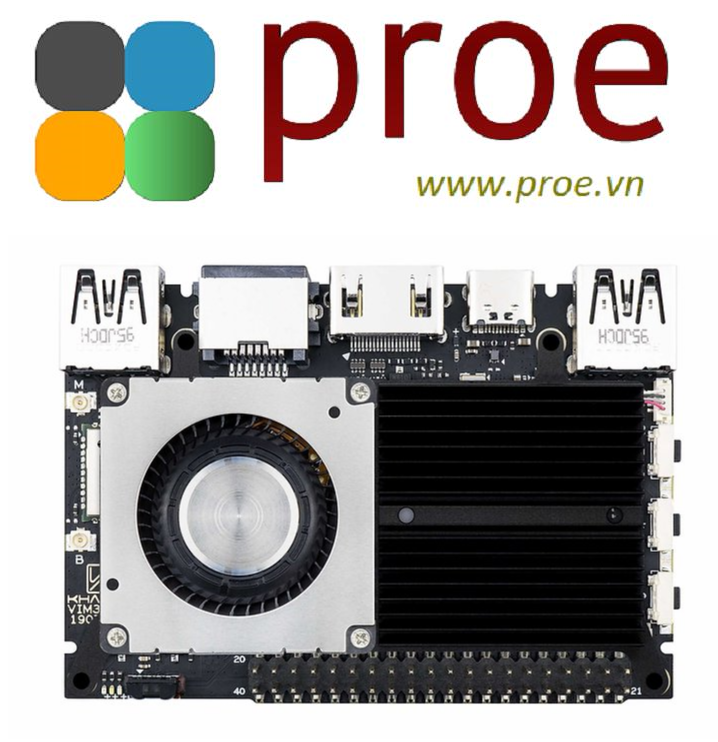

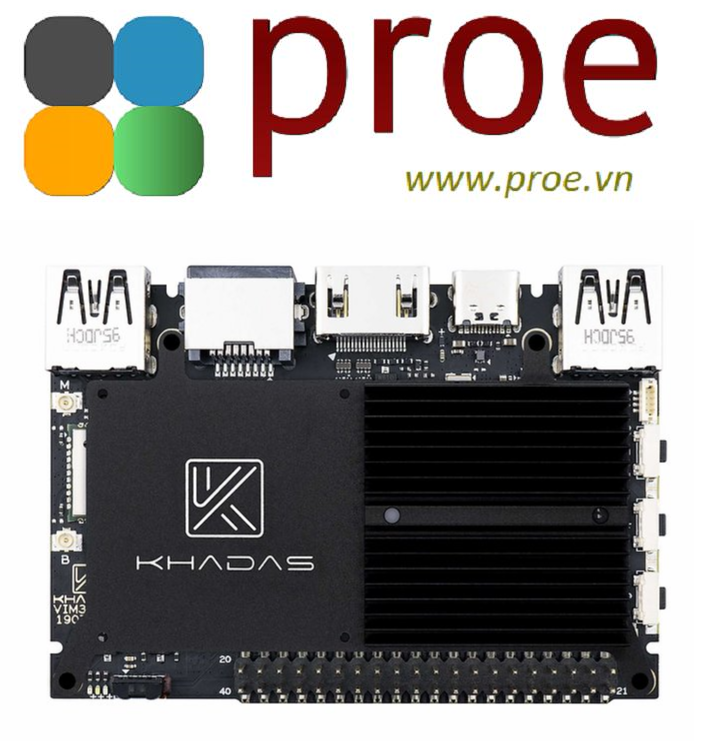

• New VIM Heatsink
• 3705 Cooling Fan

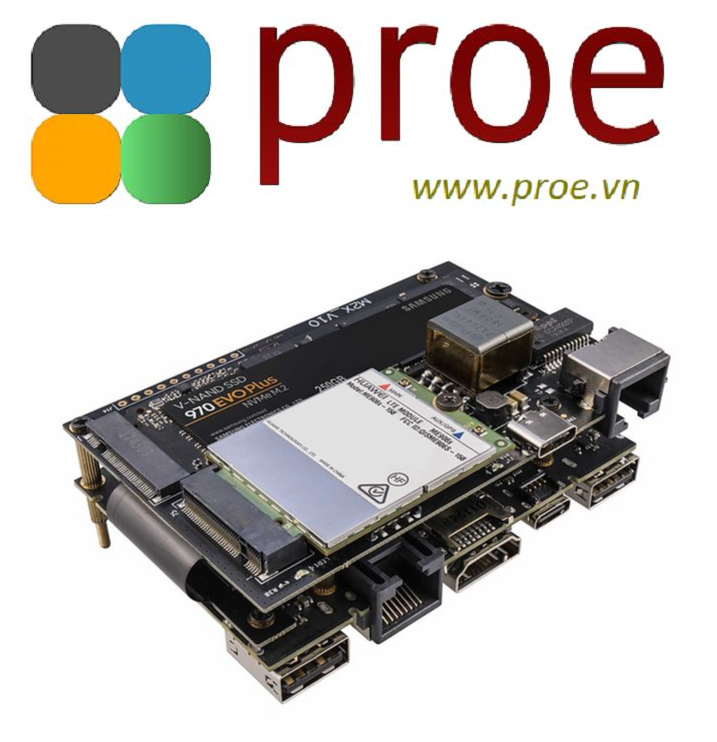

• M2X Extension Board
• TS050 Touchscreen
• Khadas Tone Board
• DIY Case
• IR Remote
• USB-C 24W Adapter (White)
• USB-C Cable (White, Male to male)
• USB 10W Adapter (Black, light workloads only)
• USB-C Cable (Grey 2.0 to Type-C)
• HDMI Cable (19-Pin)

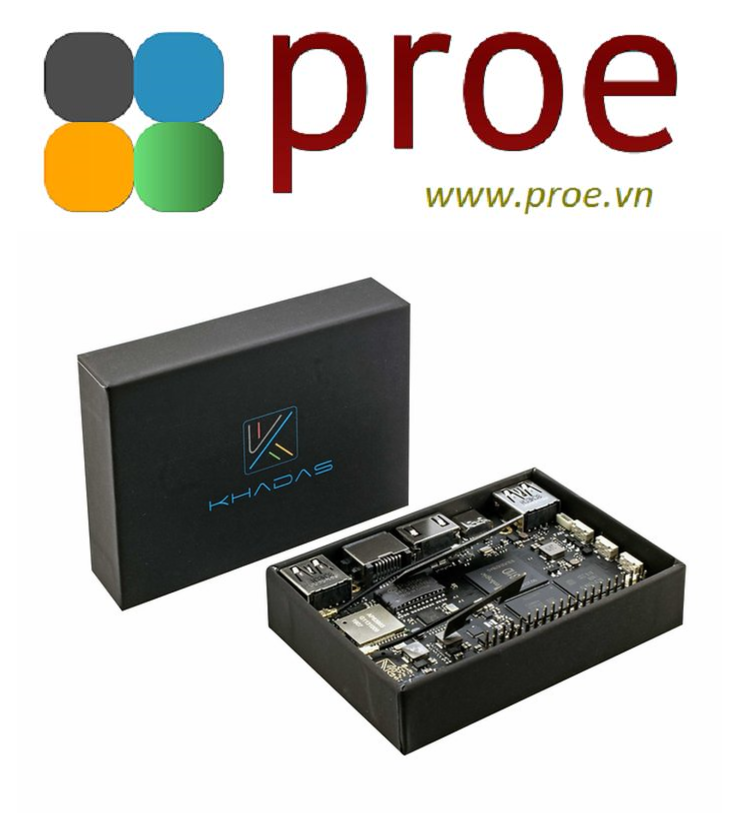

What's in the Box:

• VIM3 Basic / Pro
• Wi-Fi Antenna x2
