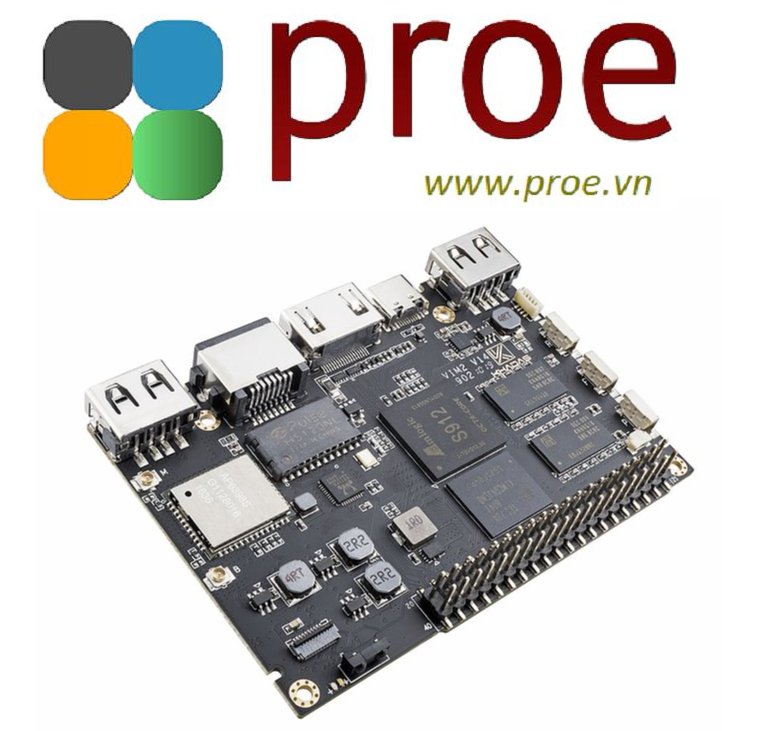

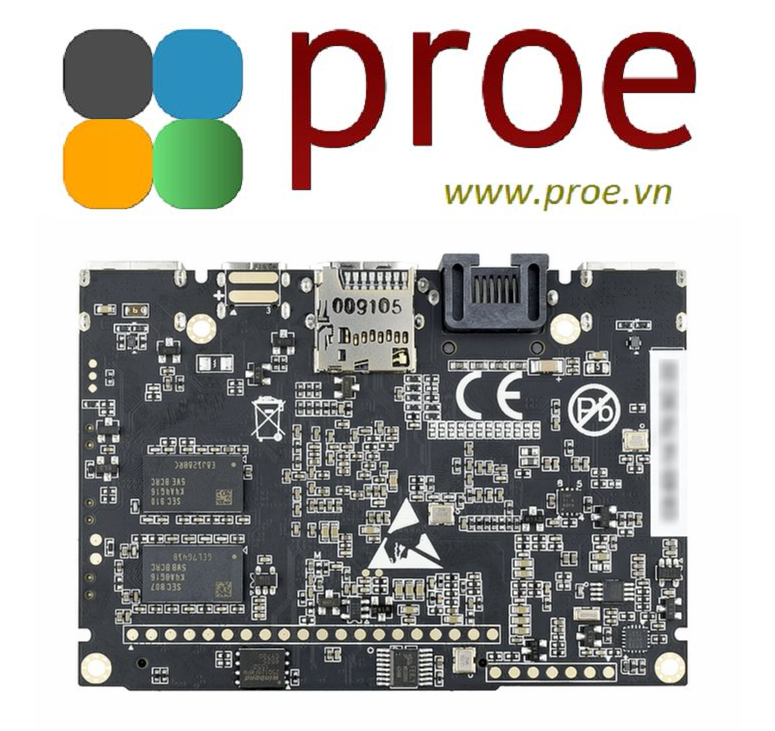

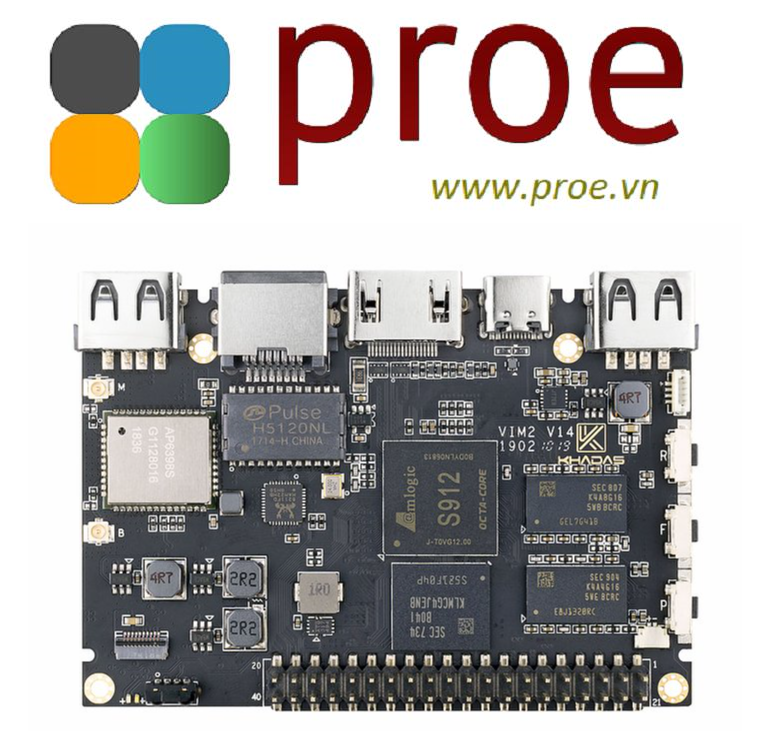

Khadas VIM2 Max

VIM2 v1.4 Max:

• 3GB DDR4
• 64GB EMMC 5.1
• AP6398S Wi-Fi, w/ Bluetooth 5.0

Latest Changes (v1.4):

• AP6398S 802.11ac Wi-Fi (Pro / Max), with Bluetooth 5.0
• Updated fan header to support the 3705 Cooling Fan
• Thinner transformer H5120NL to support the New VIM Heatsink
• Better airflow, and quieter cooling when combined with the DIY Case
• Khadas TST, enter upgrade mode simply by pressing a button
• Refer to this PDF Guide to see all changes from v1.2 to v1.4
• Full specifications can be found on dl.khadas.com.

Wi-Fi Module:

• Pro / Max: AP6398S w/ BT 5.0
• Basic: AP6356S w/ BT 4.1

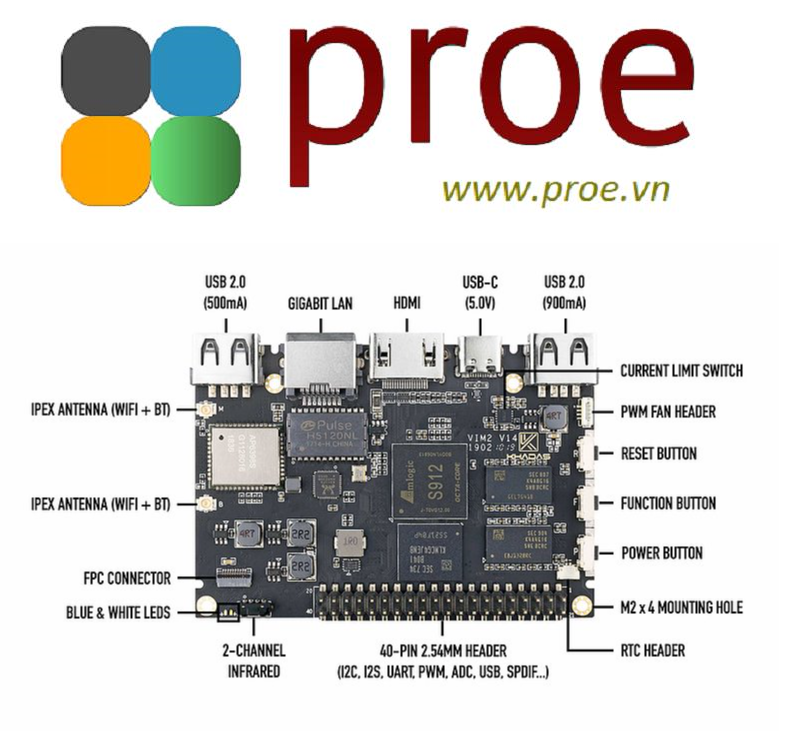

Features:

• Excellent performance: Amlogic S912 1.5GHz 64-bit Octa-Core CPU, T820MP3 GPU, and up to 3GB DDR4 & 64GB eMMC.
• Unlimited connectivity: 2X2 MIMO AP6398S (Pro / Max) 802.11ac Wi-Fi, 5.x Bluetooth, Gbit Lan and a USB-C(2.0) port.
• Advanced Specs: WOL(Wake on Lan) and RSDB Wi-Fi will improve the user experience steps forward.
• Maker friendly: Equipped with 40-pin GPIO header, cooling fan slot and a programmable MCU.
• Multimedia experts: HDMI2.0a and a powerful VPU with 10-bit 4K H.265/VP9@60fps playback support.
• Tiny form factor: Thin and light with a dimensions of credit card.

Multi O/S Supported

• Mainline Linux (Linux 5.0+)
• Ubuntu 18.04+ / Armbian
• Android TV / LibreELEC
• Android Nougat (7.1)
• Google Fuchsia OS

More details at Khadas Website and Documentation.

Compatibility:

• New VIM Heatsink
• 3705 Cooling Fan

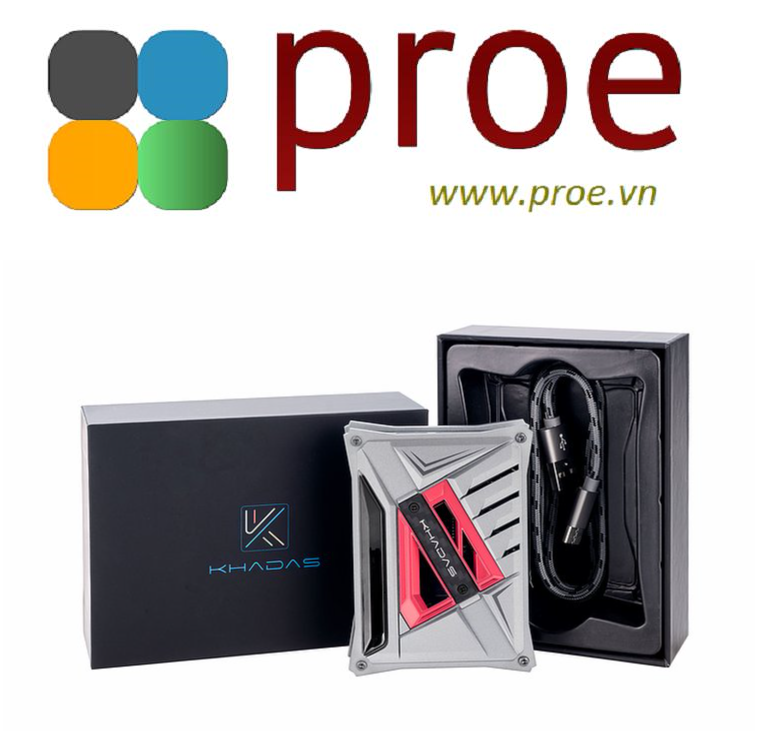

• DIY Case
• Tone Board

Incompatible:

• VIM Heatsink
• 3004 Cooling Fan

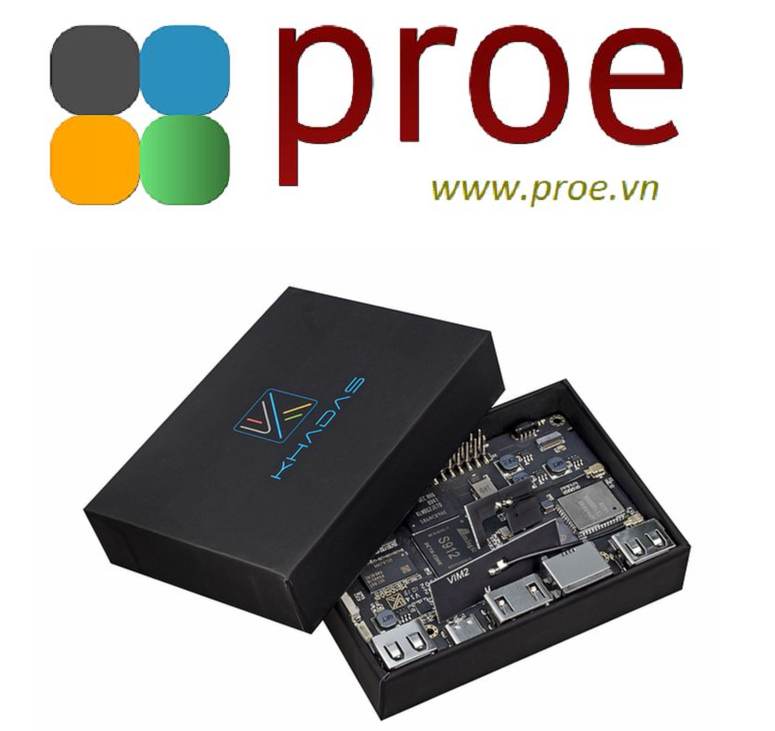

In the Box

• VIM2 v1.4 Board
• Wi-Fi Antenna x2

* USB-C adapter and cable sold separately.
