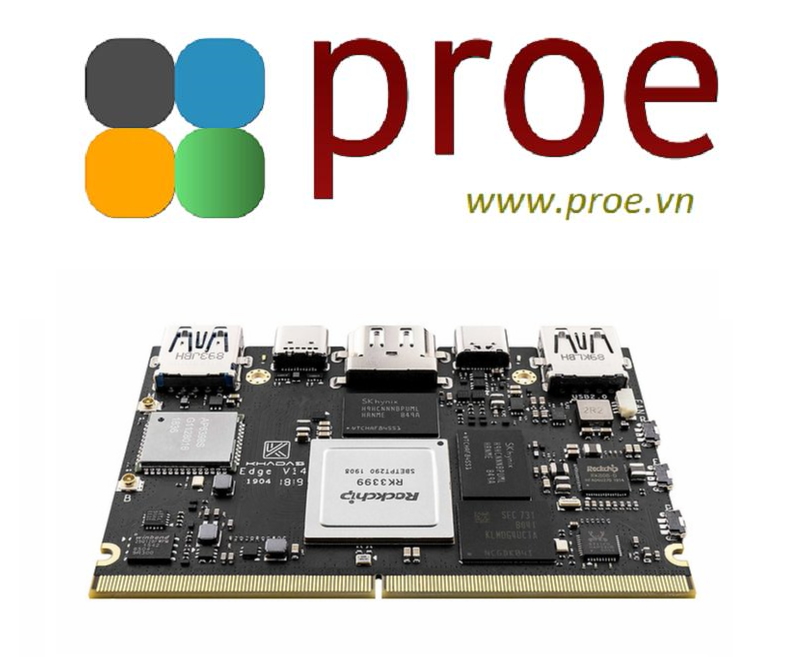

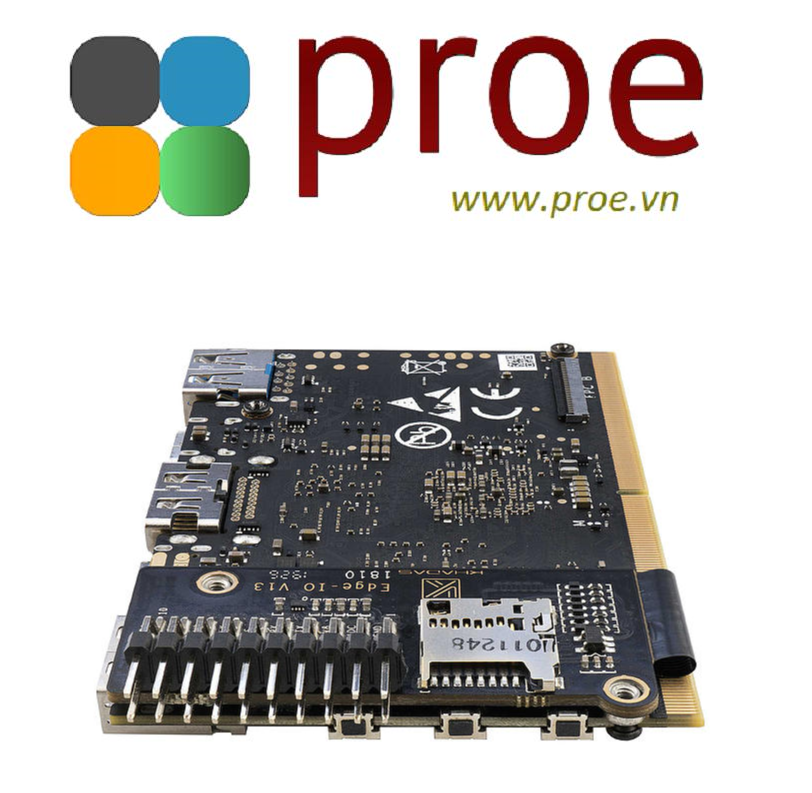

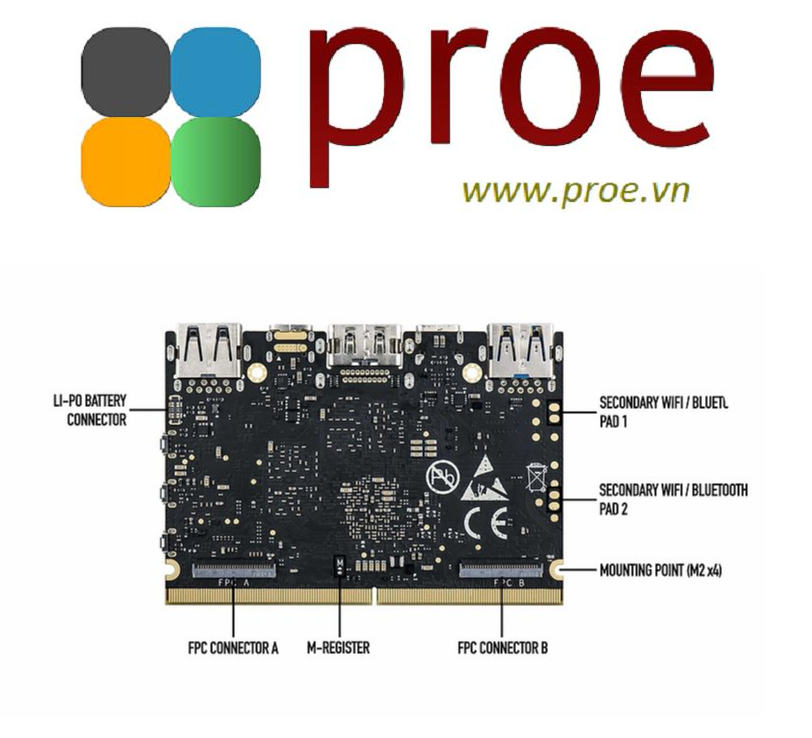

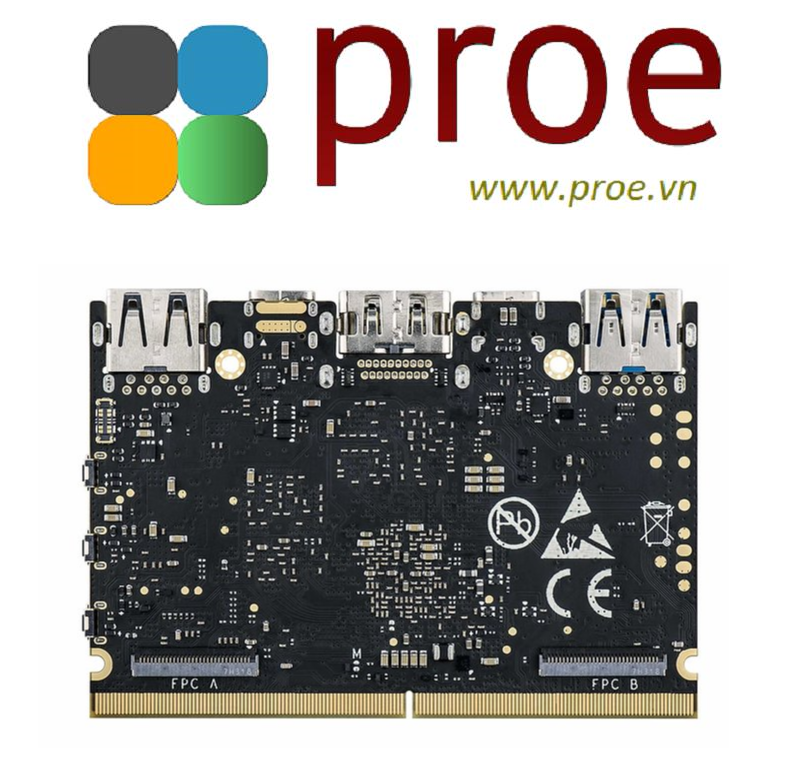

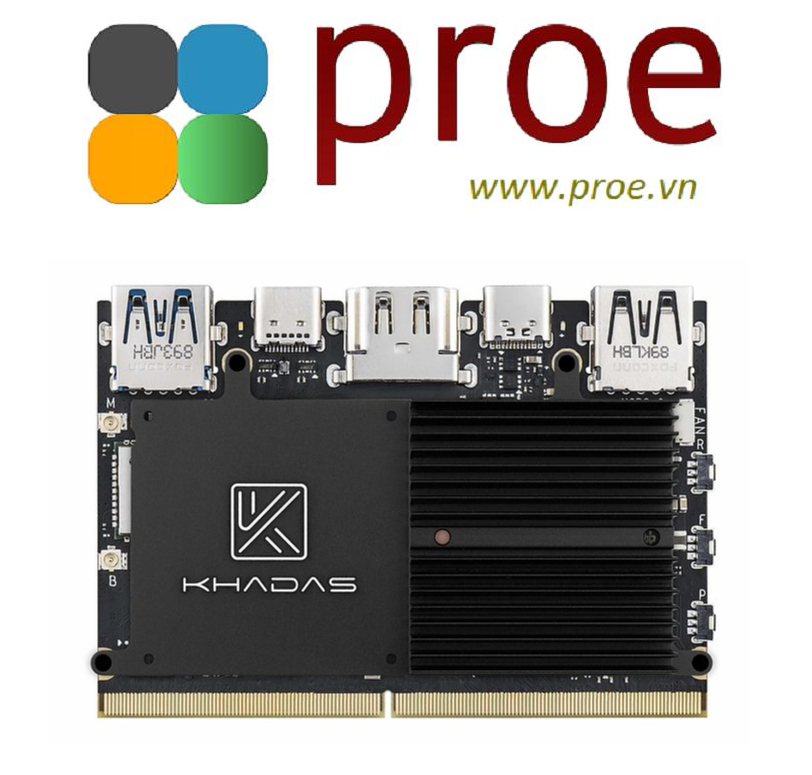

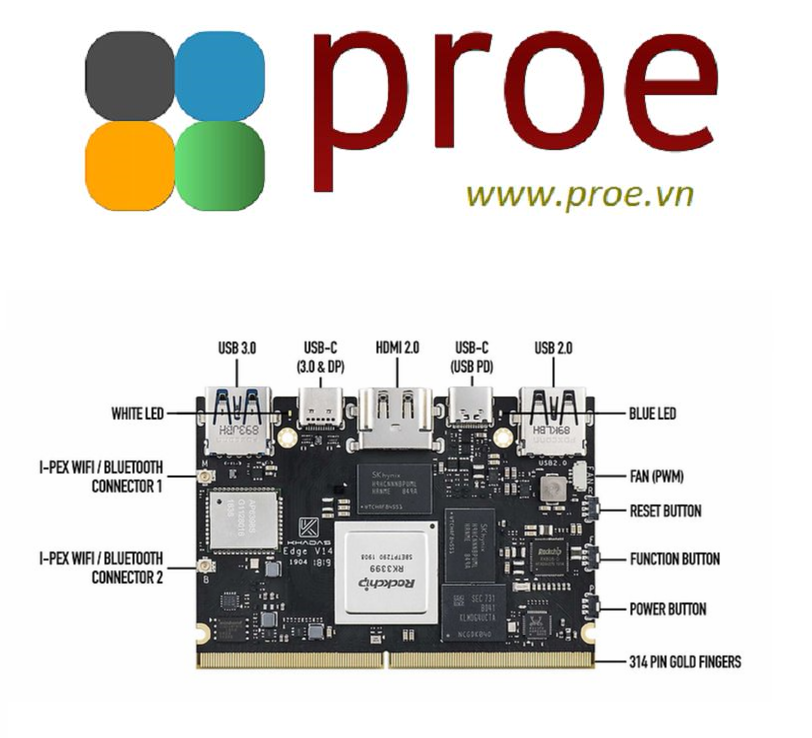

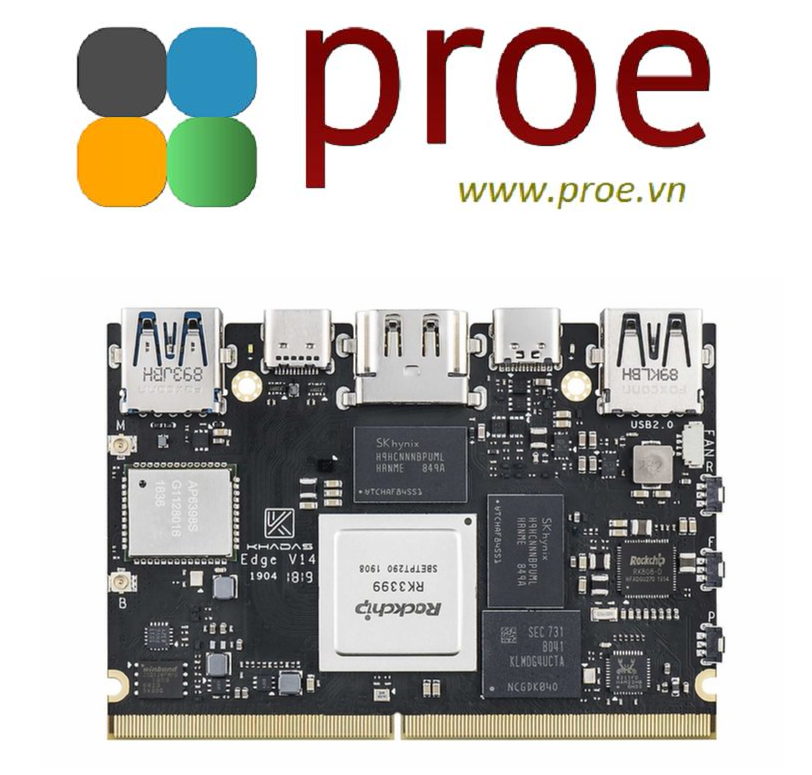

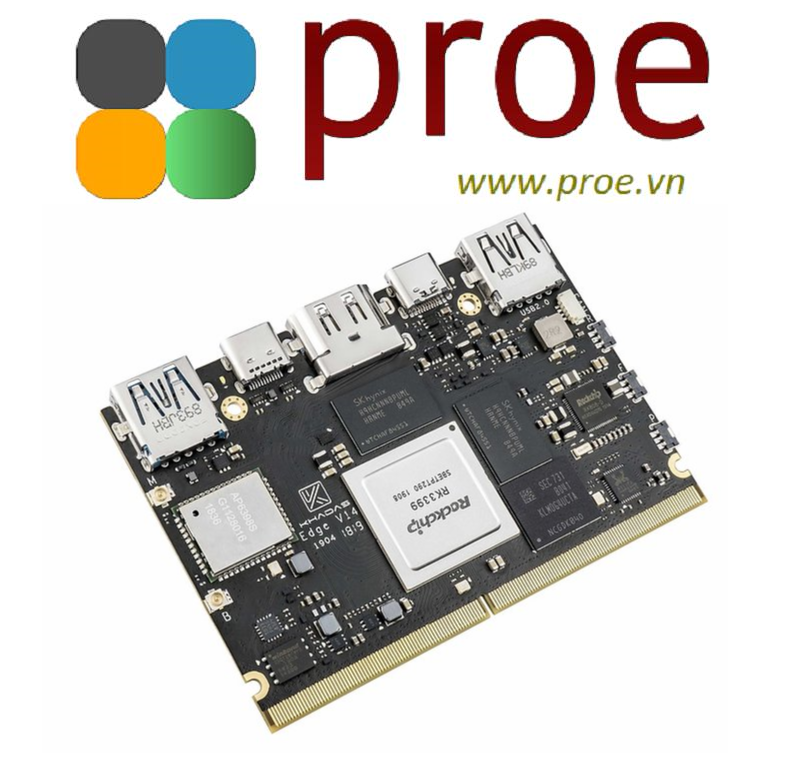

Khadas Edge Pro

Edge Pro:

• 4GB LPDDR4
• 32GB EMMC 5.1
• AP6398S, 802.11a/b/g/n/ac Wi-Fi, 2X2 MIMO with RSDB

Features:

High performance:

• Dual-core Cortex-A72 up to 1.8GHz
• Quad-core Cortex-A53 up to 1.5GHz
• ARM Mali-T860MP4 GPU
• 4K VP9 and 4K 10bits H265/H264 video decoders up to 60fps
• 4GB DDR4 & 128GB eMMC.

Unlimited connectivity:

• 2X2 MIMO 802.11ac Wi-Fi
• 4.x Bluetooth (Basic)
• 5.x Bluetooth (Pro/Max)

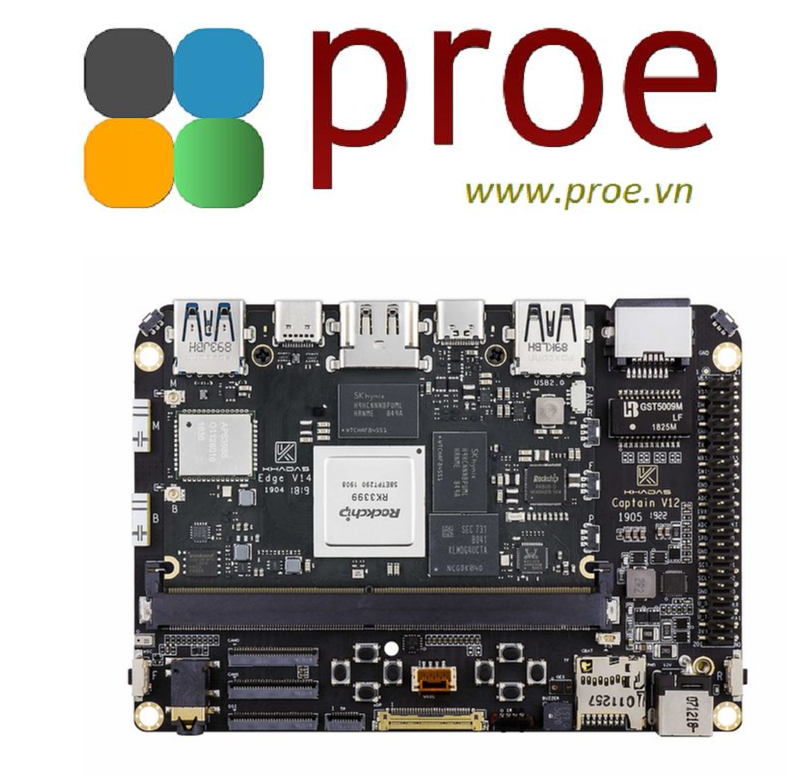

• 10/100/1000 Gbit Lan (w/ Captain Carrier Board)

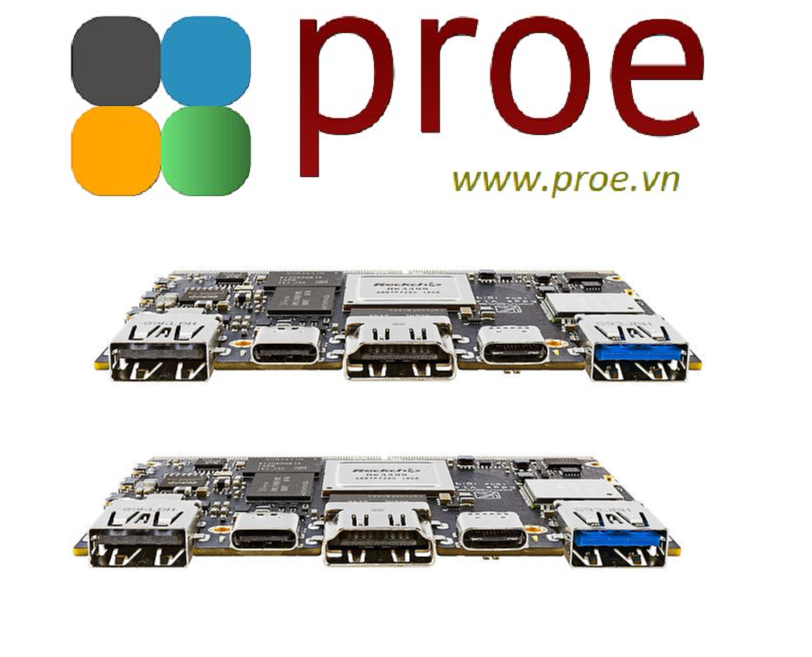

• Dual USB-C ports (3.0 + D.P 1,2, USB P.D)
• Dual USB 2.0 ports
• HDMI 2.0a 4K@60Hz with CEC.

Advanced Specs:

• WOL(Wake on Lan)
• RSDB 802.11ac Wi-Fi

Maker friendly:

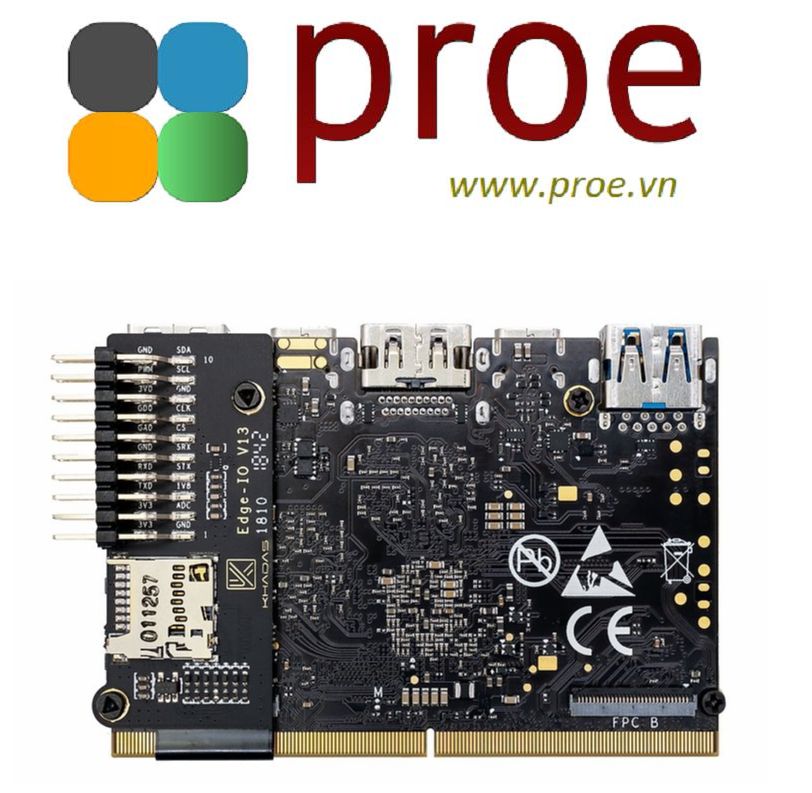

• 40-pin GPIO header

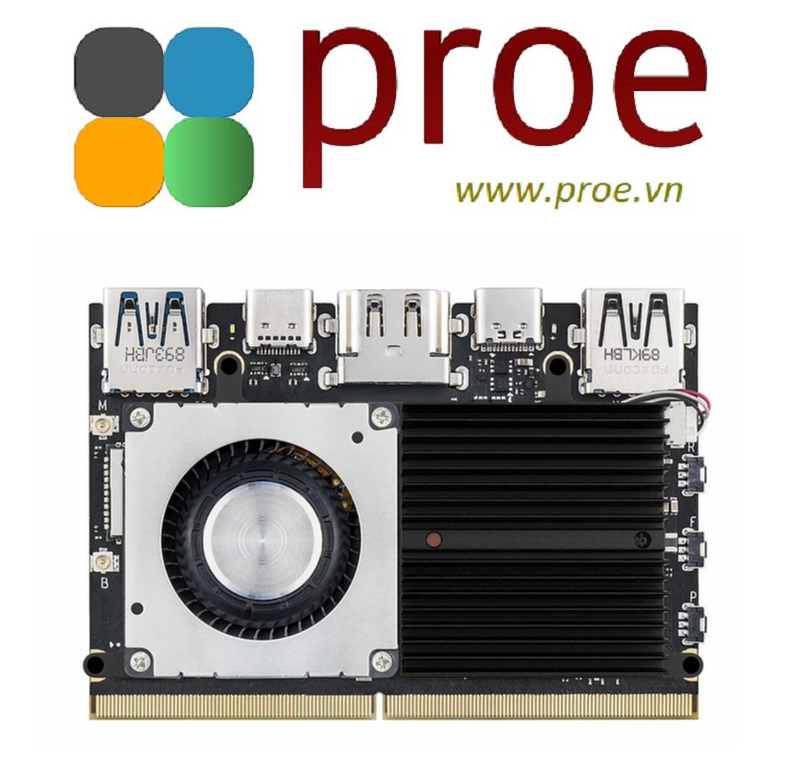

• Cooling fan header
• Programmable MCU with 16mb of SPI-Flash
• Khadas TST (Terry's Smart Tweezers), enter upgrade mode even when bootloader is damaged.
• 3D CAD Files

Multimedia experts:

• HDMI2.0a and a powerful VPU with 10-bit 4K H.265/H264@60fps playback support.
• Support for dual independent displays over USB-C, HDMI, eDP or MIPI.

Tiny form factor:

• Thin and light with a dimensions of credit card.

Power Supply:

• For stable performance, please use the USB-C 24W Adapter with USB Power Delivery.

Multi O/S Supported:

• Android
• Ubuntu
• Debian
• LibreELEC
• Dual OS
• Buildroot
• U-Boot

More details on the Khadas Website & Documentation.

In the Box:

• Edge Board
• Wi-Fi Antenna x2

* USB-C adapter and cable sold separately.
