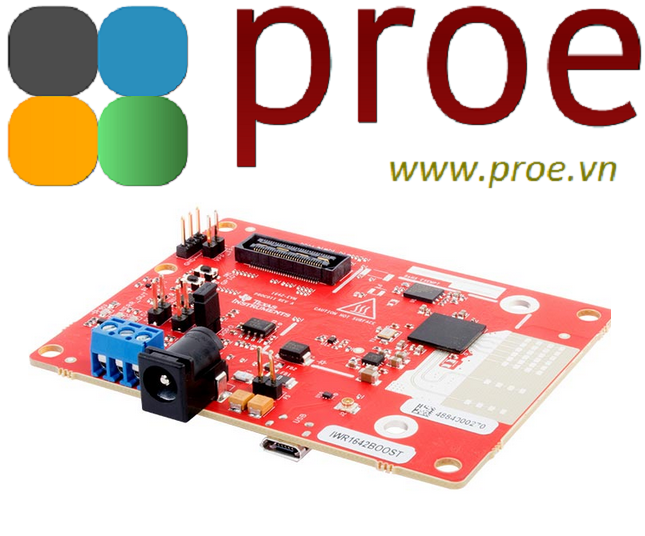

IWR1642BOOST IWR1642 single-chip 76-GHz to 81-GHz mmWave sensor integrating DSP and MCU evaluation module

 Description

IWR1642BOOST is an easy-to-use evaluation board for the IWR1642 mmWave sensor, with direct connectivity to the microcontroller (MCU) LaunchPad™ Development Kit. The BoosterPack™ contains everything required to start developing software for on-chip C67x DSP core and low-power ARM® R4F controllers, including onboard emulation for programming and debugging, as well as onboard buttons and LEDs for quick integration of a simple user interface.

A 5-V 2.5-A supply brick with a 2.1-mm barrel plug (center positive) is not included. TI recommends purchasing an external power supply that complies with applicable regional safety standards.

Features
•    Onboard antenna to enable field testing
•    XDS110-based JTAG with serial port interface for flash programming
•    UART-to-USB interface for control, configuration, and data visualization
•    TI LaunchPad interface to seamlessly connect to TI MCUs
•    CAN connector enables direct interface to car units

What's Included
•    Micro USB cable (#3025010-03)
•    Mounting brackets with Bumpon™ (#36-625-ND, SJ-5012)
•    M3-size screws (#9027A146)
•    M3-size nuts (#90631A007 )
•    Jumpers (#3M9580-ND)
