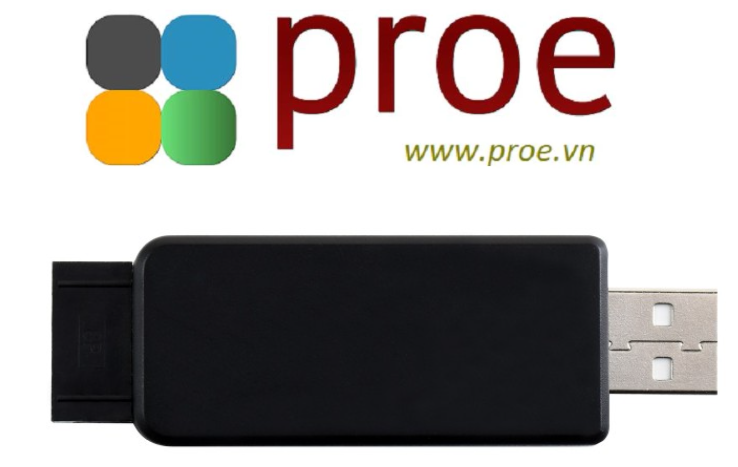

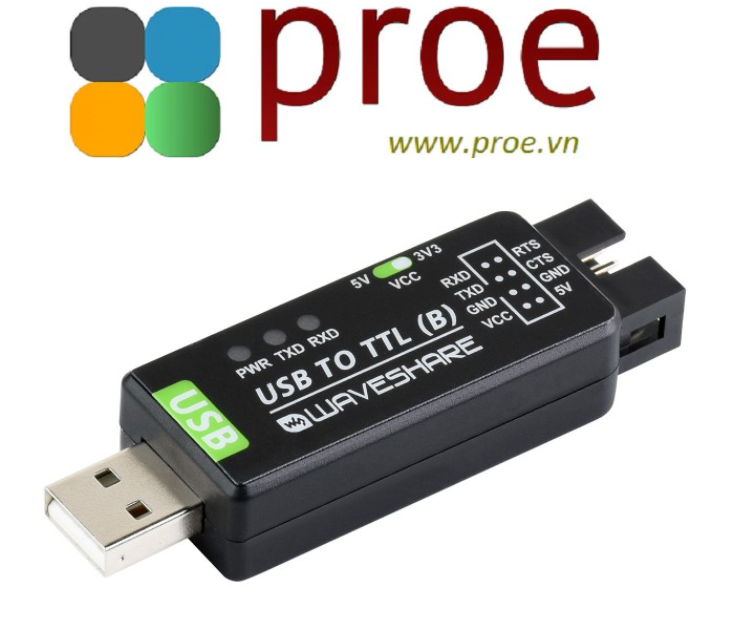

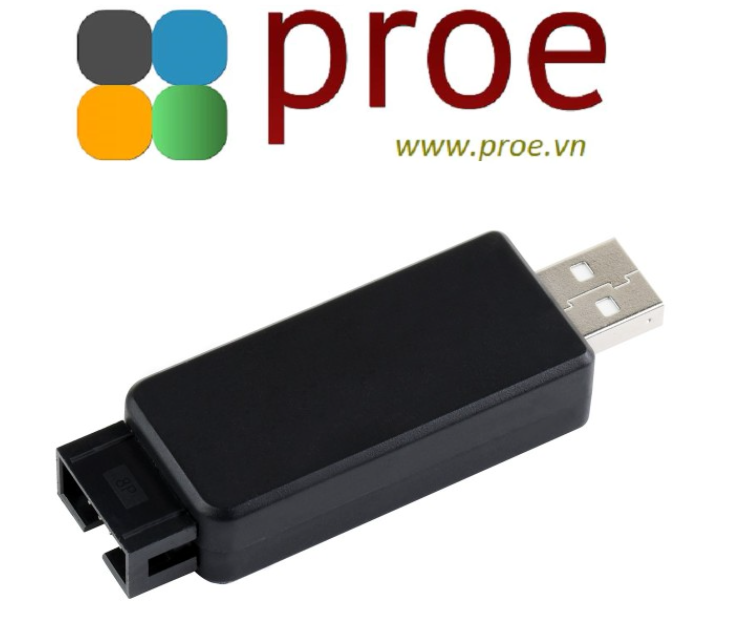

Industrial USB TO TTL Converter, Original CH343G Onboard, Multi Protection & Systems Support
- Mã sản phẩm: USB TO TTL (B)
- Nhà sản xuất: Waveshare
- Website hỗ trợ: https://www.proe.vn
220.000₫
- PACKAGE CONTENT
-
Weight: 0.021 kg
- USB TO TTL (B) x1

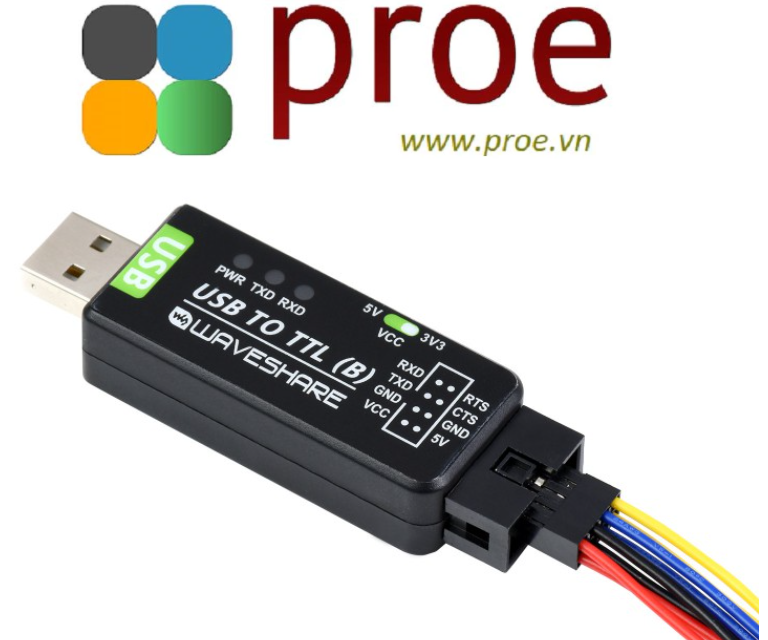

- 8PIN fool-proof wire x1
1
2
Industrial USB TO TTL Converter, Original CH343G Onboard, Multi Protection Circuits, Multi Systems Support
USB TO TTL CONVERTER
Original CH343G | Stable Transmission | Multi Devices | Multi Systems
Industrial Grade Quality
Features At A Glance
- Onboard resettable fuse and TVS diode, providing protections including over-current, over-voltage, backward-proof, and ESD protection, improving shock resistance, safe and stable communications
- Onboard IO protection circuit for surge suppress
- Onboard TTL serial port 3.3V and 5V voltage level switch, allows selecting TTL level
- 3x LED indicators for easily checking power connection and signal TX/RX statuses
- Quality plastic case with dull-polish surface, well-crafted
- IDC connector with fool-proof design
Specifications
| PRODUCT CATEGORY | Industrial USB TO TTL converter | HOST PORT | USB |
|---|---|---|---|
| DATA RATE | 50bps ~ 6Mbps | DEVICE PORT | UART |
| USB PORT | Connector: USB-A Protection: resettable fuse, ESD protection |
||
| UART PORT | Connector: 8PIN fool-proof header Protection: IO protection diode |
||
| INDICATOR | PWR: power indicator, turns red when USB voltage is detected TXD: TX indicator, turns red while the USB port is sending data RXD: RX indicator, turns red while the device port is receiving data |
||
Multiple Protection, Safe And Stable
Onboard Resettable Fuse And TVS Diode, Providing Protections Including Over-Current, Over-Voltage, Backward-Proof, And ESD Protection, Improving Shock Resistance, Safe And Stable Communications
Multiple Systems Support
Compatible With Popular Systems Like Win7/8/8.1/10/11, Mac, Linux, Android...
Three LED Indicators
Easily Checking The Operating Status, Convenient For Programming / Debugging

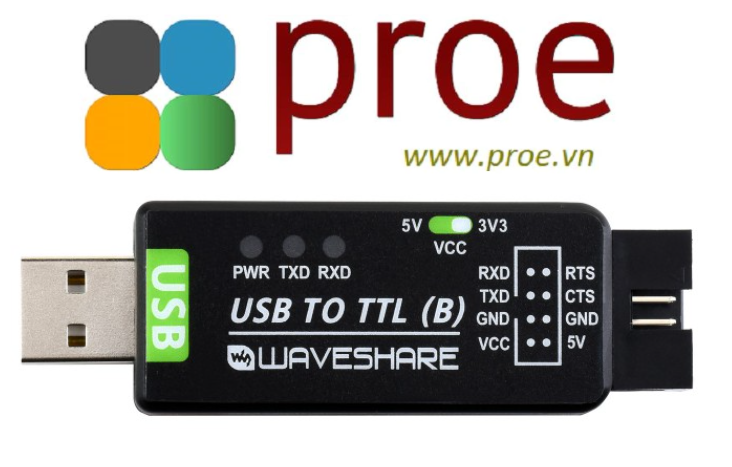

USB Signal & Pinouts Definition
| 5V | 5V output |
|---|---|
| VCC | 3.3V or 5V output, configured by switch |
| GND | Ground |
| TXD | Connecting to MCU.RX |
| RXD | Connecting to MCU.TX |
| RTS | Connecting to MCU.CTS |
| CTS | Connecting to MCU.RTS |
Outline Dimensions
Resources & Services
Wiki: USB_TO_TTL_(B)
Selection Guide
| PARTNUMBER | USB TO TTL | USB TO TTL (B) |
|---|---|---|
| CHIP | FT232 | CH343G |
| DATA RATE | 300bps ~ 3Mbps | 50bps ~ 6Mbps |
| HARDWARE FLOW | supported | |
| OS SUPPORT | Win7/8/8.1/10/11, Mac, Linux, Android, WinCE | Win7/8/8.1/10/11, Mac, Linux, Android |
| USB PORT | Connector: USB-A Protection: resettable fuse, ESD protection |
|
| UART PORT | Connector: 8PIN fool-proof header Protection: IO protection diode |
|
| INDICATORS | PWR: power indicator, turns red when USB voltage is detected TXD: TX indicator, turns red while the USB port is sending data RXD: RX indicator, turns red while the device port is receiving data |
|
