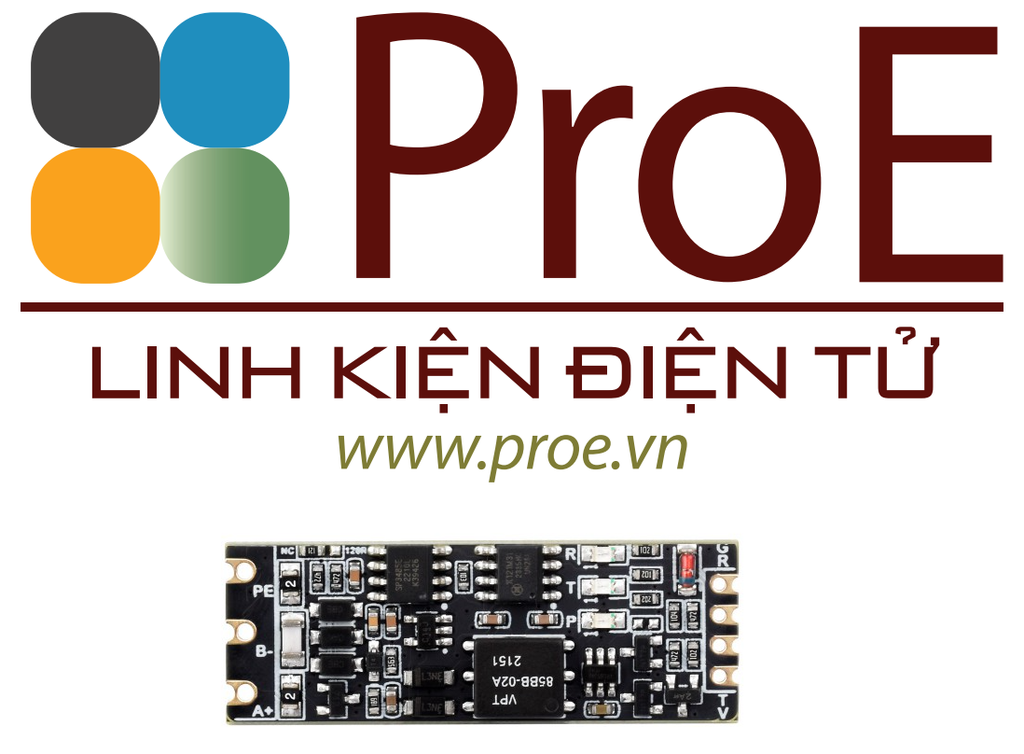

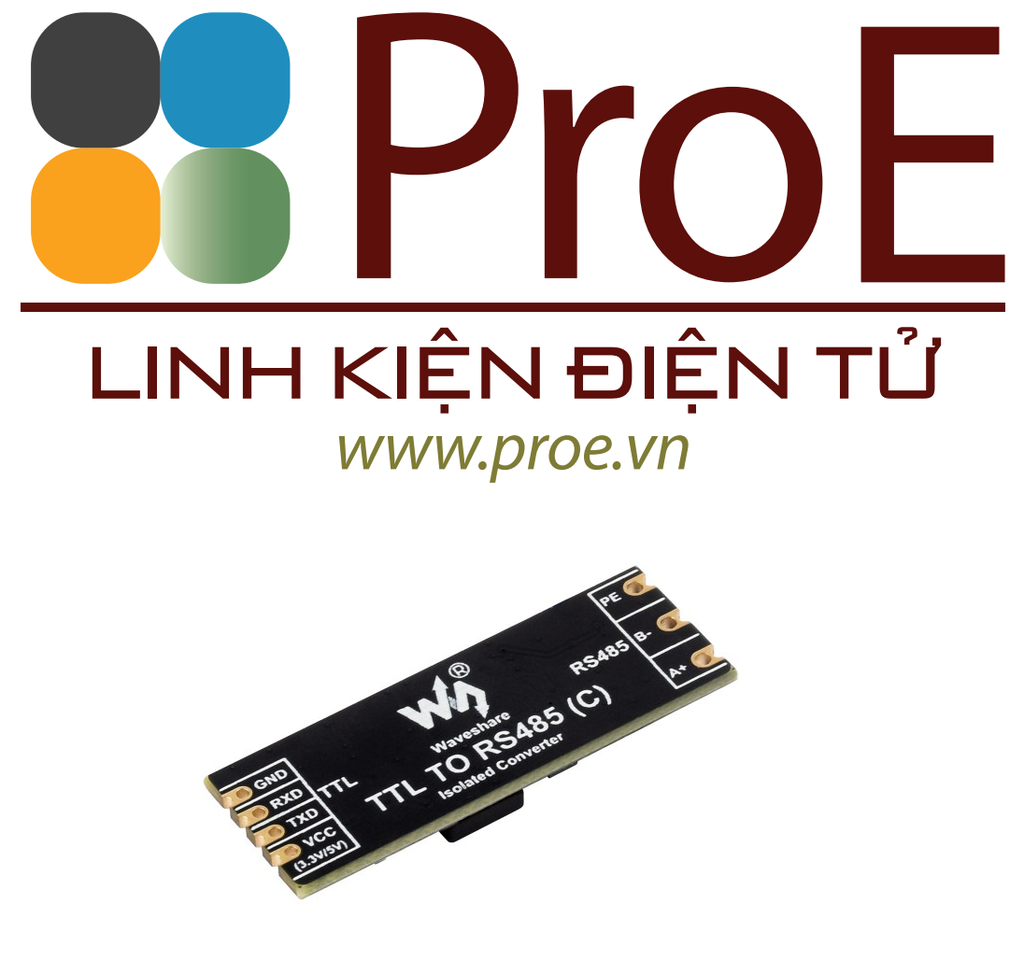

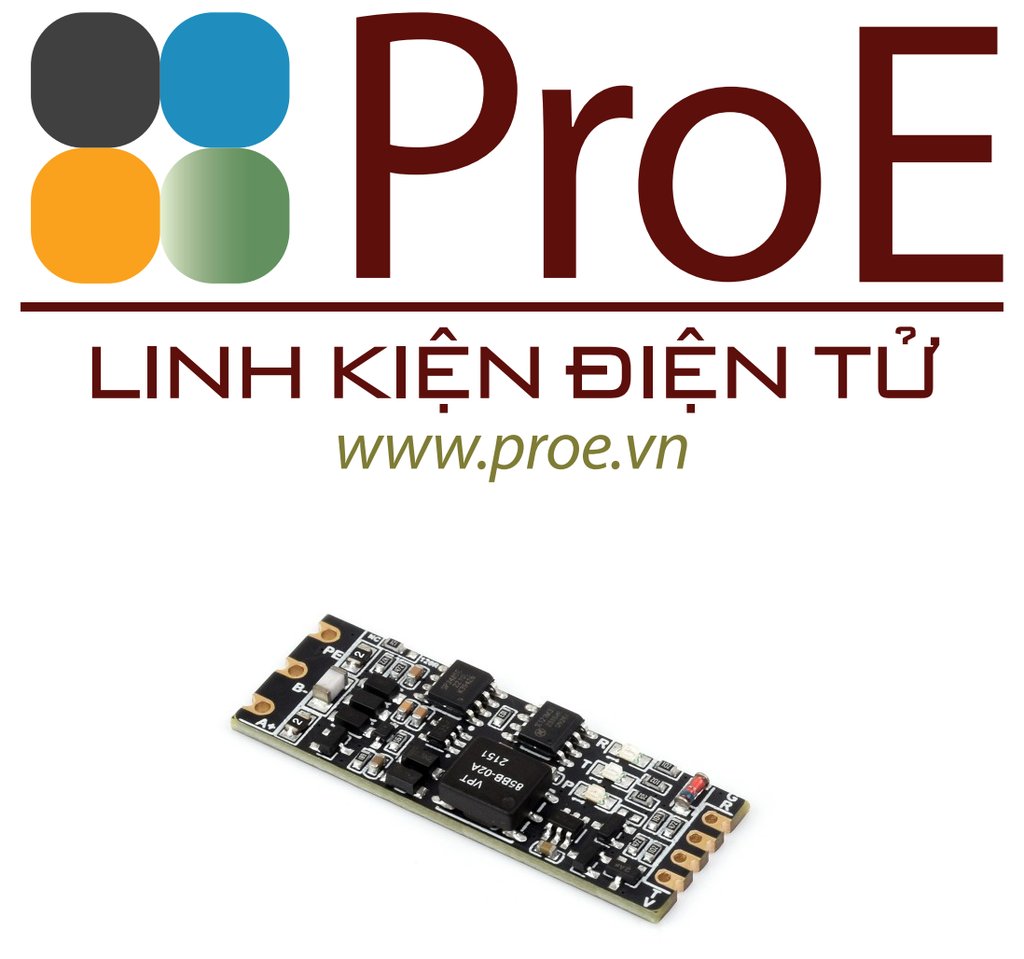

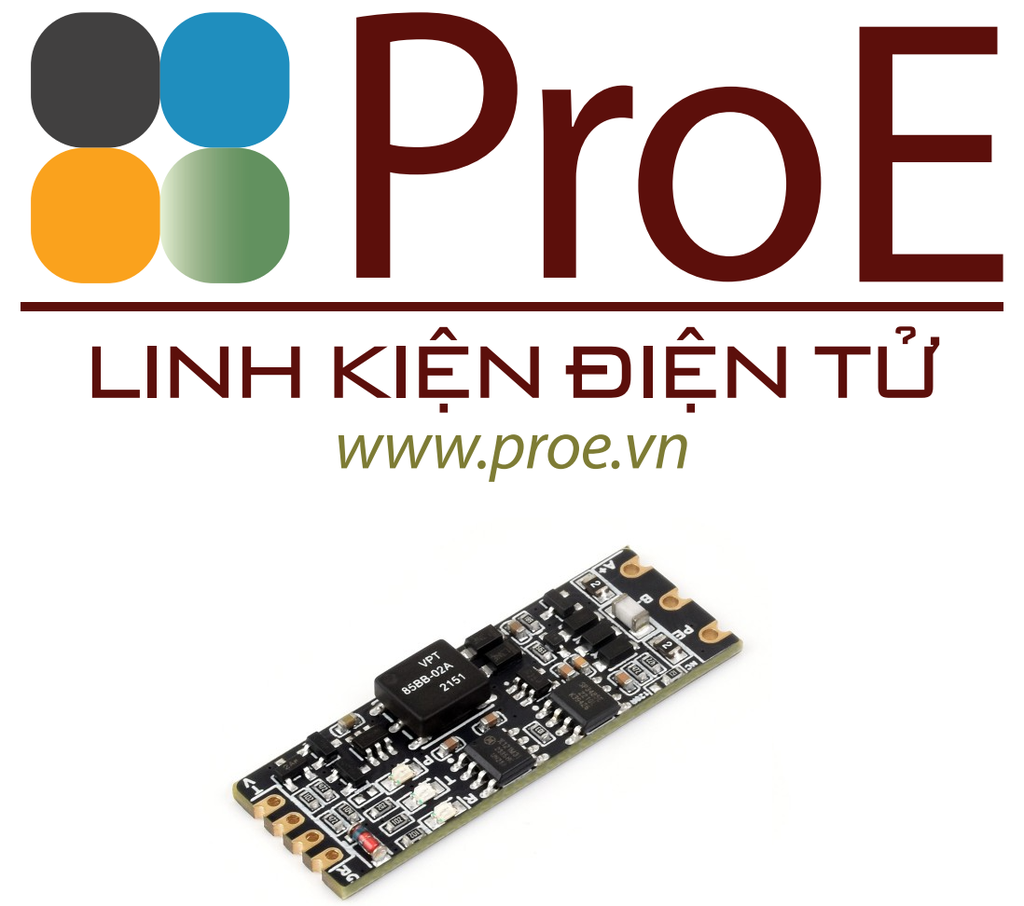

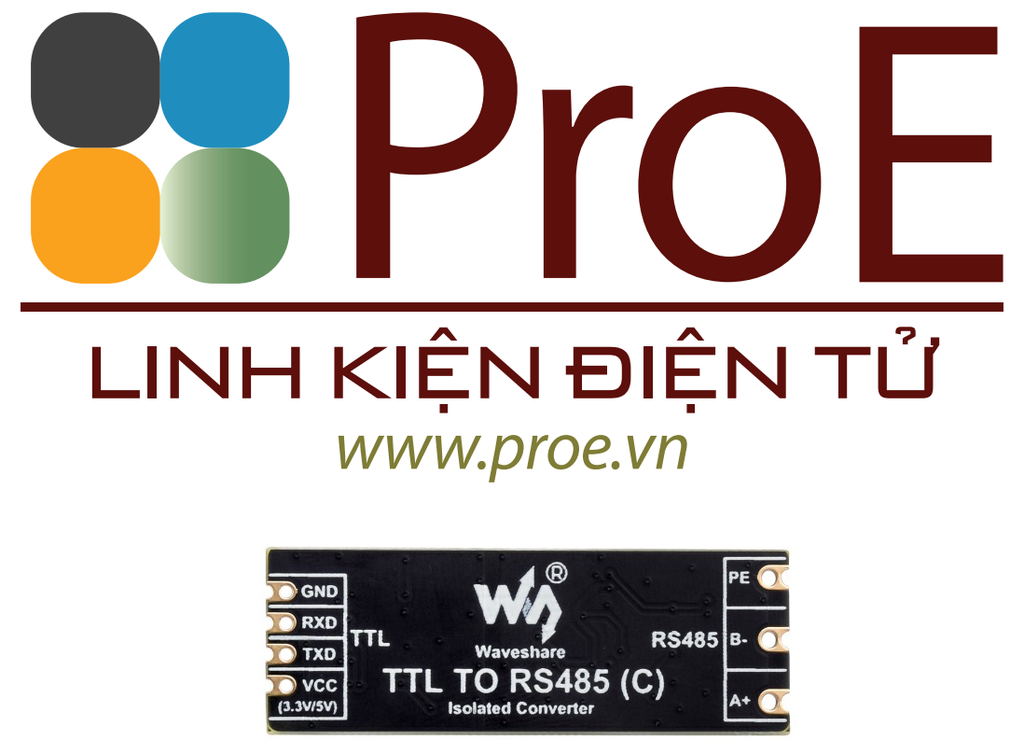

TTL TO RS485 (C)

Castellated Holes With Immersion Gold process, Compact size, Easy to integrate

Converting the TTL signal into balanced differential RS485 signal
for interface converting, expanding nodes and long-distance communication

Onboard power and signal isolation, provide stable isolated voltage, high reliability and strong anti-interference. Onboard Lightningproof Diodes and TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage protection, improves shock proof performance

Castellated Holes With Immersion Gold Design, Highly Integrated Packaging
Supports Multiple Ways To Be Embedded Into Various Product Applications



TTL convert to RS485, point-to-point, half-duplex communication, suitable for interface conversion

TTL convert to RS485, point-to-multipoint, half-duplex communication, suitable for expanding nodes

Two groups TTL To RS485 conversion, point-to-point, half-duplex communication, suitable for extending the communication distance of TTL
