Industrial USB TO TTL (D) Serial Cable, Original FT232RNL Chip, Multi Protection Circuits, Multi Systems Support, Suitable For Raspberry Pi 5 Serial Port Debugging
- Mã sản phẩm: USB TO TTL (D)
- Nhà sản xuất: Waveshare
- Website hỗ trợ: https://www.proe.vn
Liên hệ
Wiki: www.waveshare.com/wiki/USB_TO_TTL_(D)
PACKAGE CONTENT
Weight: 0.047 kg
USB TO TTL (D) x1
DESCRIPTION
Industrial USB TO TTL (D) Serial Cable, Original FT232RNL Chip, Multi Protection Circuits, Multi Systems Support, With Separated 4pin Header + SH1.0 3PIN Connector, Suitable For Raspberry Pi 5 Serial Port Debugging

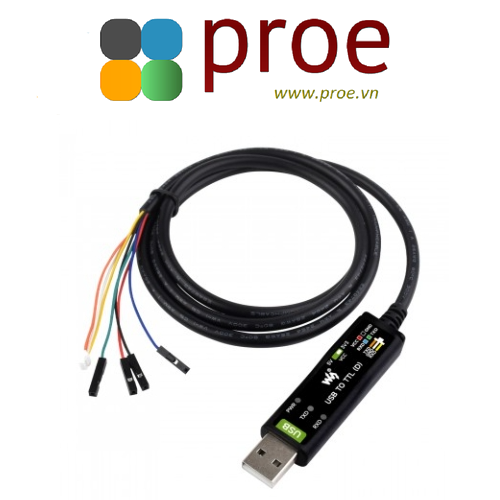

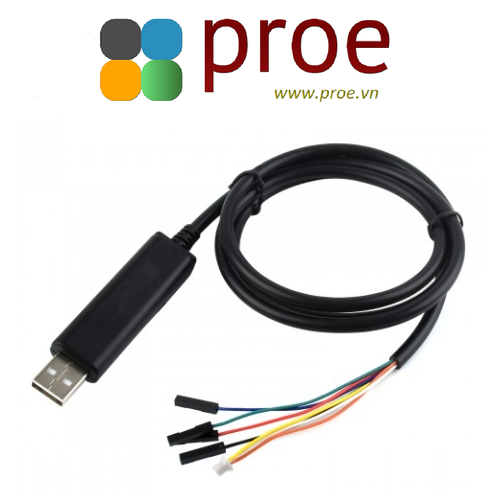

Industrial USB To TTL Serial Cable Type D
Original FT232RNL | Stable Transmission | Multi Devices | Multi Systems
Suitable for serial port debugging of industrial equipments, supports Raspberry Pi 5
Industrial USB TO TTL serial cable, adopts original FT232RNL chip, onboard power supply and signal indicators, supports 3.3V/5V voltage level switching, built in self-recovery fuse, ESD and IO protection diode circuits, etc. It is compact in size, suitable for serial port debugging of industrial equipments and can be directly connected to the Raspberry Pi 5.
Specifications
| PRODUCT CATEGORY | Industrial USB TO TTL serial cable |
|---|---|
| CHIP SCHEME | FTDI original FT232RNL |
| HOST PORT | USB |
| DATA RATE | 300bps ~ 3Mbps |
| DEVICE PORT | UART |
| USB PORT | Connector: USB-A |
| Protection: self-recovery fuse, ESD protection | |
| UART PORT | Connector: separated 4pin female header + SH1.0 3PIN fool-proof connector |
| Protection: IO protection diode | |
| INDICATOR | PWR: power indicator, turns on when there is USB connection and voltage is detected |
| TXD: TX indicator, turns on while the USB port is sending data | |
| RXD: RX indicator, turns on while the device port is sending data back | |
| CABLE | Black, PVC sheath, total length 1m |
Onboard Original Chips
Adopts Original FT232RNL Chips, Providing Better Stability And Compatibility
Raspberry Pi UART Debugging
Suitable For Raspberry Pi, Supports Multiple Connection Methods
Connect to PI5 UART Debug Connector Via SH1.0 3PIN cable
Connect To Raspberry Pi 40PIN GPIO UART Interface Via Separated 4PIN Header
for reference only, the Raspberry Pi 5 is not included.
Multiple Systems Support
Compatible With Popular Systems Like Win7/8/8.1/10/11, Mac, Linux, Android...
Three LED Indicators
Easily Checking The Operating Status, Convenient For Programming / Debugging
Pinouts Definition
| VCC | 3.3V or 5V output, configured by switch |
|---|---|
| GND | Ground |
| TXD | Connecting to MCU.RXD (signal direction: MCU.RX < < FT232 < < PC.TX) |
| RXD | Connecting to MCU.TXD (signal direction: MCU.TX > > FT232 > > PC.RX) |
Outline Dimensions
* The above dimensions are measured manually and may have some errors
