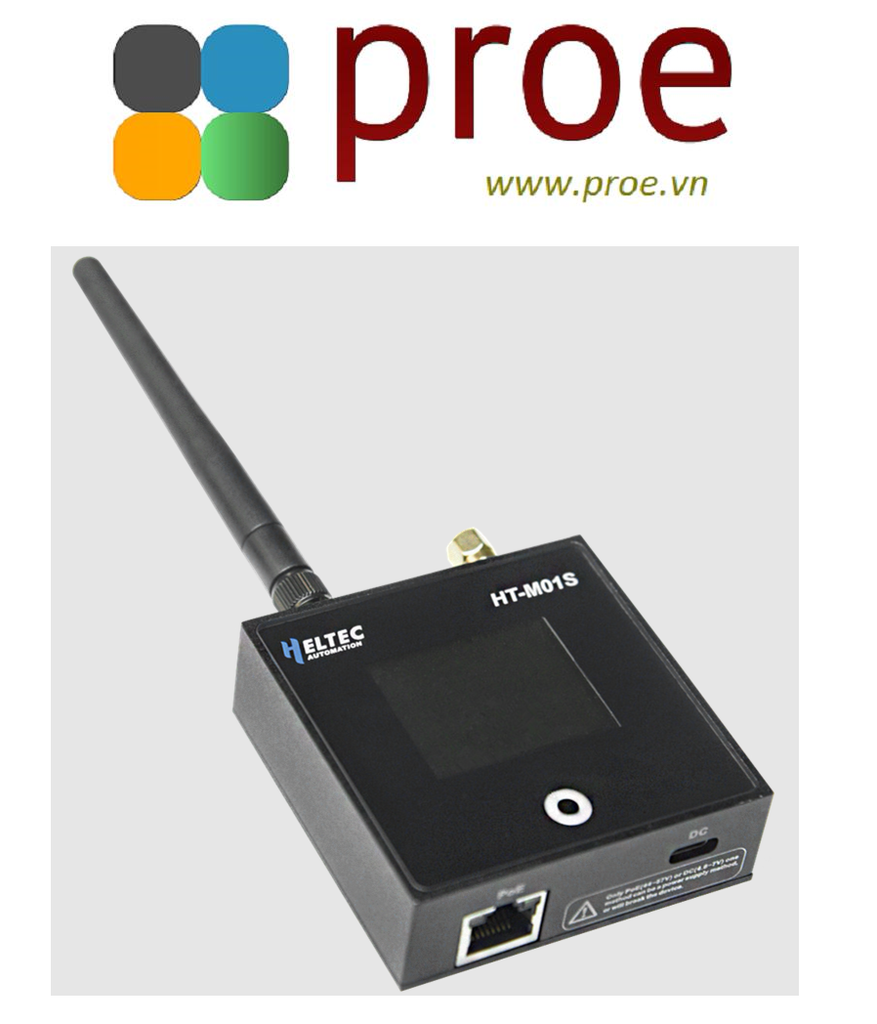

HT-M01S Indoor LoRa Gateway

HT-M01S is positioned as a low-cost standard gateway for indoor use. LoRa part based on the SX1308 + 1255/7 structure, but we innovatively use ESP32 as the main control chip, and use SX1308’s hardware driver, data forwarding, and message queue, etc. are completely transplanted to the ESP32 platform without running the Linux operating system. This is the key to its low cost!

It has basic mechanical protection and dustproof structure, but it does not have waterproof performance. It can be connected to the cloud server via Wi-Fi/Ethernet, and the power supply can be Type C 5V or PoE, there also has a 1.8-inch TFT display under the tempered glass panel. Very suitable for deployment in factories, warehouses, homes and other indoor environments that can provide power and network.

HT-M01S Indoor LoRa Gateway is a part of the “Heltec LoRa“ series, with the following features:

• CE & FCC Certificate
• Ready to use LoRa Gateway
• System MCU: ESP32
• LoRa baseband: SX1308
• Emulates 49x LoRa demodulators and 1x (G)FSK demodulator
• 10 programmable parallel demodulation paths
• Dynamic data-rate adaptation (ADR)
• Automatic adaptive spread spectrum factor, SF7 to SF12 for each channel is optional
• Maximum output: 20 ± 1dBm
• Up to -139dBm sensitivity with SX1257 or SX1255 Tx/Rx front-end
• The power supply voltage:5V
• Support for LoRaWAN Class A, Class C protocols
• Through the unique heat conduction device to transfer heat to the aluminum housing, strengthen heat dissipation, make the operation more stable
• -40°C to 80°C maximum operating temperature range
• Working bands: Full band coverage corresponding to the working frequency option.

Technical Parameters

Electrical characteristics

https://heltec-automation-docs.readthedocs.io/en/latest/gateway/ht-m01s/index.html

Document Page: https://heltec-automation-docs.readthedocs.io/en/latest/gateway/ht-m01s/index.html

Resource Page: https://resource.heltec.cn/download/HT-M01S

AutoCAD 2016 Drawing: https://resource.heltec.cn/download/HT-M01S/HT-M01S.dwg

https://www.loraserver.io/
