ESP32-S3-Touch-AMOLED-2.06

ESP32-S3 2.06inch AMOLED Touch Watch Development Board, 32-bit LX7 Dual-core Processor, 410×502 Pixels, QSPI Interface, Onboard Dual Digital Microphones Array, ESP32 With Display

ESP32-S3 2.06inch AMOLED Watch
Development Board

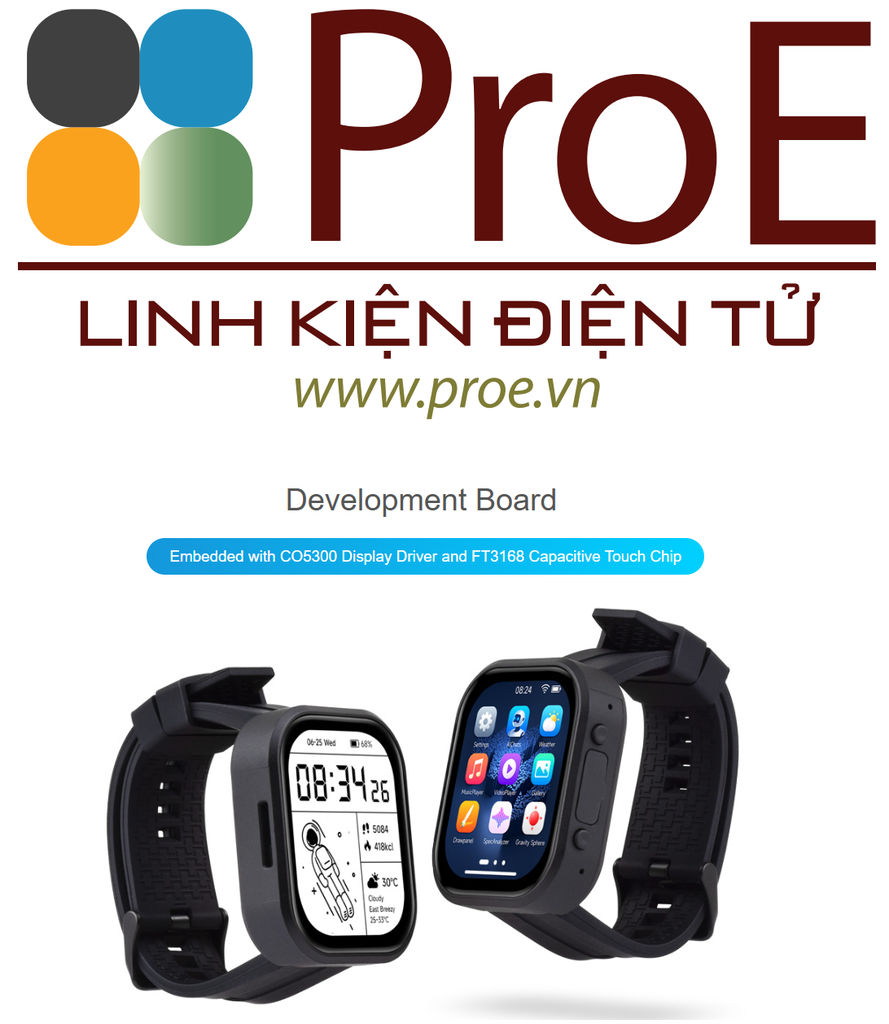

Embedded with CO5300 Display Driver and FT3168 Capacitive Touch Chip

Version Options

ESP32-S3-Touch-AMOLED-2.06-EN
Standard version, without Lithium battery

ESP32-S3-Touch-AMOLED-2.06
Comes with a MX1.25 Lithium battery
(can be installed inside the case)

Features

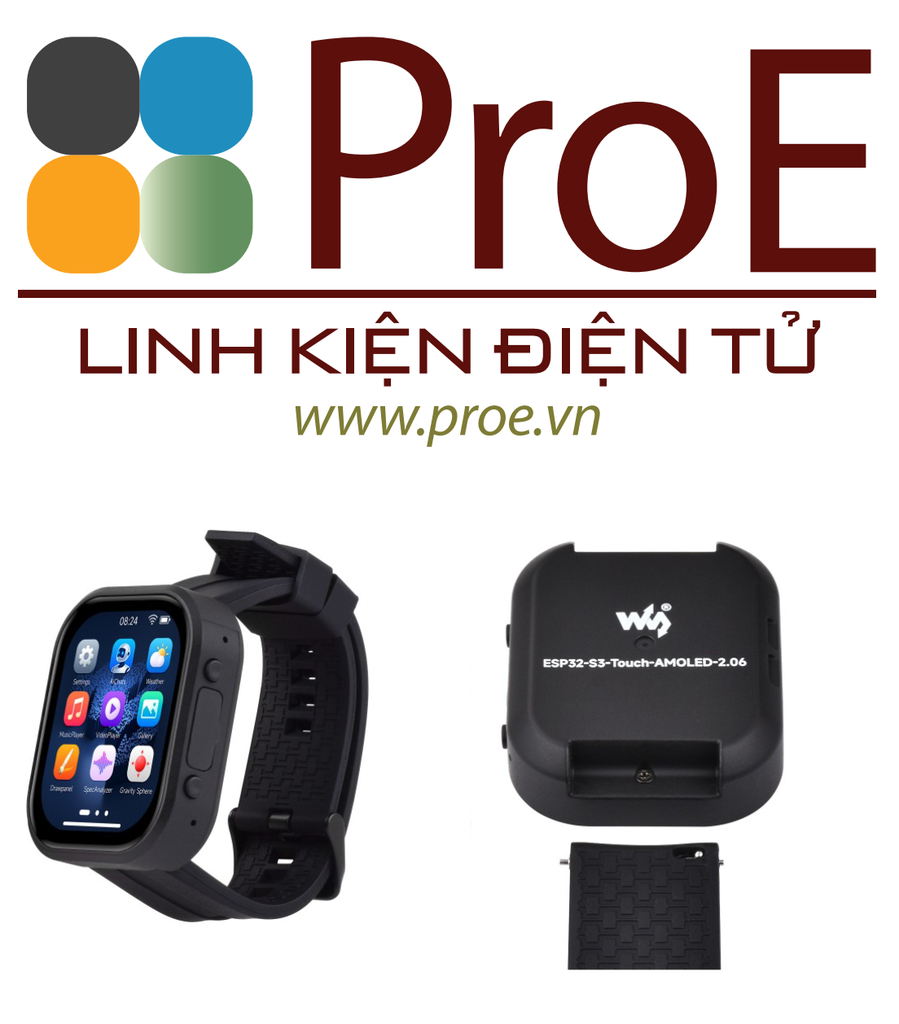

The ESP32-S3-Touch-AMOLED-2.06 is a high-performance, wearable watch-style development board designed by Waveshare. Based on the ESP32-S3R8 microcontroller, it integrates a 2.06inch AMOLED capacitive touch display, 6-axis IMU, RTC chip, audio codec chip, power management IC, and so on. Comes with a custom-designed case with a smartwatch-like appearance, making it ideal for prototyping and functional verification of wearable applications.

• Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
• Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 32MB Flash memory
• Type-C connector, improving device compatibility, easier to use
• Onboard 2.06inch AMOLED capacitive touch display for clear color picture display, 410 × 502 resolution, 16.7M color
• Built-in CO5300 display driver and FT3168 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
• Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
• Onboard PCF85063 RTC chip, powered by Lithium battery through AXP2101 chip for uninterrupted power supply
• Onboard PWR and BOOT programmable buttons for easy custom function development
• Onboard 3.7V MX1.25 Lithium battery recharge/discharge header
• Onboard reserved pads of 1 × I2C, 1 × UART and 1 × USB interfaces, for connecting peripherals and debugging
• Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design
• Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, battery charging, battery management, and battery life optimization, etc.
• Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.

AMOLED parameters

Small Size, Touch More Possibilities

Suitable For Various Smart Device Development, and Can Realize Human-Computer Interaction Function. Supports connecting to a battery for independent operation

Adopts AMOLED screen

The next-generation display technology, compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid videos and images

178° wide viewing angle

Excellent Display Performance, 16.7M color, wide viewing angle

Onboard audio codec

Onboard ES8311 audio codec chip and ES7210 echo cancellation circuit. Meet daily audio application scenarios

Supports offline voice recognition and AI Speech Interaction

Allows access to online large model platforms such as DeepSeek, Doubao, etc.

Supports ESP-IDF, Arduino

Comprehensive SDK, dev resources, tutorials to help you easily get started

Wi-Fi and BLE 5 support

ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 ax/b/g/n) with 40 MHz of bandwidth support, Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

Wearable Design

Detachable watch straps for easy replacement and convenient matching with different styles

What's On Board

Pin definition

outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/ESP32-S3-Touch-AMOLED-2.06

Weight: 0.119 kg

1. ESP32-S3-Touch-AMOLED-2.06 x1
2. Watch straps ×1
3. OPTIONS MX1.25 Lithium battery ×1
