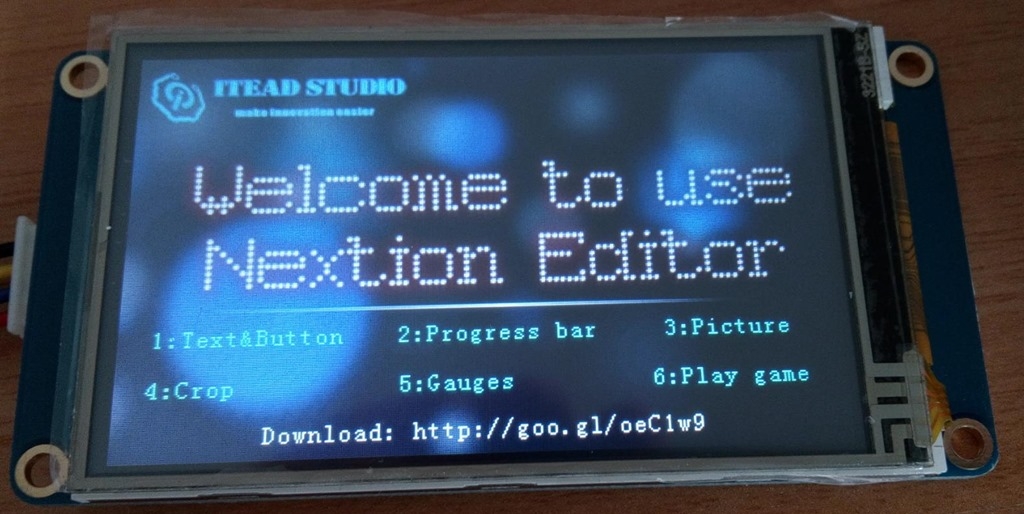

Nextion 7 inch NX8048T070

  • Mã sản phẩm: Màn hình HMI UART Nextion 7 inch
  • Nhà sản xuất: Nextion
  • Website hỗ trợ: https://www.proe.vn
1.990.000₫

Overview

Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.


Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.

It's easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART.

Nextion 7.0'' HMI TFT Screen Display Module with integrated 4-wire Resistive Touch Panel For Arduino DIY NX8048T070 800x480 is a powerful 7.0'' HMI, which is member of Nextion family. Features include: a 7.0" TFT 800x480 resistive touch screen display, 16M Flash, 2KByte RAM, 65k colors.

Package include: a Nextion 7.0'' display, a wire, a power supply test board

Note: there's a small power supply test board and a wire for you to test if the electricity supply is enough or not. Please see below image how to use it.

Features

  • Compatible with Raspberry Pi A+, B+, Pi 2, Pi 3, Arduino
  • 800 x 480 Resolution
  • RGB 65K true to life colours
  • TFT Screen with integrated 4-wire Resistive Touch Panel
  • 4 pin TTL serial interface
  • 16M Flash memory for User Application Code and Data
  • On board micro-SD card slot for firmware upgradation
  • Visual Area: 154.08mm(L)×85.92mm(W)
  • Adjustable Brightness: 0~230 nit, the interval of adjustment is 1%
  • Recommended Power Supply: 5V, 2A, DC
  • Certificates: CE/EMC, RoHS (certificates)
Nextion_hardware

Software

Nextion_Software

Nextion_Software

Documents

Please visit our wiki page for more information about this product. Any suggestions for improvement, such as correcting errors, adding more demo codes or tutorials, will be highly appreciated.

Technical support

For technical support, please open a ticket on Itead Support System.

ADDITIONAL INFORMATION

Discontinued No
Link Wiki No
Display Resolution 800 x 480
Display Interface Serial
Screen Type Touch Screen
Display Controller No
TFT display interface N/A
Display Size 10.1”
Board Size 181mm*108mm
Expand
  • SD Card Socket
  • Touch Screen
Weight 350 g
