EM06-E LTE Cat-6 HAT for Raspberry Pi, Dual Antennas LTE-A, Multi Regions Multi Band, GNSS

EM06-E LTE Cat-6 HAT for Raspberry Pi, Dual Antennas LTE-A, Multi Regions Multi Band, GNSS

Mã sản phẩm: EM06-E LTE Cat-6 HAT
Nhà sản xuất: Waveshare
Website hỗ trợ: https://www.proe.vn

2.700.000₫

PACKAGE CONTENT

Weight: 0.204 kg

M.2 TO 4G/5G HAT x1
EM06-E x1
Antenna 2pcs x1
IPEX adapter cable 2pcs x1
2*20PIN pin header x1
Passive GPS antenna x1
Dual plug USB3.0 cable x1
USB3.0 adapter x1
USB2.0 adapter x1
SMA protective cap 2pcs x1
Screws pack x1

EM06-E LTE Cat-6 HAT For Raspberry Pi, Dual Antennas LTE-A, Multi Regions Multi Band, GNSS

EM06-E LTE CAT-6 HAT FOR RASPBERRY PI

Supports LTE-A and UMTS/HSPA(+) multi networks

Multi-Constellation High-Accuracy GNSS, Cloud Platform Communication, LTE-A Networking

Features At A Glance

This is an LTE Cat 6 Raspberry Pi communication HAT with GNSS and up to 300Mbps (downlink) / 50Mbps (uplink) data rate. It is applicable for countries/regions including Europe, the Middle East, Africa, Asia-Pacific, Brazil... By connecting it to PC, Raspberry Pi or Jetson Nano host boards, it is easy to enable LTE-A high speed networking, cloud platform communication, SMS, and global GNSS positioning functions.

Multi-constellation high-accuracy GNSS positioning: GPS, GLONASS, BeiDou/Compass, Galileo, QZSS
Integrates extensive network protocols, with multi drivers and software support, compatible with different OS including Windows / Linux / Android
USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed LTE-A communication
Standard M.2 B KEY slot, compatible with different core modules: EM06-E, EM06-J, EM06-A series
Onboard PWR and RST control pin, enabled via DIP switch, for connecting to external IO to turn on/off or reset the module
Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
Reserved 4x SMA to IPEX antenna interfaces, with pre-soldered 2x connectors for easily using antennas, allows changing the SMA antenna position
High efficiency power supply circuit, up to 3A output current

Module Specifications

LTE CAT 6
Region / Provider	EMEA / APAC (except Japan and CMCC) / Brazil
Module dimensions	42.0 × 30.0 × 2.3 (mm)
TEMPERATURE RANGE
Operating temperature	-30°C ~ +70°C
Extension temperature	-40°C ~ +85°C
FREQUENCY BAND
LTE-FDD	B1, B3, B5, B7, B8, B20, B28, B32 (receive only for B32)
LTE-TDD	B38, B40, B41
2xCA	B1+B1, B5, B8, B20, B28; B3+B3, B5, B7, B8, B20, B28; B7+B5, B7, B8, B20, B28; B20+B32 (B32 is used for aux component carrier only), B38+B38, B40+B40, B41+B41
WCDMA	B1, B3, B5, B8
GNSS	GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS
DATA RATE
LTE-FDD	300 Mbps (DL) / 50 Mbps (UL)
LTE-TDD	226 Mbps (DL) / 28 Mbps (UL)
DC-HSPA+	42 Mbps (DL) / 5.76 Mbps (UL)
WCDMA	384 Kbps (DL) / 384 Kbps (UL)

Dedicated For IoT/M2M Applications

Supports LTE-A And UMTS/HSPA(+) Multi Networks

Applicable For Countries/Regions Including Europe, The Middle East, Africa, Asia-Pacific, Brazil...

Multi System Support, Easy To Use

Supports Windows / Linux / Android...

Just plug it into USB port, go through some simple configuration, the high speed LTE-A network connection will be ready to use

Connection Examples

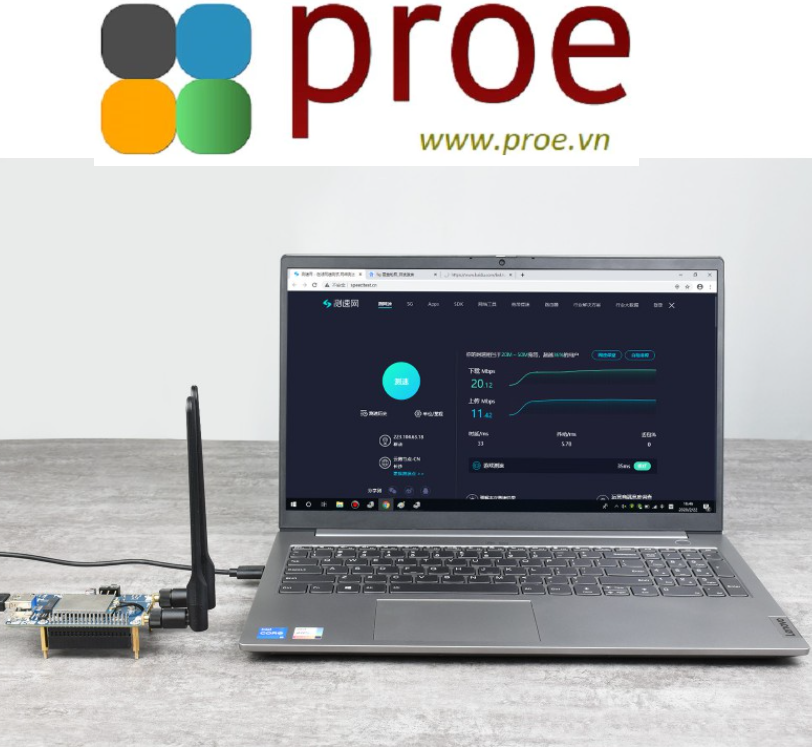

For Windows PC Or Jetson Nano Series, Use A USB Cable

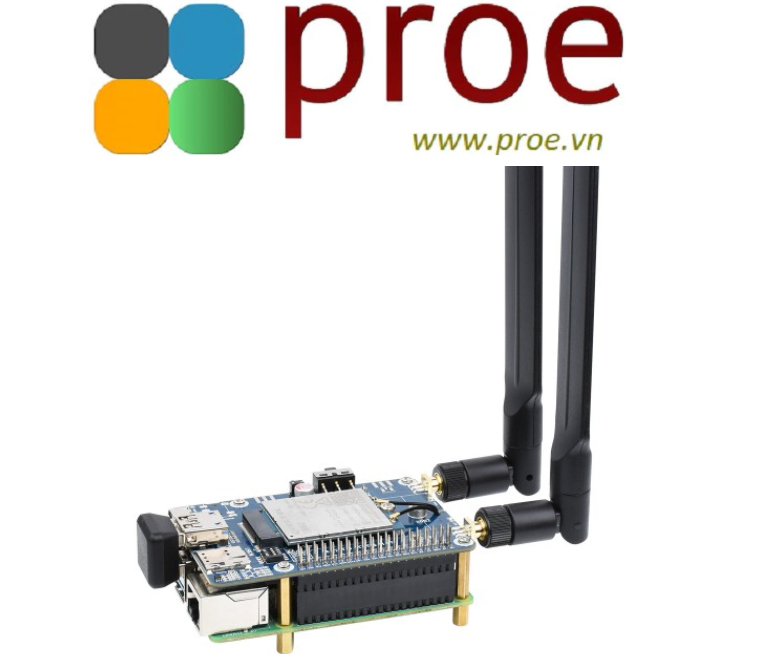

For Raspberry Pi 4B/3B+, Or CM4-IO-BASE-A/B, Use The Purpose-Made USB Adapter

connecting with Raspberry Pi 4B

connecting with Raspberry Pi 3B+

connecting with CM4 IO Base

Multi-Constellation High-Accuracy GNSS

Supports GPS, GLONASS, BeiDou/Compass, Galileo, QZSS

Standard Raspberry Pi 40PIN GPIO Header

Compatible With Raspberry Pi Series And Jetson Nano, Stackable Design For More HATs

* for reference only, please check the Package Content section for exact part list.

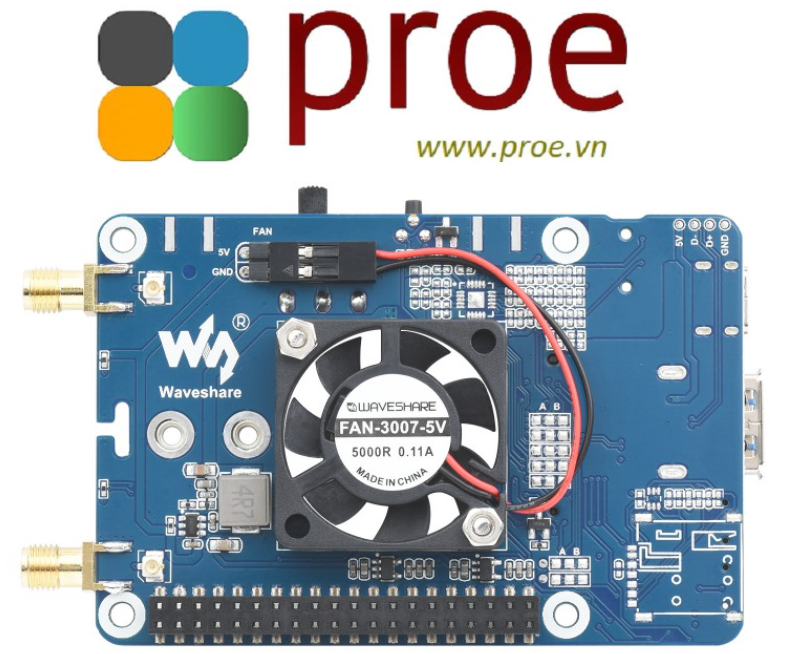

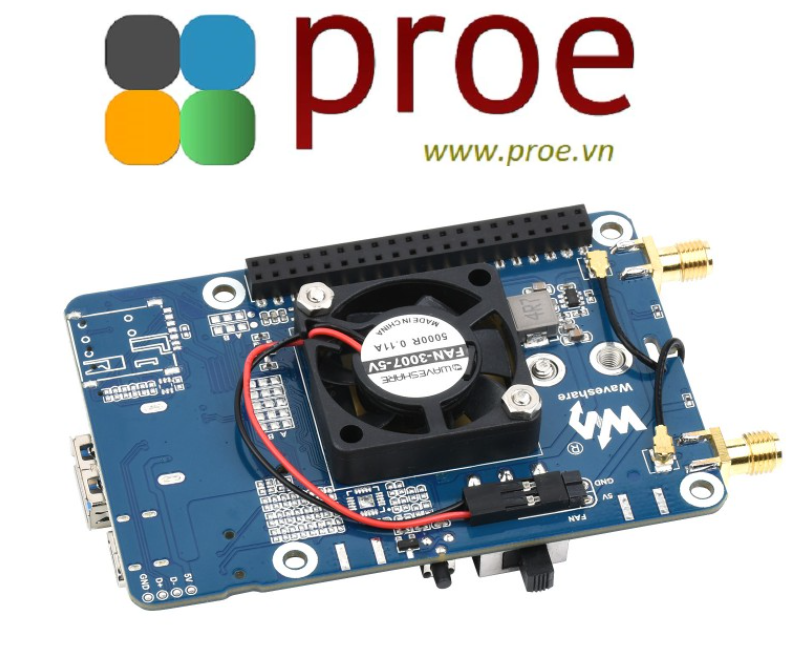

High Speed Cooling Fan

Better Heat Dissipation For Both Raspberry Pi And The LTE-A Module

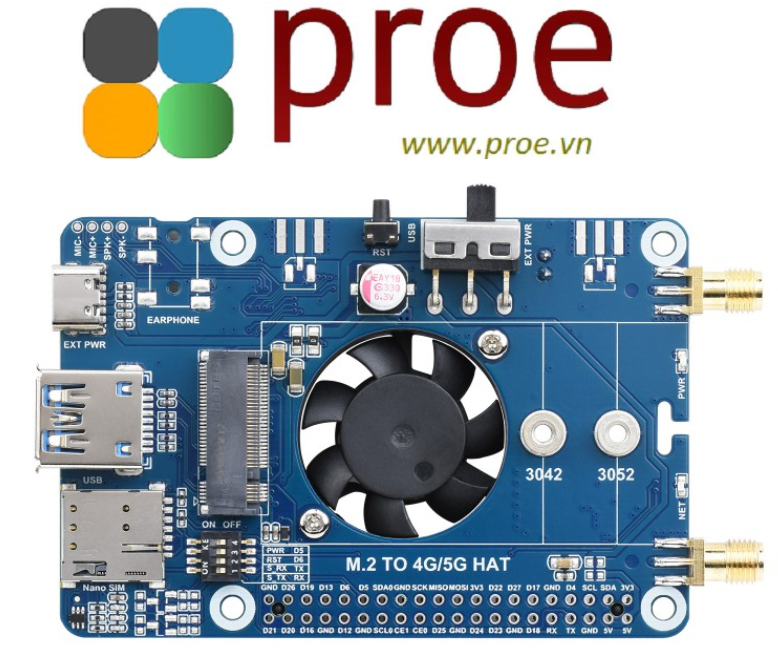

Standard M.2 B KEY Slot

Compatible With EM06-E, EM06-J, EM06-A Series Modules

LTE CAT 6	EM06-E	EM06-J	EM06-A
Region / Provider	EMEA/APAC①/Brazil	Japan	North America/Mexico
Operating temperature	-30 °C ~ +70 °C
Extension temperature	-40 °C ~ +85 °C
Dimensions	42.0 × 30.0 × 2.3 (mm)
Power supply	3.135V~4.4V, typical 3.7V
Power consumption	50μA @ shutdown 4.1mA @ hibernate, typical 22.1mA @ idle	47μA @ shutdown 3.8mA @ hibernate, typical 19.5mA @ idle	50μA @ shutdown 3.8mA @ hibernate, typical 21.3mA @ idle
FREQUENCY BAND
LTE-FDD	B1, B3, B5, B7, B8, B20, B28, B32②	B1, B3, B8, B18, B19, B26, B28	B2, B4, B5, B7, B12, B13, B25, B26, B29②, B30, B66
LTE-TDD	B38, B40, B41	B41	B41
2xCA	B1+B1, B5, B8, B20, B28; B3+B3, B5, B7, B8, B20, B28; B7+B5, B7, B8, B20, B28; B20+B32②; B38+B38; B40+B40; B41+B41	B1+B1, B8, B18, B19, B26, B28; B3+B3, B8, B18, B19, B26, B28; B41+B41	B2+B2, B5, B12, B13, B29②; B4+B4, B5, B12, B13, B29②; B7+B5, B7, B12, B26; B25+B5, B12, B25, B26; B30+B5, B12, B29②; B66+B5, B12, B13, B29②, B66; B41+B41
WCDMA	B1, B3, B5, B8	B1, B3, B6, B8, B19	B2, B4, B5
GNSS	GPS / GLONAS S/ BeiDou (Compass) / Galileo / QZSS (configurable)
DATA RATE
LTE-FDD	300 Mbps (DL); 50 Mbps (UL)
LTE-TDD	226 Mbps (DL); 28 Mbps (UL)
DC-HSPA+	42 Mbps (DL); 5.76 Mbps (UL)
WCDMA	384 kbps (DL); 384 kbps (UL)
① except Japan and CMCC; ② B29/B32 is only used for receiving in LTE-FDD, while only for aux component carrier wave in 2×CA;

Comes with EM06-E module by default, for other modules or hardware customization, feel free to contract us.

Application Examples

LTE-A Wireless Router
Combined with OpenWrt, turns the Raspberry Pi into a LTE-A wireless router, providing WiFi hotspot for smartphones to easily access the LTE-A Network.

LTE-A Live Streaming
While mounting an additional camera, it is able to do live streaming on webpage or live platform through ffmpeg video stream.

More Possibilities

Outline Dimensions

Resources & Services

Wiki: EM06-E_LTE_Cat-6_HAT
