DMG80480C070_15WTR 7.0 Inch With Shell HMI Display DMG80480C070_15WTR(commercial grade)
- Mã sản phẩm: DMG80480C070_15WTR
- Nhà sản xuất: DWIN
- Website hỗ trợ: https://www.proe.vn
850.000₫

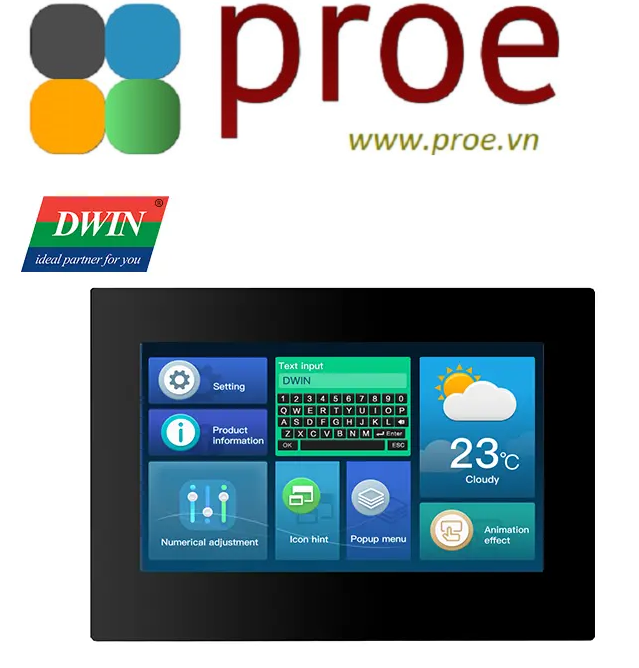

7.0 Inch With Shell HMI Display DMG80480C070_15WTR(commercial grade)
DWIN 800*RGB*480, Smart LCM
Features:
● 800*480 resolution, 262K colors, TV-TN-TFT-LCD;
● Resistive touch screen;
● RS232 and RS485 Interface, 8Pin3.81mm Socket connection wire;
● Download via SD card or on-line serial port;
● 8MBytes NOR Flash, for fonts, pictures and audio files;
● Brightness is up to 200nit;
● TV View Angle: 70/70/40/30 (L/R/U/D) ;
Specification
ASIC Information
| T5L0 ASIC | Developed by DWIN. Mass production in 2020,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 times |
Display
| Color | 262K colors |
| LCD Type | TV-TN, TFT LCD |
| Viewing Angle | TV viewing angle, 70°/70°/40°/30°（L/R/U/D） |
| Display Area（A.A） | 154.1mm (W) ×85.9mm (H) |
| Resolution | 800x480 |
| Backlight | LED |
| Brightness | 200nit |
Touch parameters
| Type | RTP (Resistive touch panel) |
| Structure | ITO film + ITO glass |
| Touch Mode | Support point touch and drag |
| Surface Hardness | 3H |
| Light Transmittance | Over 80% |
| Life | Over 1,000,000 times touch |
Voltage & Current
| Power Voltage | 6~36V |
| Operation Current | VCC = 12V, Max backlight,280mA |
| VCC = 12V, Backlight off,140mA |
Reliability Test
| Working Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ |
| Working Humidity | 10%~90%RH |
Interface
| LCM interface | FPC50_0.5mm, RGB interface |
| RTP interface | 4Pin_1.0mm interface |
| Baudrate | UART2, UART4: 3150~3225600bps UART5: 3150~921600bps |
| Output Voltage | UART2,UART4: Output 1; -5.0~-3.0 V Output 0; 3.0~5.0 V |
| UART5: Output 1; 2.5~5.0 V Output 0; -0.5~-2.5 V |
|
| Input Voltage （RXD） |
UART2,UART4: Input 1; -15.0~-5.0 V Input 0; 5.0~15.0 V |
| UART5: Input 1; 0~2.5V Input 0; -2.5~-0.2 V |
|
| Interface | UART2: RS232,N81 UART4: RS232,N81/E81/O81/N82 4 modes (OS configuration) UART5: RS485,N81/E81/O81/N82 4 modes (OS configuration) |

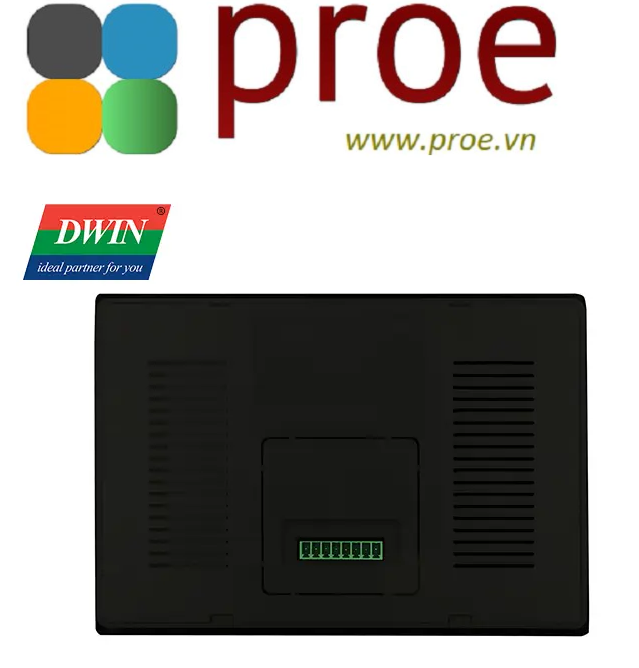

| User Interface | 8Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s |
| Flash | 16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times Expandable to 64Mbytes NOR Flash or 48Mbytes NOR Flash+512Mbytes NAND Flash |
| Buzzer | 3V passive buzzer. Power: <1W |
| SD interface | FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s |
| PGT05 interface | When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal |
Peripheral
| DMG80480C070_15WTR | Resistive Touch Screen,Buzzer, RTC, With shell |
