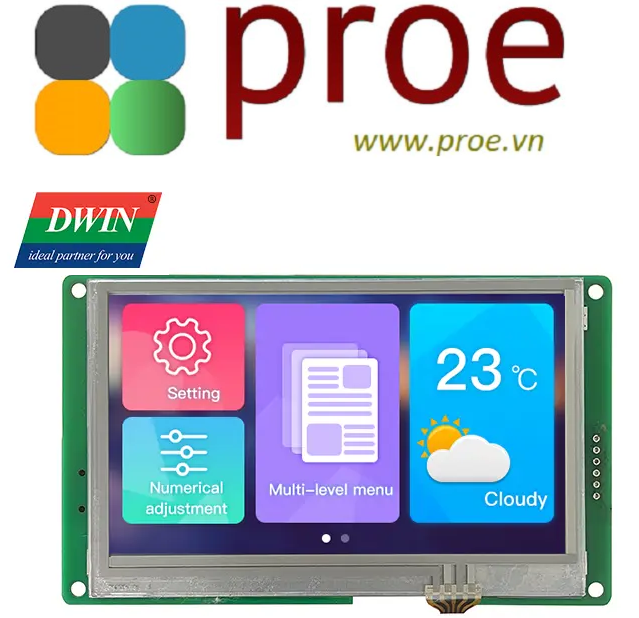

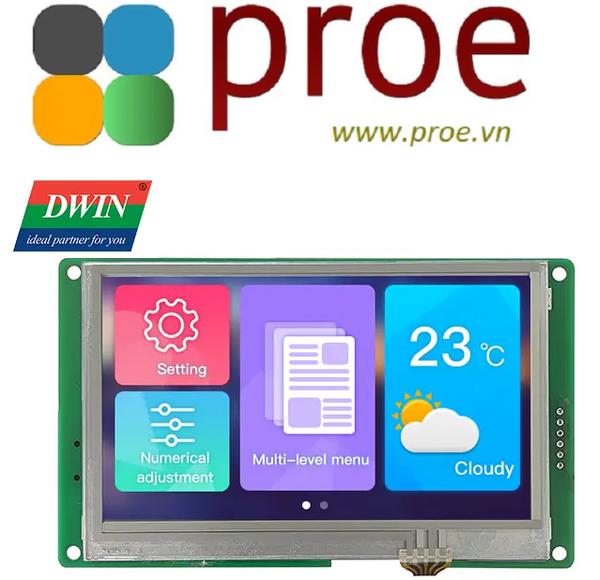

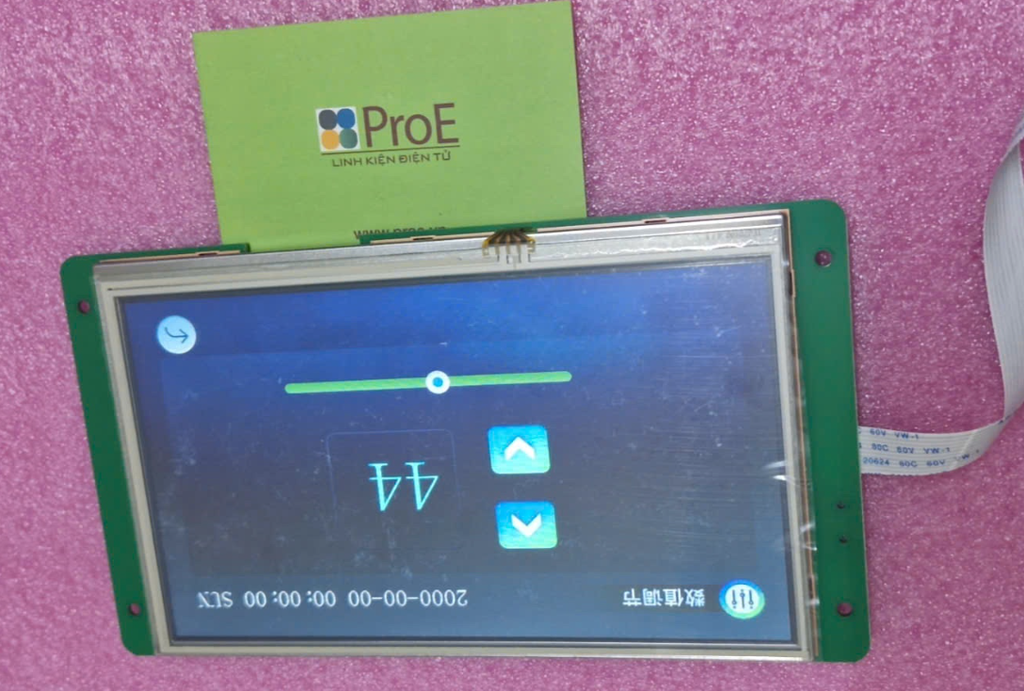

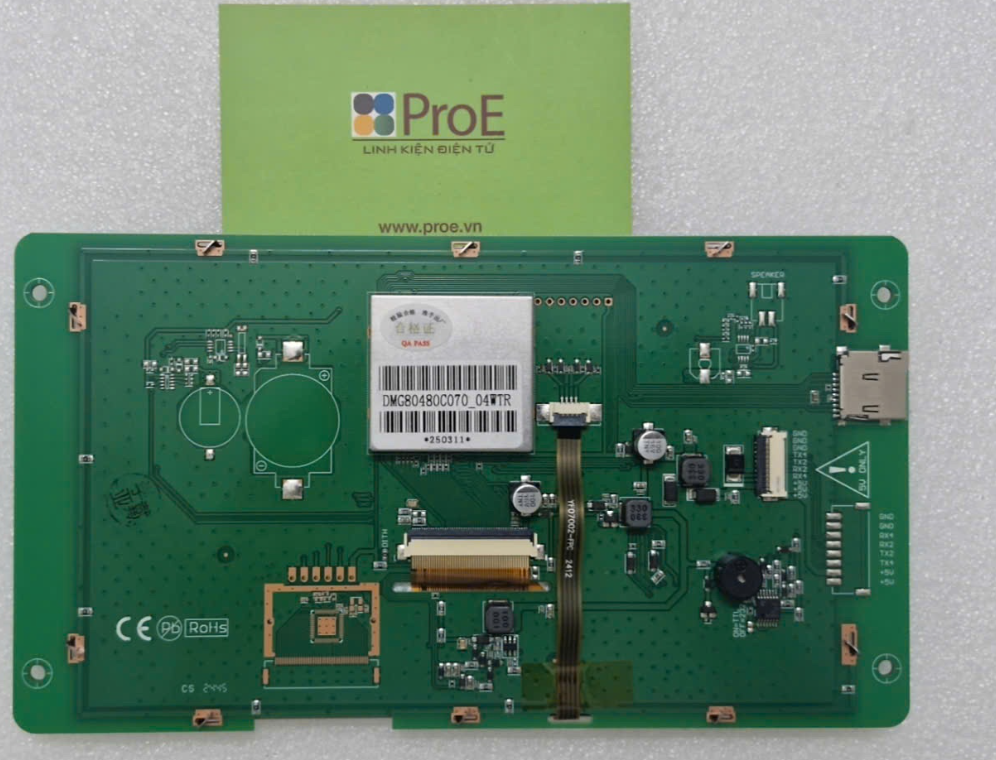

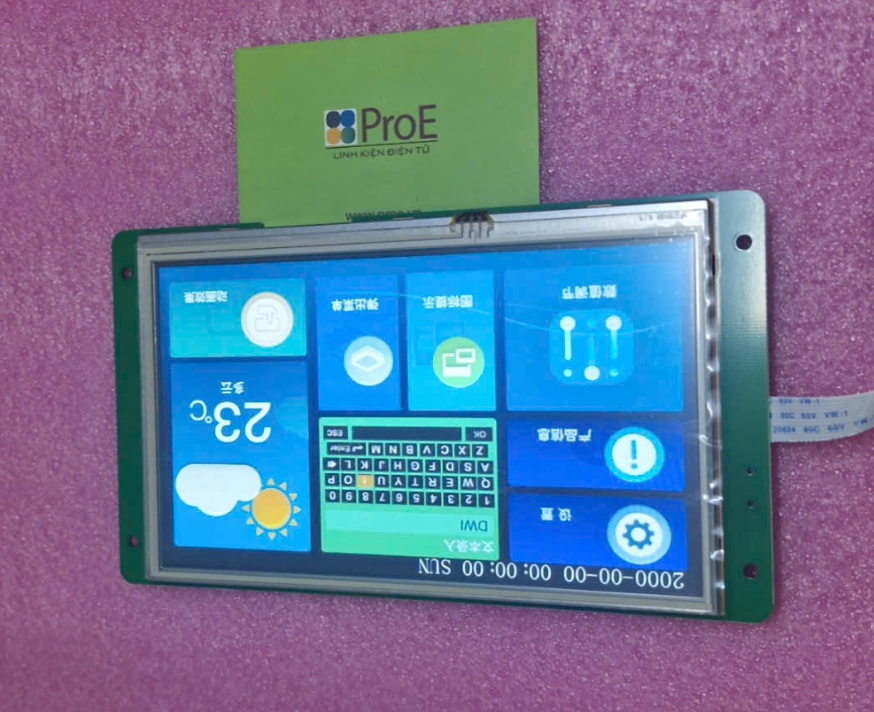

DMG80480C070_04WTR 7 Inch HMI LCD Display Touch Panel Model:DMG80480C070_04W(Commercial grade)
- Mã sản phẩm: DMG80480C070_04WTR
- Nhà sản xuất: DWIN
- Website hỗ trợ: https://www.proe.vn
690.000₫
Features:
● Based on T5L0, running DGUS II system, commercial grade.;
● 7.0-inch, 800*480 pixels resolution, 262K colors, TV-TN-TFT-LCD.
● Resistive touch screen
● TTL/CMOS interface; 10Pin_1.0mm connection wire;
● Download via SD card or on-line serial port;
● Easy-to-use DWIN DGUS V7.6 GUIs Development.no coding skills required;
● Dual Development System:DGUSⅡ/TA(Instruction set);
● TV viewing angle, 70°/70°/40°/30°（L/R/U/D）;
● With GUI&OS dual-core,GUI with rich controls,DWIN OS kernel is open to the user for the second-development,via DWIN OS language or KELI C51.
Specification
ASIC Information
| T5L0 ASIC | T5L0 ASIC Developed by DWIN. Mass production in 2019,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 times |
Display
| Color | 262K colors |
| LCD Type | TV-TN, TFT LCD |
| Viewing Angle | Normal viewing angle, 70°/70°/40°/30°（L/R/U/D） |
| Display Area（A.A） | 154.08mm (W) ×85.92mm (H) |
| Resolution | 800x480Pixel |
| Backlight | LED |
| Brightness | DMG80480C070_04WN:200nit DMG80480C070_04WTR:200nit DMG80480C070_04WTC:200nit |
Voltage & Current
| Power Voltage | 4.5~5.5V, typical value of 5V |
| Operation Current (DMG80480C070_04WTR) (DMG80480C070_04WN) |
VCC = +5V, Backlight on,545mA VCC = +5V, Backlight off,180mA |
| Operation Current (DMG80480C070_04WTC) |
VCC = +5V, Backlight on,500mA VCC = +5V, Backlight off,170mA |
Reliability Test
| Working Temperature | -20℃~70℃ (5V @ 60% RH) |
| Storage Temperature | -30~80℃ |
| Working Humidity | 10%~90%RH, typical value of 60% RH |
Interface
| LCM interface | FPC50_0.5mm, RGB interface |
| RTP interface | FPC4_1.0mm |
| CTP interface | COB structure, IIC interface |
| Baudrate | 3150~3225600bps, typical value of 115200bps |
| Output Voltage | Output 1, Iout = 1mA;3.0~3.3 V |
| Output 0, Iout =-1mA;0~0.3V | |
| Input Voltage （RXD） |
Input 1, Iin = 1mA， 2.4~5.0V |
| Input 0, Iin = -1mA， 0~0.5V | |
| User Interface | 10Pin_1.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s |
| Flash | 16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times |
| Buzzer | 3V passive buzzer. Power: <1W |
| SD interface | FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s |
| PGT05 interface | When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal |
Peripheral
| DMG80480C070_04WTR | Resistive touch screen, Buzzer |

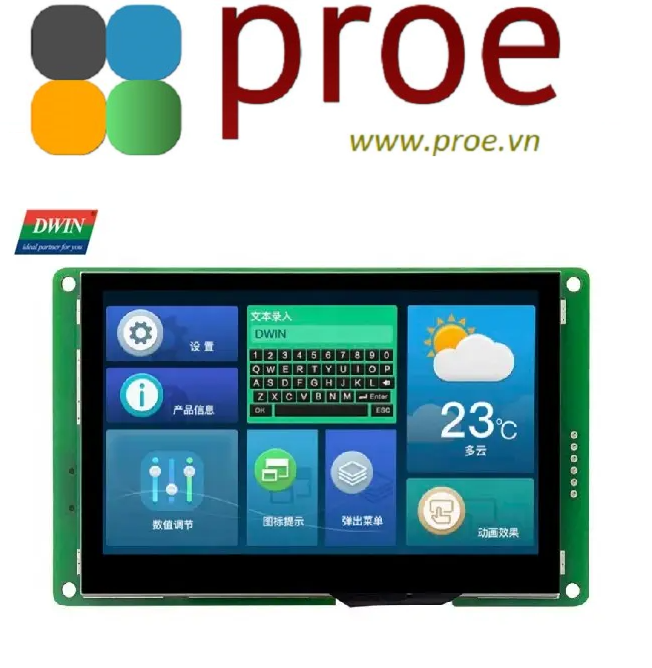

| DMG80480C070_04WTC | Capacitance touch screen, Buzzer |
