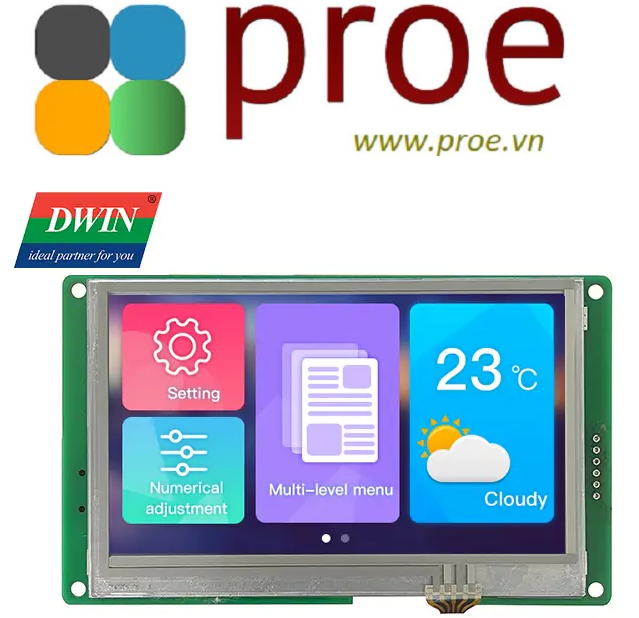

DMG48270C043_04WTR 4.3 Inch Intelligent Display DMG48270C043_04W (Commercial grade)
- Mã sản phẩm: DMG48270C043_04WTR
- Nhà sản xuất: DWIN
- Website hỗ trợ: https://www.proe.vn
390.000₫
DWIN 480xRGBx272, UART LCM
Features:
● Based on self-designed T5L0, 16.7M Color, 18bit, 480*272, Cheap TV-TN-TFT-LCD;
● Resistive touch
● 232 Interface,10Pin1.0mm FCC connection wire;
● Download via SD card or on-line serial port;
● Easy-to-use DWIN DGUS V7.624 GUIs Development, no coding skills required;
● Dual Development System: DGUS II/ TA(Instruction set);
● Cost-Effective TN screen ;
Specification
ASIC Information
| T5L0 ASIC | Developed by DWIN. Mass production in 2020,1MBytes Nor Flash on thechip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 times |
Display
| Color | 18-bit 6R6G6B |
| LCD Type | TV-TN, TFT LCD |
| Viewing Angle | TV viewing angle, 70°/70°/40°/30° (L/R/U/D) |
| Display Area（A.A） | 95.04mm (W) ×53.86mm (H) |
| Resolution | 480×272 |
| Backlight | LED |
| Brightness | DMG48270C043_04WN: 250nit DMG48270C043_04WTR: 230nit DMG48270C043_04WTC:330nit |
Electrical specifications
| Rated Power | <5W |
| Working Voltage | 4.5~5.5V, typical value of 5V |
| Working Current | VCC = +5V, Backlight on,180mA |
| VCC = +5V, Backlight off,60mA |
Interface
| LCM interface | FPC40_0.5mm, RGB interface |
| RTP interface | FPC4_1.0mm |
| Baudrate | 3150~3225600bps |
| Output Voltage | Output 1, Iout =-4mA 2.7~3.2 |
| Output 0, Iout = 4mA 0.1~0.4 | |
| Input Voltage （RXD） |
Input 1， Iin = 1mA；2.4-5.5V |
| Input 0， Iin = -1mA；0~1.0V | |
| Interface | UART2: N81 UART4: N81/E81/O81/N82 4 modes (OS configuration) |
| User Interface | 10Pin_1.0mm latching socket for power supply and serial communication. Download rate(typical value): 12KByte/s |
| Flash | 16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times |
| Buzzer | 3V passive buzzer. Power: <1W |
| SD interface | FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s |
| Reserved module interface | - |
| PGT05 interface | When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal |
Touch Parameters
| Type | RTP (Resistive touch panel) |
| Structure | ITO film + ITO glass |
| Touch Mode | Support point touch and drag |
| Surface Hardness | 3H |
| Light Transmittance | Over 80% |
| Life | Over 1,000,000 times touch |
| Type | CTP (Capacitive touch panel) |
| Structure | G+G structure with surface cover of Asahi tempered glass |
| Touch Mode | Support point touch and drag |
| Surface Hardness | 6H |
| Light Transmittance | Over 90% |
| Life | Over 1,000,000 times touch |
Voltage & Current
| Power Voltage | 4.5~5.5V |
| Operation Current | VCC = +5V, Backlight on,190mA (RTP/No touch), 200mA (CTP) |
| VCC = +5V, Backlight off, 70mA |
Reliability Test
| Working Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Working Humidity | 10%~90%RH |
Peripheral
| DMG48270C043_04WTN | Buzzer |
| DMG48270C043_04WTR | Resistive touch panel, Buzzer |
| DMG48270C043_04WTC | Capacitive touch panel, Buzzer |
