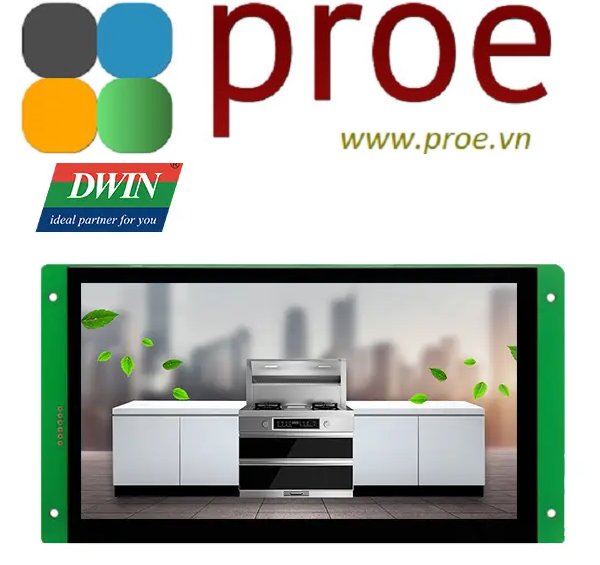

DMG10600C070_03WTC 7 Inch Smart TFT LCD Disolay DMG10600C070_03W(Commercial grade)

Features:

● Based on T5L ASIC 7.0 Inches, 1024xRGBx600, 16.7M Colors, IPS screen;

● None/Resistive /Capacitive touch panel;

● UART2: ON=TTL/CMOS; OFF=RS232;UART4: ON=TTL/CMOS; OFF=RS232; 10Pin_1.0mm FCC Socket;

● Download methods:via SD card or on-line serial port;

● Easy-to-use DWIN DGUS V7.6 GUIs Development.no coding skills required;

● Dual Development System:DGUS Ⅱ/TA(Instruction set);

● LCD:IPS View Angle:85/85/85/85(L/R/U/D);

● With GUI & OS dual-core, GUI with rich controls. DWIN OS kernel is open to the user for the second-development, via DWIN OS language or KEIL C51.
