Digital LTR390-UV Ultraviolet Sensor (C), Direct UV Index Value Output, I2C Bus
Digital UV Sensor
Ultraviolet Ray Sensing & Ambient Light Intensity Measuring
Direct Outputs UV Index And Light Intensity Value
Features At A Glance

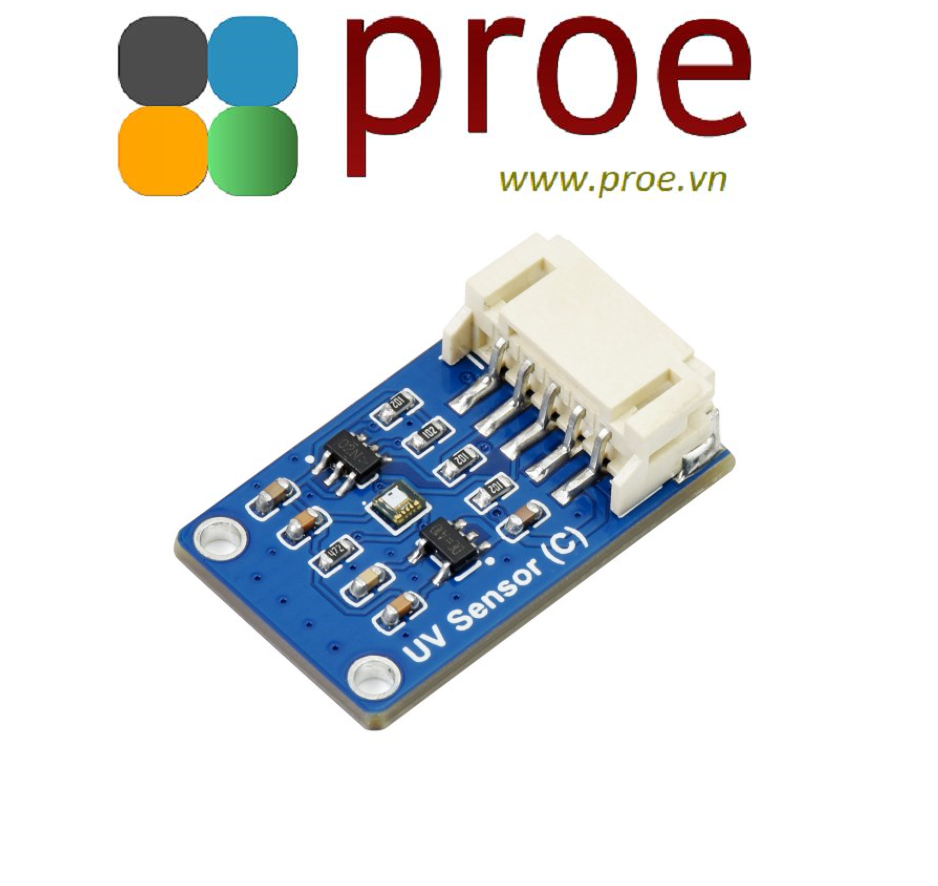

The UV Sensor (C) is an I2C digital UV sensor module which incorporates LTR390-UV-01, designed for measuring ultraviolet ray as well as visible light, and providing light intensity value output. With features including sensitive detection, fast response, and small form factor, the UV Sensor (C) integrates the main sensor LTR390-UV-01 on its 27 × 20mm body, allowing easy integration into other devices.
Specifications
SENSOR | LTR390-UV-01 | RESPONSE SPECTRUM | 280 - 430nm |
---|---|---|---|
COMMUNICATION BUS | I2C (constant address: 0x53) | OPERATING VOLTAGE | 3.3V/5V |
DIMENSIONS | 27 × 20mm | MOUNTING HOLE SIZE | 2.0mm |
I2C Control Interface
Supports Host Boards Including Raspberry Pi/Arduino/STM32...

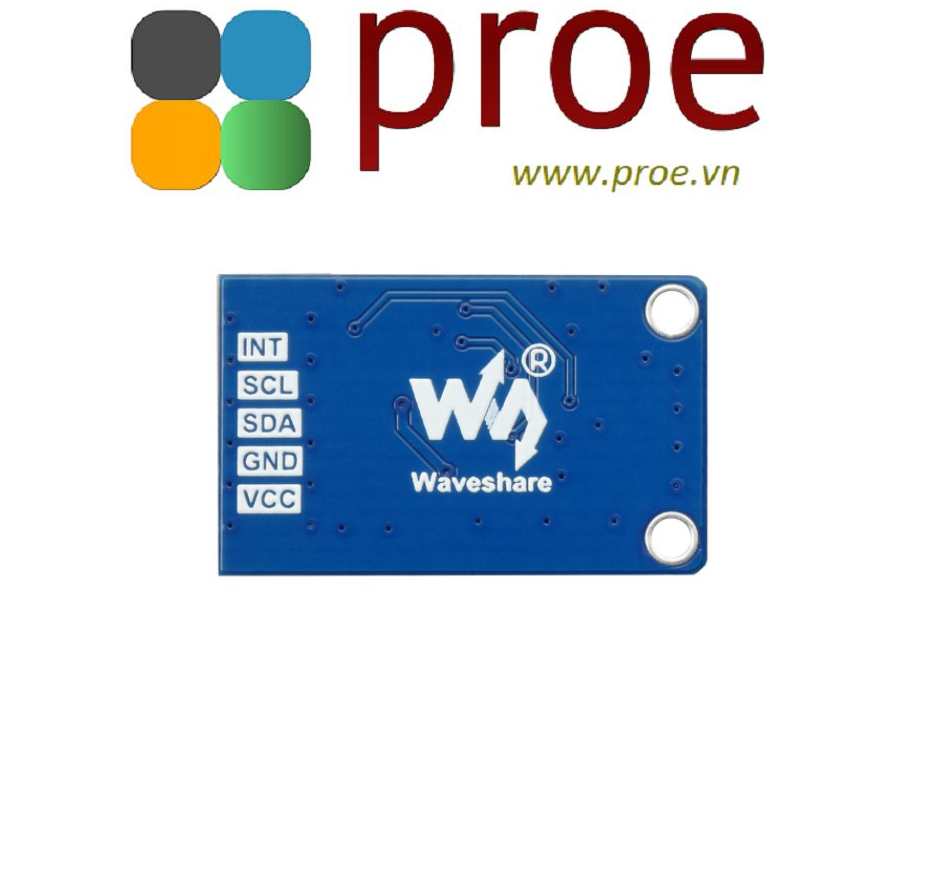

VCC | 3.3V/5V power input |
GND | GND |
SDA | connects to MCU I2C data pin |
SCL | connects to MCU I2C clock pin |
INT | GPIO input, triggering pulse signal on interruption |

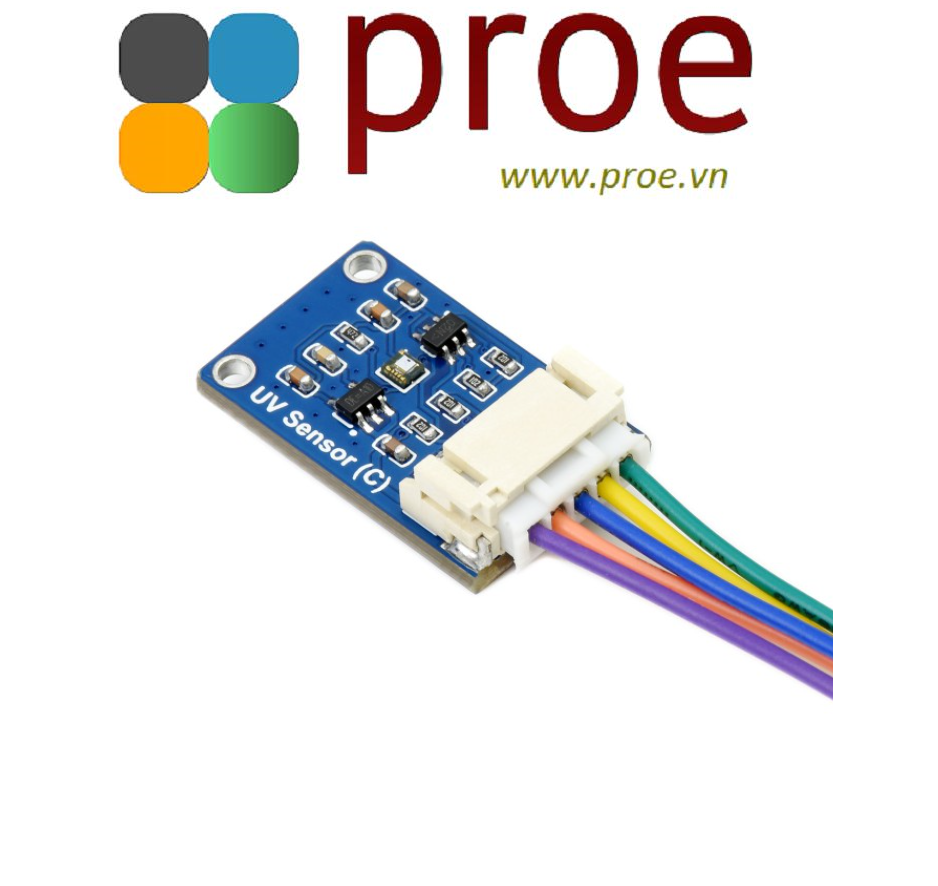

Hardware Connection
Connecting With Raspberry Pi
Connecting With Arduino Board
Outline Dimensions
Resources & Services
WIKI: UV_Sensor_(C)
