Combo STLINK-V3MINIE

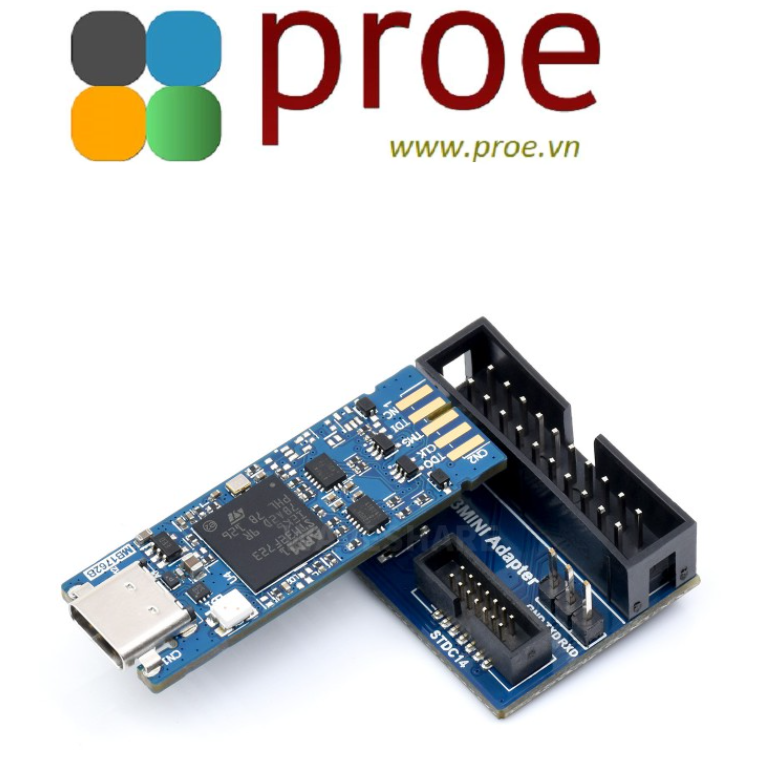

PACKAGE CONTENT

Weight: 0.058 kg

STLINK-V3MINIE, In-Circuit Debugger And Programmer For STM32

STLINK-V3MINIE
STM32 Debugger/Programmer

Based On Arm Cortex-M STM32 32-Bit Microcontroller

The STLINK-V3MINIE is a stand-alone debugging and programming tiny probe for STM32 microcontrollers, portable and easy-to-use. Onboard JTAG/SWD interfaces for communicating with STM32 microcontroller, also provides a virtual COM port for the host PC to communicate with the target microcontroller through one UART.

Features At A Glance

• Tiny 15 mm × 42 mm stand-alone debugging and programming probe for STM32 microcontrollers
• Self-powered through a USB Type-C connector
• USB 2.0 high-speed interface
• Probe firmware is updatable through USB
• Support drag-and-drop Flash programming of binary files
• Two color LEDs: communication, power
• JTAG communication support up to 21 MHz
• SWD (Serial Wire Debug) and SWV (Serial Wire Viewer) communication support up to 24 MHz
• Virtual COM port (VCP) up to 15 Mbps
• 1.65 to 3.60 V application voltage support

Interface Introduction

Software Support

Hardware Support

Support All STM32 Series MCUs With JTAG / SWD Interfaces

for reference only, STM32 MCU is not included.

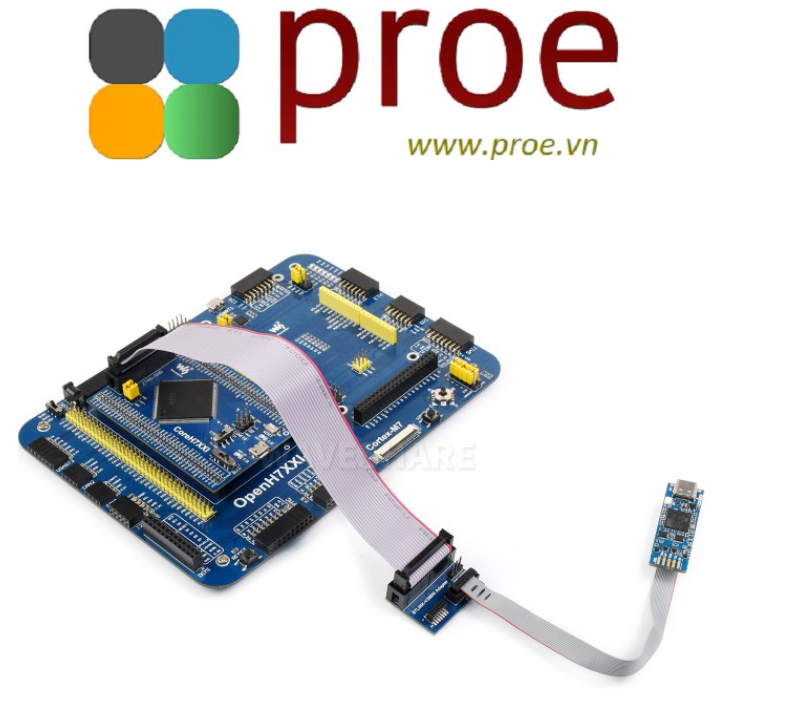

Connection Example

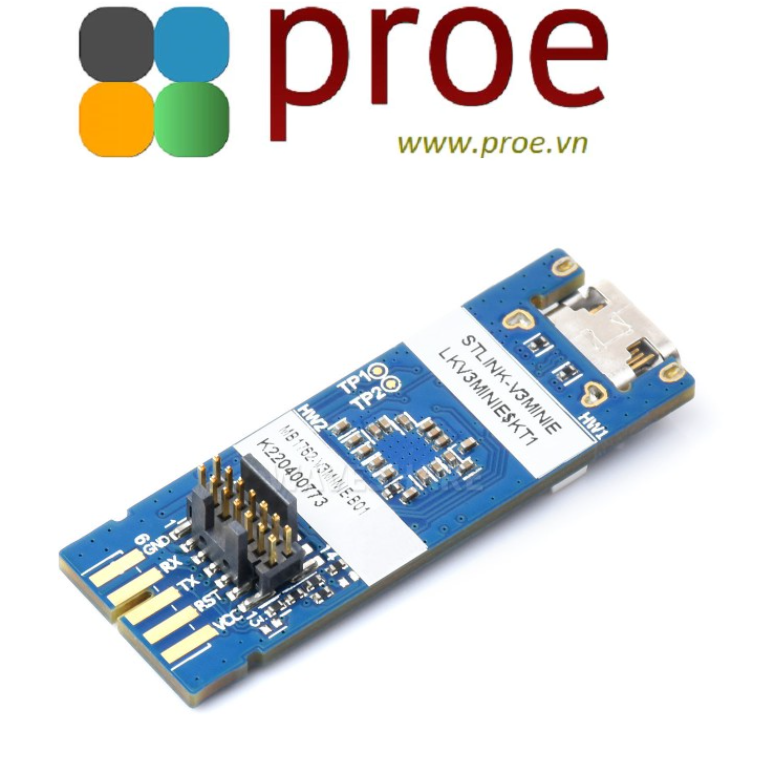

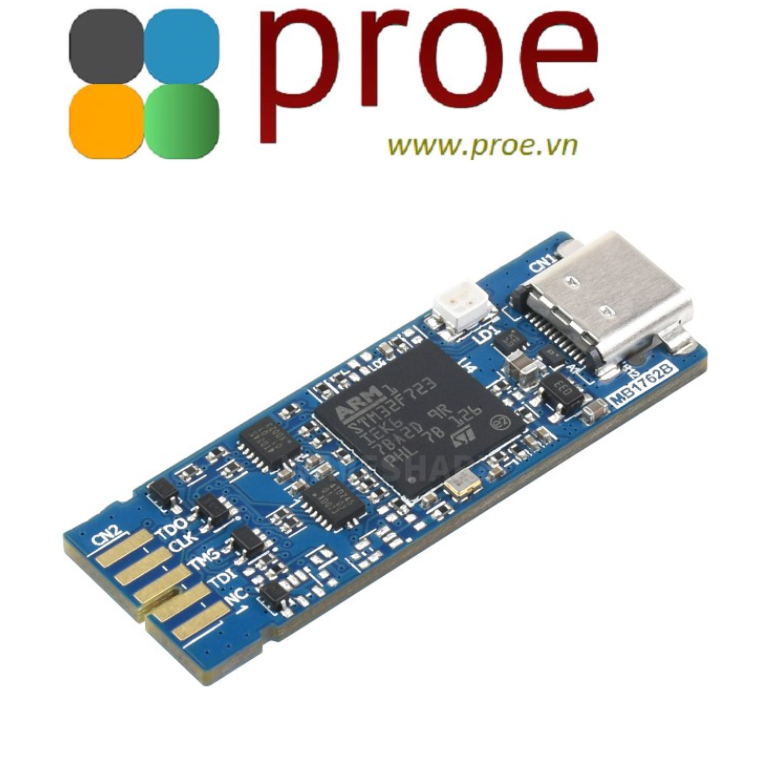

What's On Board

1. USB Type-C connector
2. Power LED indicator pad (LED is not soldered here)
3. STM32F723 MCU
4. BTB (board-to-board) card edge connector pads
5. STDC14 debug connector

6. COM LED Indicator
   The LED is blinking red: the first USB enumeration with the PC is taking place.
   The LED is red: the communication between the PC and STLINK-V3MINIE is established.(end of enumeration).
   The LED is blinking green/red: data are being exchanged between the target and the PC.

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/STLINK-V3MINIE
