CM4-NVME-NAS-BOX

  • Mã sản phẩm: CM4-NVME-NAS-BOX
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
2.000.000₫
WIKI: www.waveshare.com/wiki/CM4-NVME-NAS-BOX
PACKAGE CONTENT

Weight: 0.551 kg

  1. CM4-NVME-NAS-BASE x1
  2. Metal case (top and bottom) x1
  3. Momentary push button switch ~12mm (with LED and four pre-wired cables) x1
  4. 30×40mm Silicone thermal tape x1
  5. 15×15mm Silicone thermal tape (2PCS) x1
  6. 7×7mm Silicone thermal tape (2PCS) x1
  7. Antenna connector rubber plug (2PCS) x1
  8. Screws pack x1

NAS Multi-Functional Mini-Computer Designed For Raspberry Pi Compute Module 4 (NOT Included), Network Storage, Dual Solid State Drive Slots, Dual Gigabit Ethernet Ports, 4G Network, Metal Case

CM4 NAS Mini-Computer Kit

Designed For Raspberry Pi Compute Module 4

Network Storage USB 3.2 Dual Gigabit Ethernet ports 4G

* the Compute Module 4 is NOT included.



Features At A Glance

  • All-in-one Mini-Computer, mainly designed for home, small home office, etc.
  • Provides a simple and easy-to-use solution, no expert knowledge of networking and storage systems required
  • Onboard 2× M.2 M KEY slots for installing NVME Solid State Drives
  • Onboard MINI PCIE connector for installing 4G module
  • 2× HDMI 4K output interfaces
  • Onboard USB3.2 ports, IR receiver, RTC, dual Gigabit Ethernet connectors, 3.5mm jack, etc.

Specifications

CM4 SOCKET Suitable for all variants of Compute Module 4
NETWORKING Gigabit Ethernet RJ45 connector × 2 (Original Network port ETH0, and PCIE extended Network port ETH1)
MINI PCIE connector, supports 4G module (USB protocol, can not support PCIE protocol)
Nano-SIM card slot, supports standard Nano-SIM card for 4G/3G/2G Internet access
M.2 Dual NVME Solid State Drives slots (compatible with 2230, 2242, 2260, 2280)
USB USB 3.2 Gen1 (5Gbps) port× 2
CSI CAMERA MIPI CSI-2 camera port × 2, 15pin 1.0mm FPC connector
HDMI HDMI × 2, supports 4K 30fps output
AUDIO 3.5mm earphone/mic jack
RTC Real-time clock with battery socket and ability to wake Compute Module 4
TF CARD SLOT TF card socket for Compute Module 4 Lite (without eMMC) variants
POWER INPUT Type-C (5V 4A)
DIMENSIONS 128 × 122 × 36mm



Dual Solid State Drives Slots

Onboard 2× M.2 M KEY Slots, Support All Sizes Of NVME Solid State Drives
(2230, 2242, 2260, 2280)

VESA Mounting Support

Supports 100×100mm And 75×75mm Standard VESA Holes

for reference only, the stand and display are NOT included.

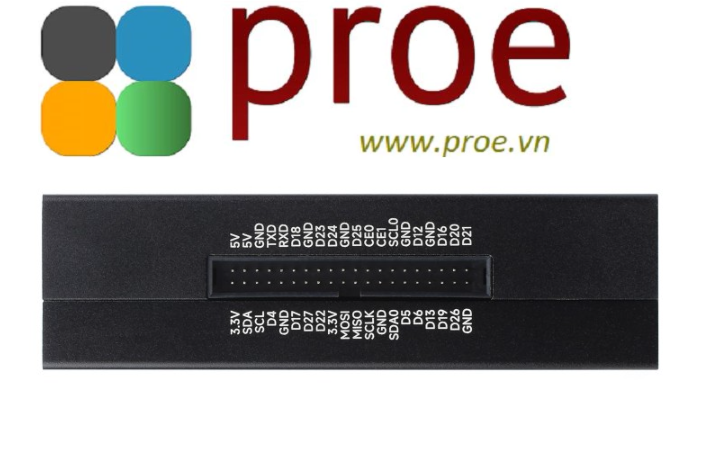

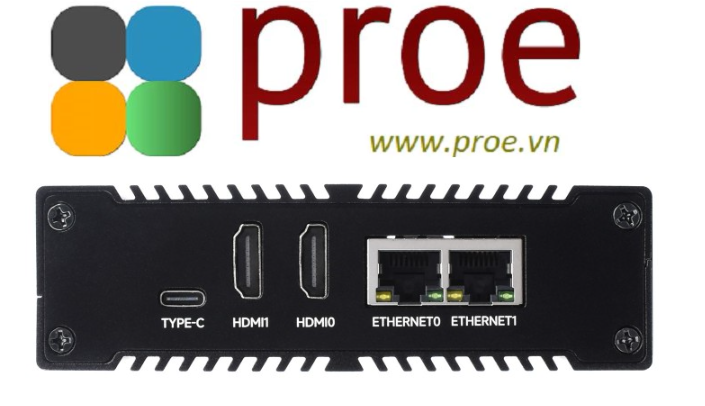

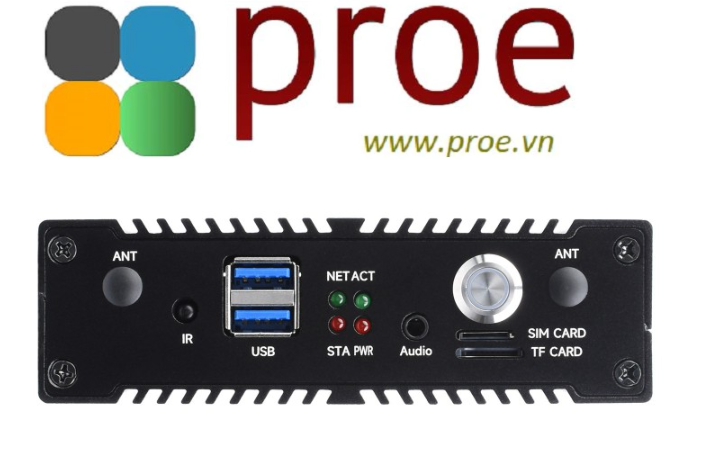

Onboard Rich Interfaces





Precise Cut-Out With Clear Label

Each Cut-Out Is Completely Aligned With The Connector

Application Example

Supports Connecting With Multiple Peripheral Devices, Suitable For Various Application Scenarios.

for reference only, please check the Package Content for the detailed part list

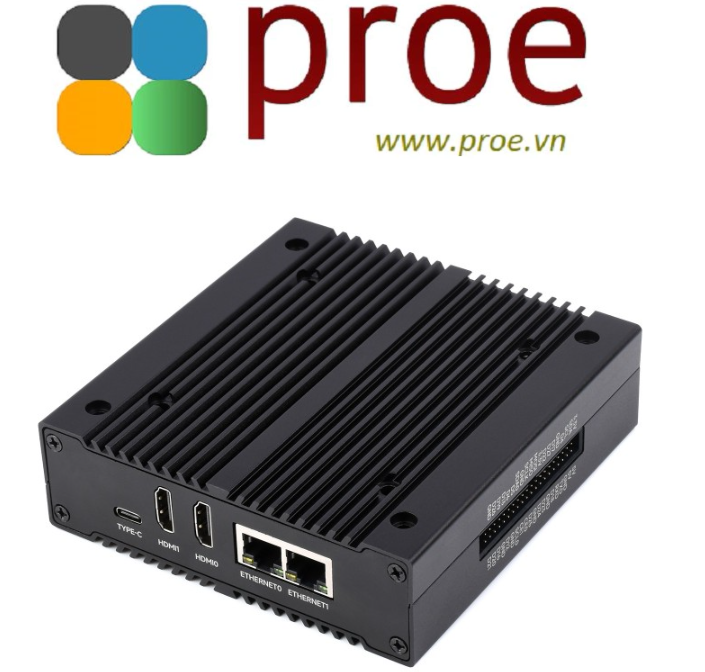

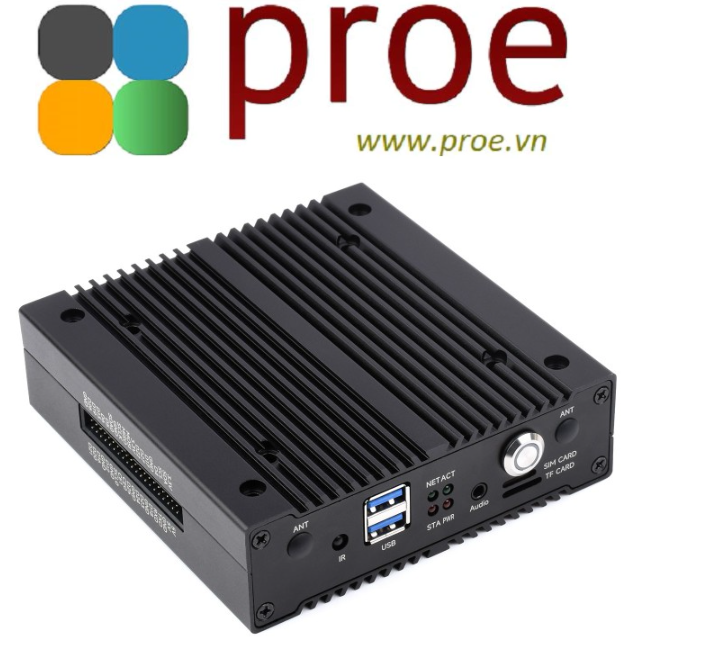

Product Show



Installation Instruction



* for reference only, the CM4 is NOT included.



Outline Dimensions
