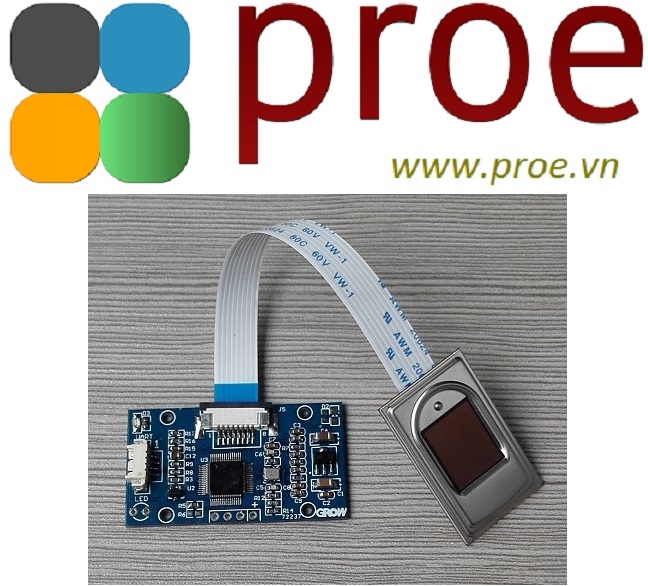

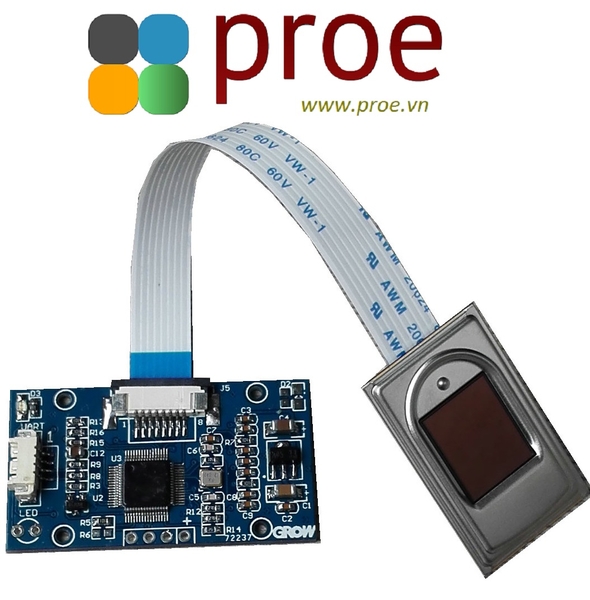

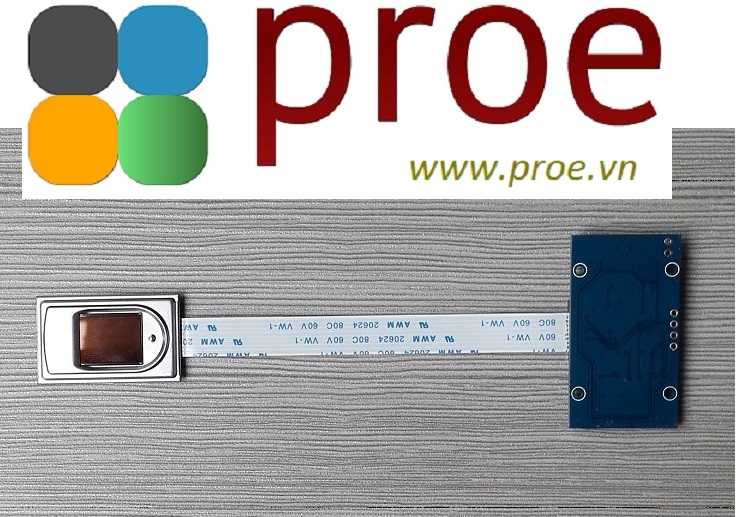

Cảm biến vân tay R306

Fingerprint reader R306(Capacitive )

Main Functions:
Communication interface :USB and UART

1:N Identification (One-to-Many)
1:1 Verification (One-to-One)
High speed fingerprint identification algorithm engine
Self study function
Fingerprint feature data read/write functions
Get Feature Data of Captured fingerprint and Verify/Identify Downloaded Feature withCaptured fingerprintIdentify Downloaded Feature with Captured fingerprint
Security Level setting
Able to set BaudRate/ Device ID/Device Password

Operating system:Windows 98, Me, NT4.0, 2000, XP,WIN 7 or Android

Specification:

 fingerprint sensor: FPC1011F3

Interface: USB 2.0 and  RS232 (TTL)

Communications baud rate (UART): (9600 × N) bps where N = 1 ~ 12 (default N = 6, ie 57600bps)

Dimension: 45*32mm

Fingerprint reader module size: 20 * 32 (mm)
Effective collection area: 12 * 15 (mm)

ScanningSpeed < 0.2 second

Verification Speed < 0.3 second

Matching Method: 1:1; 1:N

Resolution 363 DPI
Voltage :DC 4.2-6.0V

FRR (False Rejection Ratio):  ≤0.01%

FAR (False Acceptance Ratio): ≤0.00001%

Fingerprint capacity:1000

Antistatic capacity: 15KV

Abrasive resistance intensity: 1 million times

Peak power consumption: 60 mA

Work environment: -20°C ---55°C

Work Humidity: 10-90%

You can dowload R306 user manual from the following website:

https://www.dropbox.com/sh/orprmb3bgb6lqb6/AACpiIXOF91R7-RQ9OkD4JXha?dl=0

R306 fingerprint module circuit board diagram

R306  fingerprint sensor size chart
