Round 2D Codes Scanner Module, Barcode/QR code Reader, With LED Indicator, Small Size, Easy to Integrate
- Mã sản phẩm: Barcode Scanner Module (D)
- Nhà sản xuất: Waveshare
- Website hỗ trợ: https://www.proe.vn
Liên hệ
PACKEAGE CONTENT
Weight: 0.004 kg
- Barcode Scanner Module (D) x1
- 6PIN squid cable without header x1
- 6PIN squid cable x1
DESCRIPTION
Round 2D Codes Scanner Module, Barcode/QR Code Reader, With LED Indicator, Small Size, Easy To Integrate
2D Codes Scanner Module
1D/2D Codes Recognition | Small Size | Screen Scanning
The Barcode Scanner Module (D) is a round 2D barcode scanner module with LED indicator, highly integrated and compact size, suitable for elevator and other code scanning applications. Adopts advanced image recognition algorithms, easy to decode various 1D or 2D codes. Onboard UART interface, can be easily integrated into kinds of embedded devices.
Specifications
| RESOLUTION | 640 × 480 | ||
|---|---|---|---|
| SCAN ANGELS | horizontal 70°, vertical 55°, roll 360° | ||
| SCAN MODE | Sensing, Continuous | ||
| ACCURACY | 1D code ≥5mil 2D code ≥10mil |
||
| COMMUNICATION INTERFACE | UART port (9600 8N1 by default) | ||
| LED INDICATOR | Blue: scanning Green: decoded successfully |
||
| POWER SUPPLY | 3.3V | ||
| CURRENT | 120mA | ||
| PROTECTION | ESD PROTECTION | contact discharge 6 kV, air discharge ±12KV | |
| IP PROTECTION | IP54 (front side) | ||
| TEMPERATURE | OPERATING | -30 ~ +70°C | |
| STORAGE | -40 ~ +80°C | ||
| WORKING HUMIDITY | 5%RH ~ 95%RH (non-condensing) | ||
Decoding Capability
| CODE TYPE | BARCODE | DEFAULT READABLE | DEFAULT DISABLE |
|---|---|---|---|
| 2D | QR Code | √ | |
| DataMatrix | √ | ||
| PDF417 | √ | ||
| 1D | EAN-13 | √ | |
| EAN-8 | √ | ||
| UPC-A | √ | ||
| UPC-E | √ | ||
| Codabar | √ | ||
| Code 128 | √ | ||
| Code 93 | √ | ||
| Code 39 | √ | ||
| Code 11 | √ | ||
| Interleaved 2 of 5 | √ | ||
| Industrial 2 of 5 | √ | ||
| Matrix 2 of 5 | √ | ||
| CS Databar(RSS) | √ | ||
| MSI-Plessey | √ |
* Note: some supported barcode formats are disabled by default, you can scan 'configuration code' to enable it
Pin Description
| PIN | INPUT/OUTPUT | DEFINITION | DESCRIPTION |
|---|---|---|---|
| PIN1 | Ground | GND | - |
| PIN2 | Input | RX | Module TTL receive |
| PIN3 | Output | TX | Module TTL transmit |
| PIN4 | Power | VCC | 3.3V power supply |
| PIN5 | - | NC | Reserved |
| PIN6 | - | NC | Reserved |
LED Indicator
Application Example

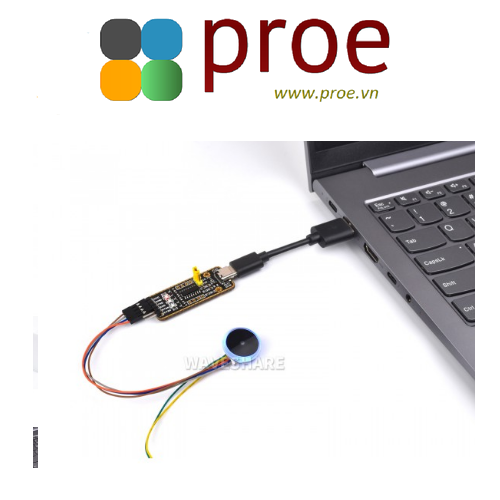

* for reference only, please refer to the Package Content for the detailed part list

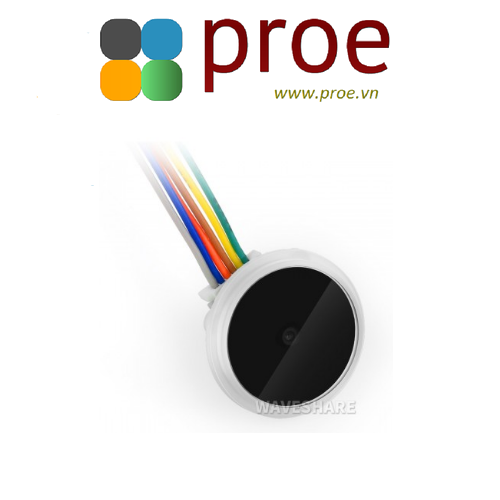

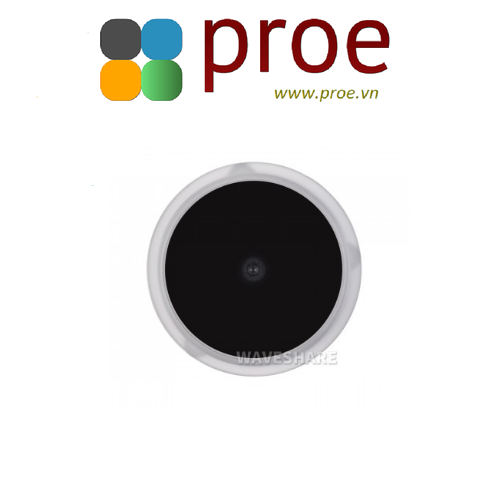

Product Show
Outline Dimensions
