Cảm biến khí gas MQ-5 Gas Sensor

  • Mã sản phẩm: MQ-5 Gas Sensor
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
180.000₫
PACKAGE CONTENT

Weight: 0.01 kg

  1. MQ-5 Gas Sensor x1
  2. 4-pin custom connector jumper wire x1

1

2

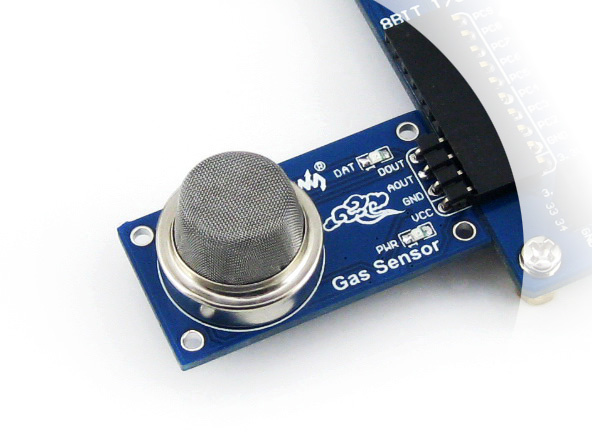

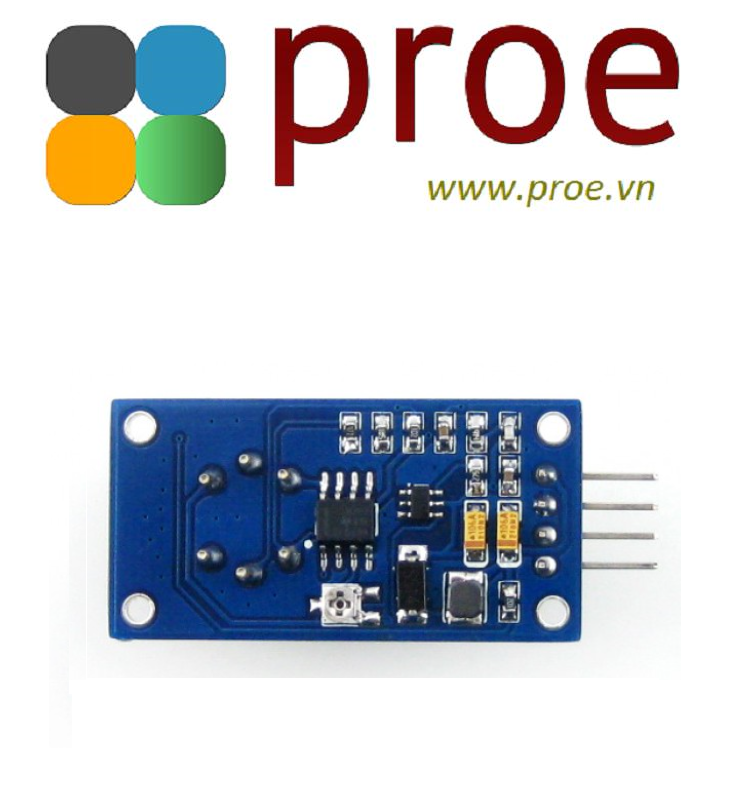

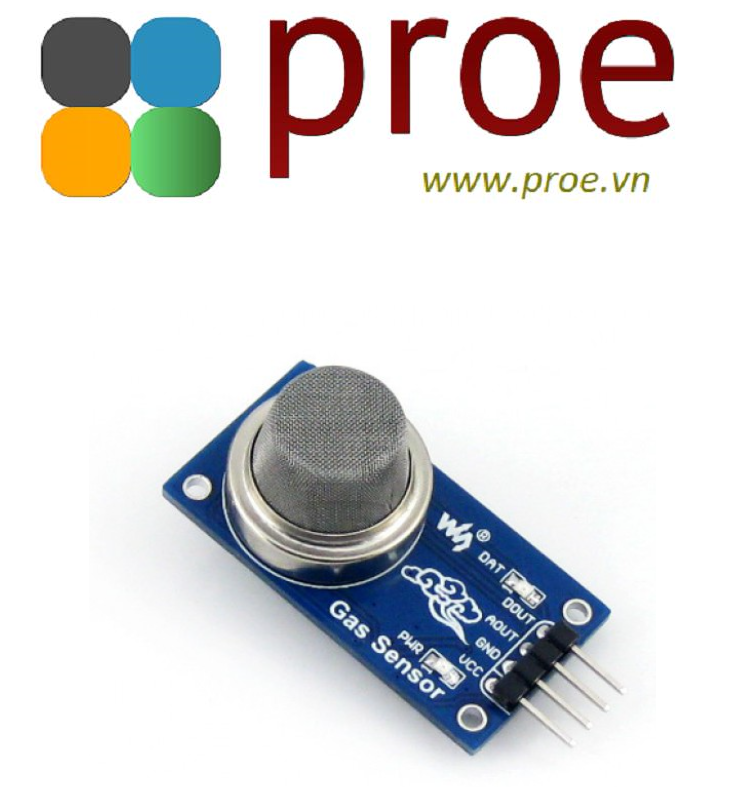

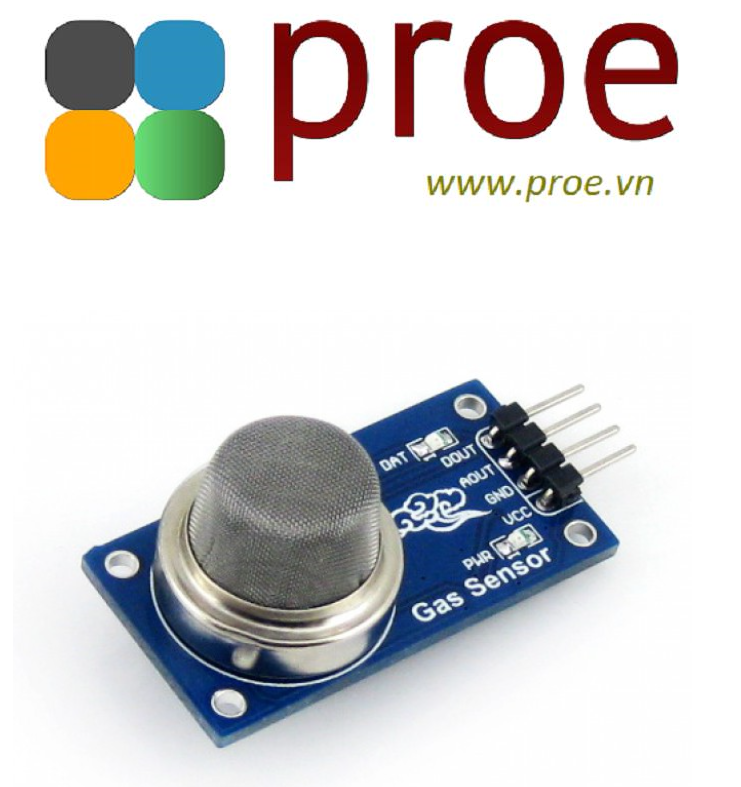

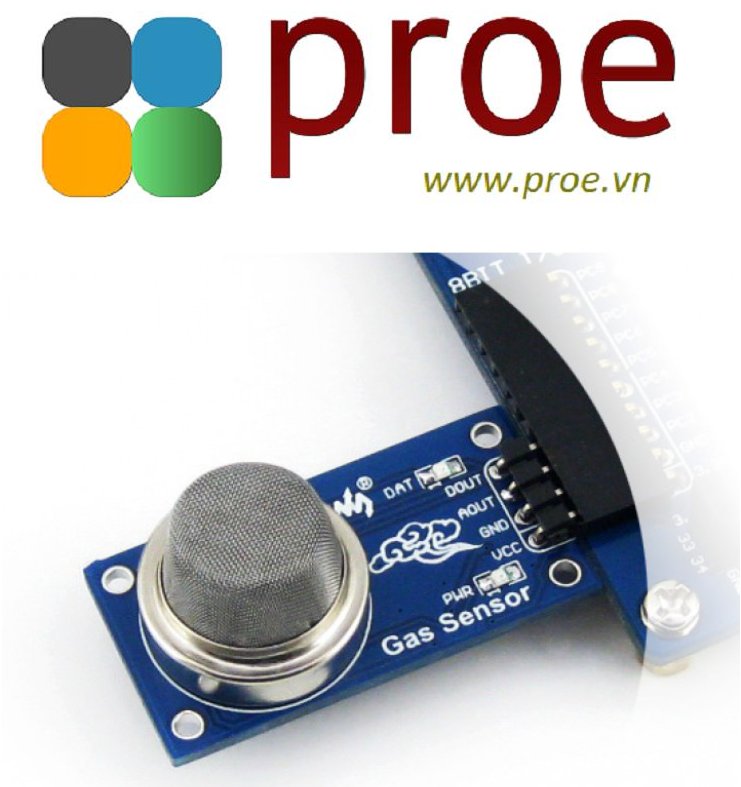

MQ-5 Gas Sensor

Overview

  • Sensitive for LPG, natural gas, coal gas
  • Output voltage boosts along with the concentration of the measured gases increases
  • Fast response and recovery
  • Adjustable sensitivity
  • Signal output indicator

Specifications

  • Power: 2.5V ~ 5.0V
  • Dimension: 40.0mm * 21.0mm
  • Mounting holes size: 2.0mm

Applications

  • Gas leakage detector

How to Use

In the case of working with a MCU:

  • VCC ↔ 2.5V ~ 5.0V
  • GND ↔ power supply ground
  • AOUT ↔ MCU.IO (analog output)
  • DOUT ↔ MCU.IO (digital output)

Photos


Downloads

Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/MQ-5_Gas_Sensor
