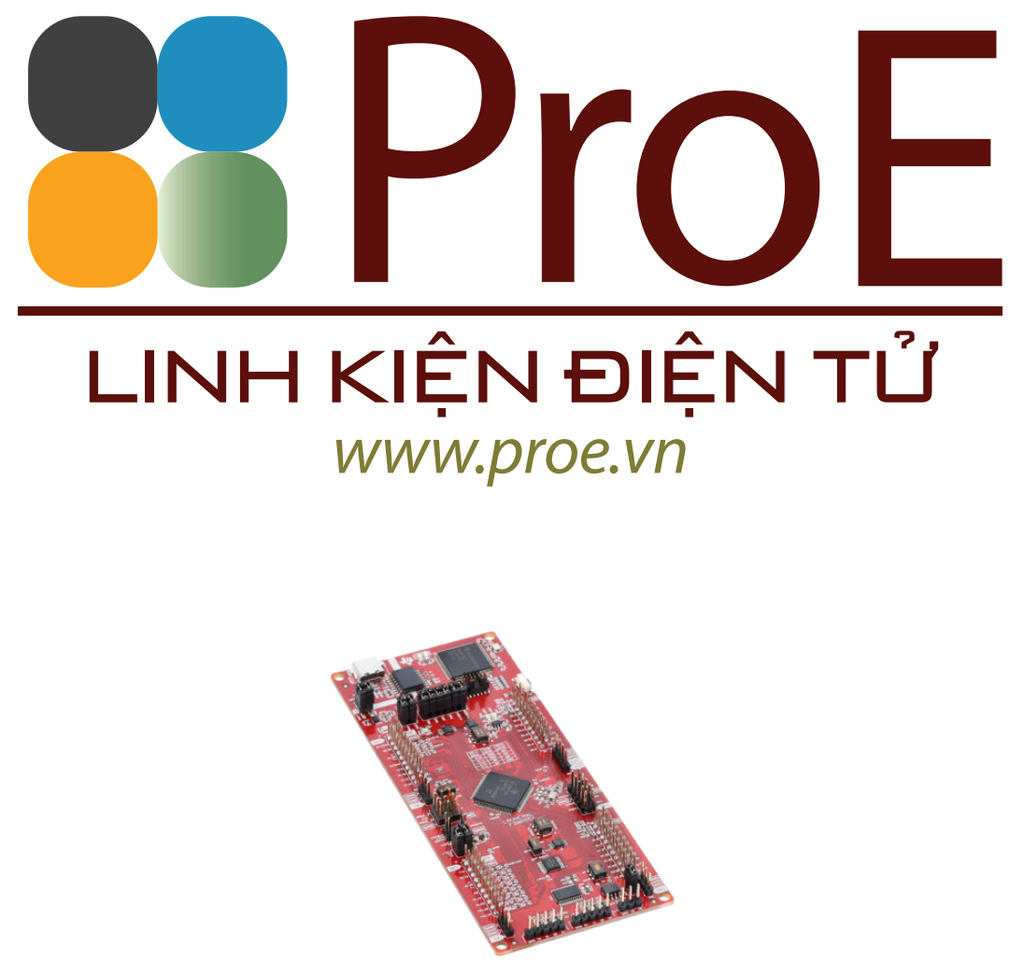

C2000™ real-time MCU F28P55X LaunchPad™ development kit

LAUNCHXL-F28P55X is a low-cost development board for TI C2000™ real-time microcontrollers series of F28P55x devices. Ideal for initial evaluation and prototyping, it provides a standardized and easy to use platform to develop your next application. This extended version LaunchPad™ developement kit offers extra pins for development and supports the connection of two BoosterPack™ plug-in modules. As part of the vast TI MCU LaunchPad ecosystem, it is also cross-compatible with a broad range of plug-in modules.

Features

• TMS320F28P550SJ9: 150 MHz C28x CPU with FPU and TMU, 150 MHz CLA, CLB, 1088 KB Flash, 5x 12-bit ADC, 24x PWM channels, 2x CANFD (MCAN), 3x encoder modules (eQEP), 3x PGAs, FSI, UART, and more
• On-board XDS110 debug probe for real-time debug and flash programming
• 80-pin LaunchPad leveraging the BoosterPack ecosystem
• Three PGA interface connectors
• On-board CAN transceiver and connector
• Two encoder interface (eQEP) connectors
• FSI interface connector

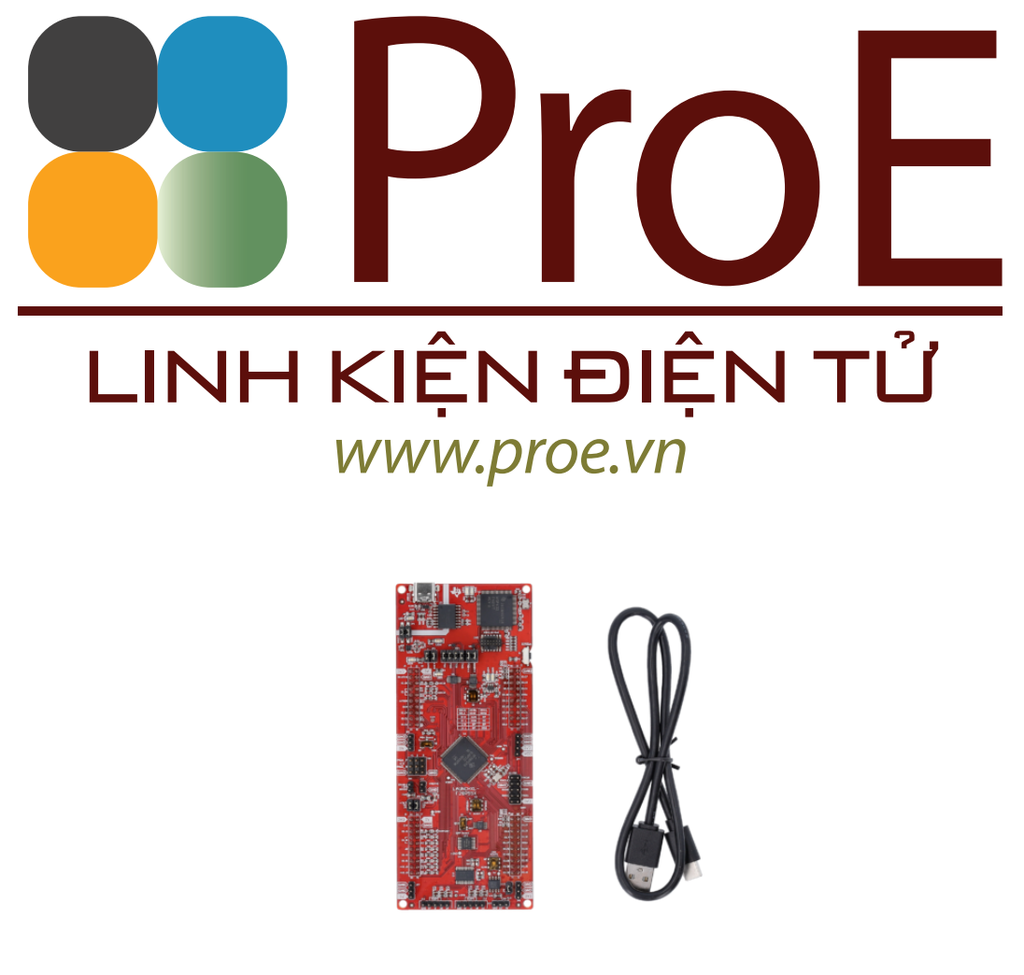

What's included

• C2000™ real-time MCU F28P55X LaunchPad development board
• USB Type-A male to USB Type-C™ male cable
• LaunchPad pinout map
