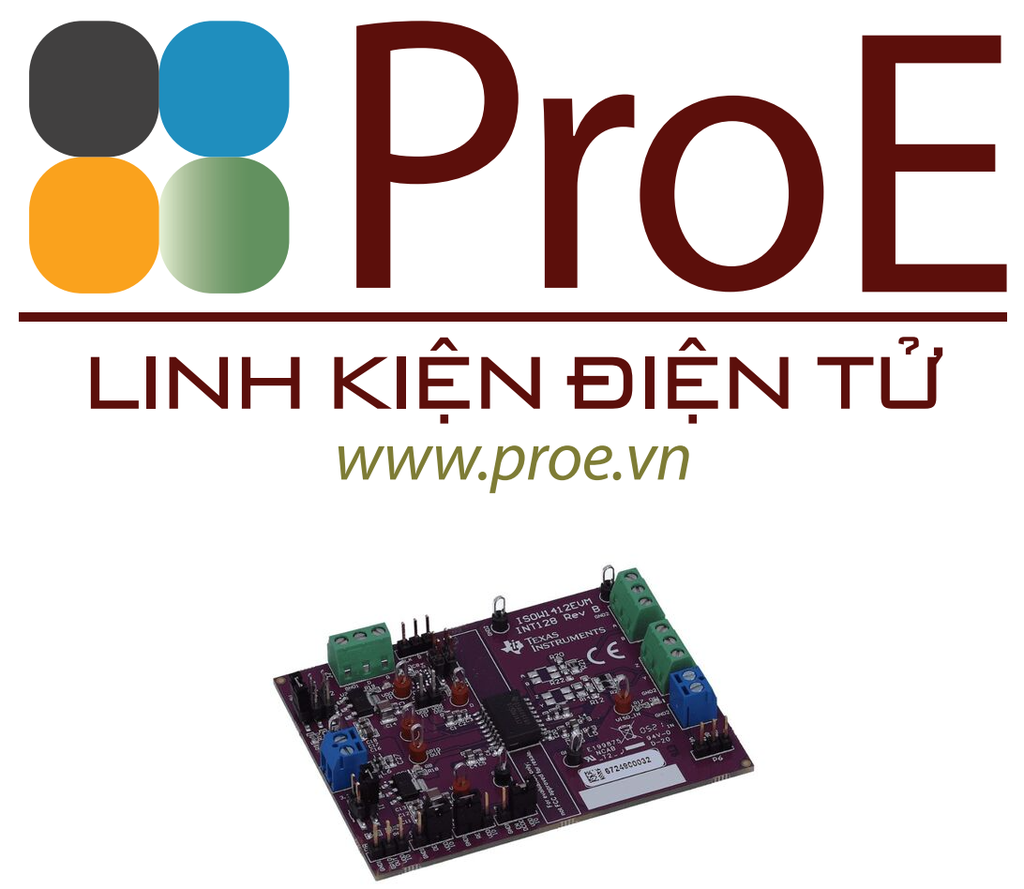

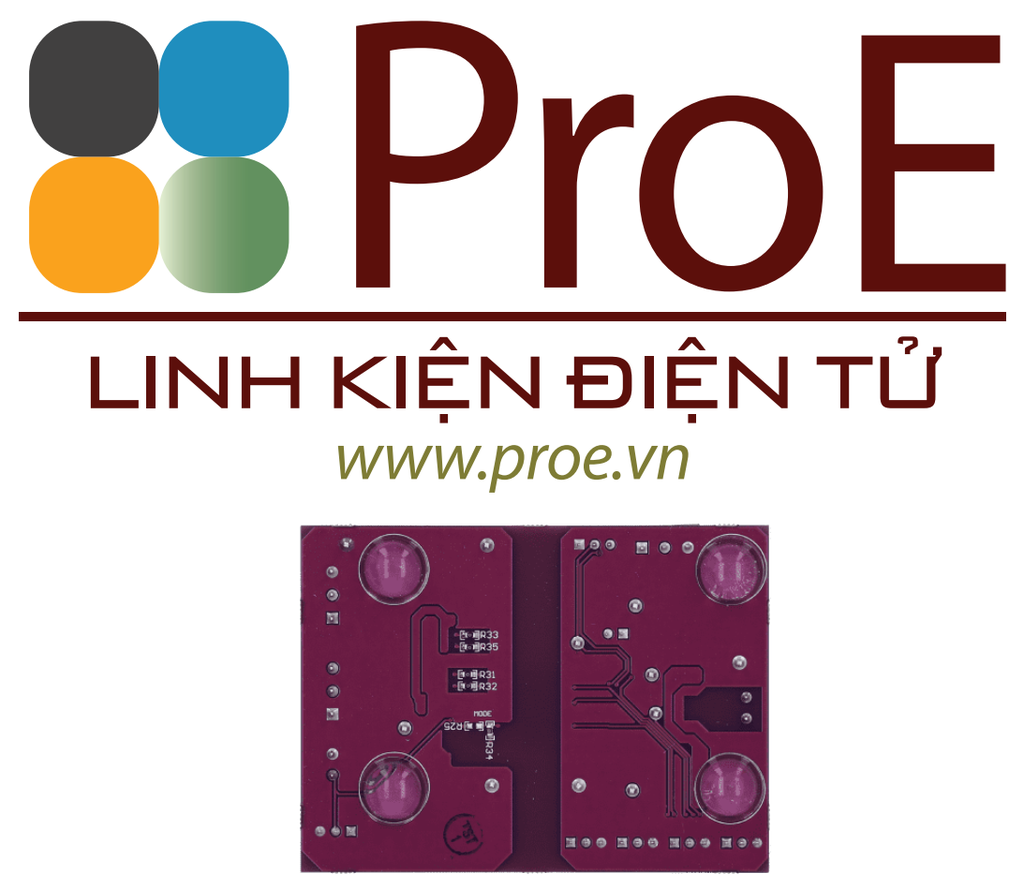

ISOW1412 isolated RS-485/RS-422 transceiver with integrated DC-DC converter evaluation module

ISOW1412DFMEVM is an evaluation module (EVM) used to evaluate the high performance, reinforced isolated RS-485/RS-422 with integrated isolated DC/DC power ISO1412 in a 20-pin wide body SOIC package (package dode-DFM). The EVM features enough test points and jumper options for one to evaluate the device with minimal external components.

• Isolated RS-485/RS-422 transceiver with integrated high-efficiency, low-emissions DC-DC converter
• Separate IO and DC/DC supply inputs
• Wide supply and logic level translation range for IO: 1.71 V to 5.5 V
• Supports 500 kbps datarate
• Isolation barrier life >40 years
• This EVM is tested and includes provisions for evaluation of device ISOW1412
