AM263Px Arm®-based MCU general-purpose LaunchPad™ development kit

AM263Px Arm®-based MCU general-purpose LaunchPad™ development kit

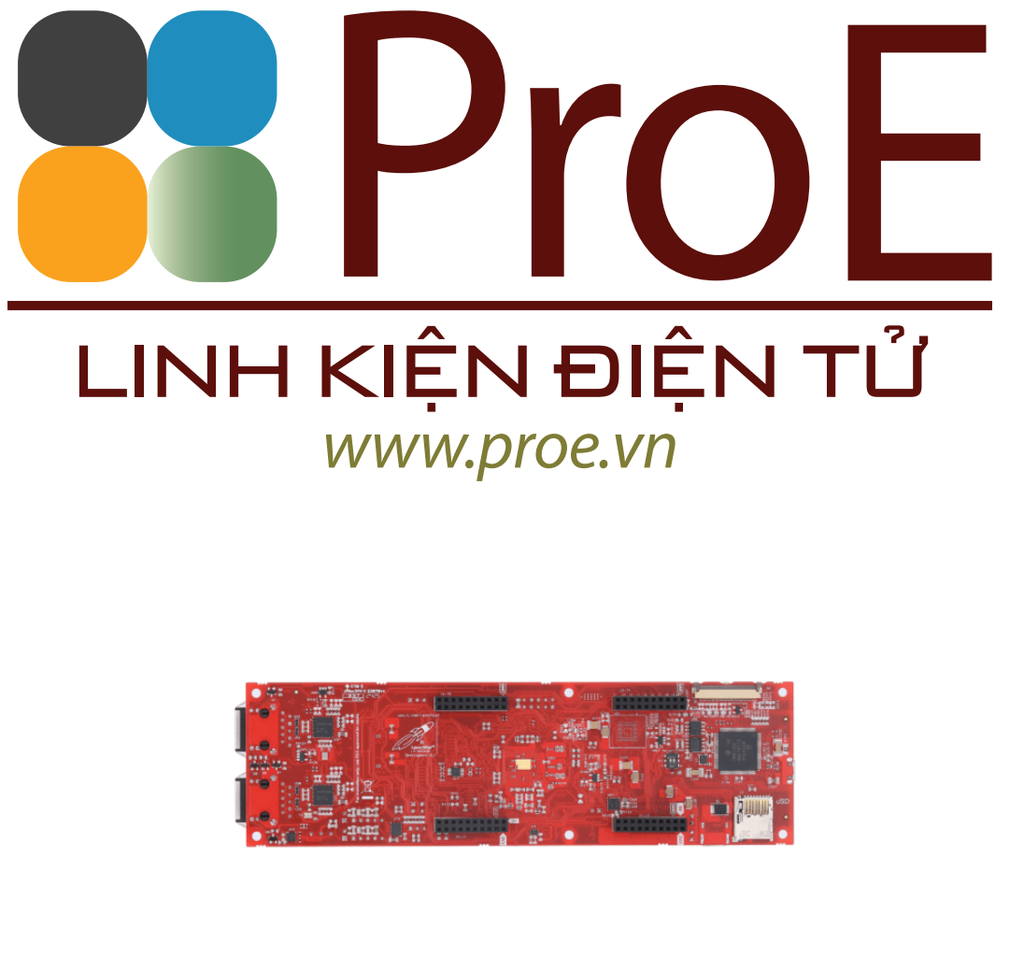

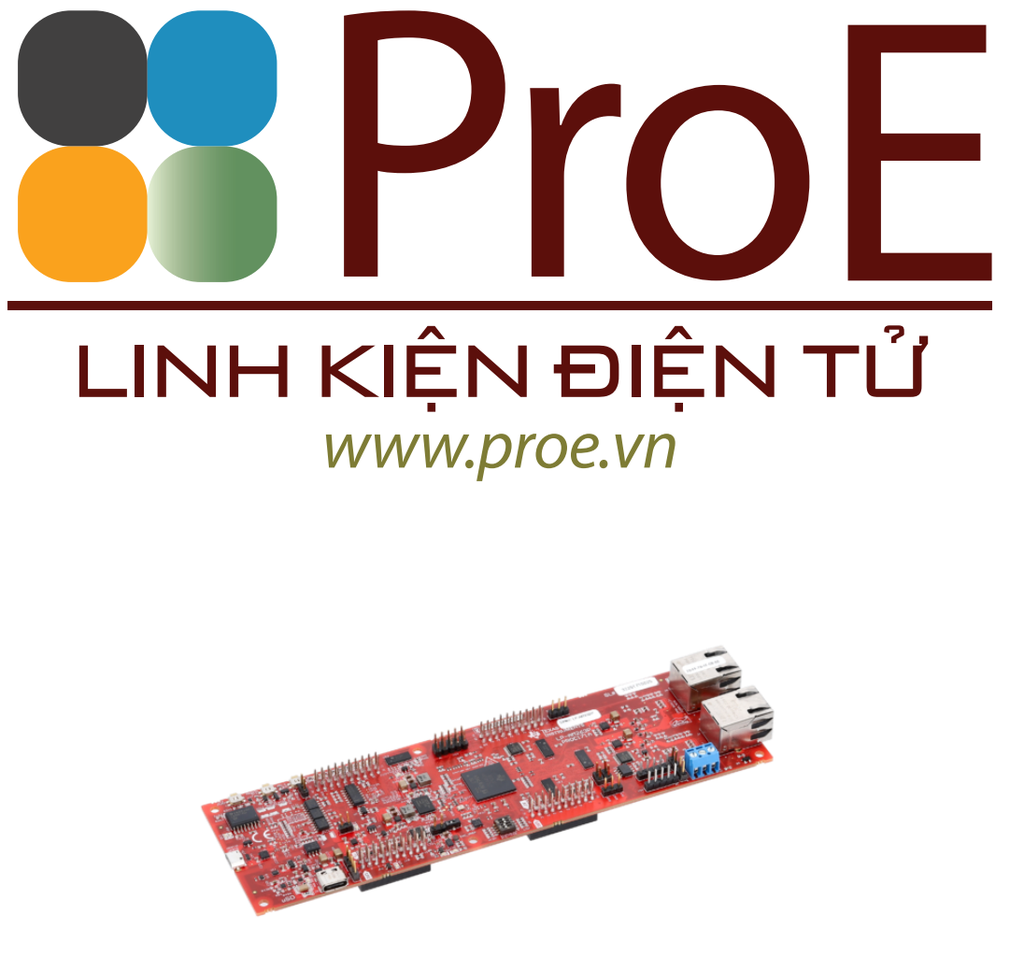

LP-AM263P is a cost-optimized development board for Sitara™ high-performance microcontrollers (MCUs) from the AM263Px series. This board is developed for initial evaluation and prototyping as it provides a standardized and easy-to-use platform to develop your next application.

LP-AM263P is equipped with a Sitara AM263P4 processor, along with additional components, allowing you to use various device interfaces, including industrial Ethernet (IE), standard Ethernet, fast serial interface (FSI) and others to easily create prototypes. AM263P4 supports a variety of IE protocols, such as EtherCAT, EtherNet/IP and PROFINET®.

The extended LaunchPad™ XL development kit offers additional I/O pins for development and supports connection of up to two BoosterPack™ plug-in modules. LP-AM263P also features an intuitive out-of-the-box user's guide to quickly start design evaluation.

Features

• AM263Px quad-core Arm® Cortex®-R5F MCU
• More peripherals supported with AM263Px I/O multiplexer (MUX) and onboard mux options
• Multiple industrial and automotive networking protocols supported through programmable real-time unit (PRU), modular controller area network (MCAN), local interconnect network (LIN), RGMII, RMII and MII interfaces
• MicroSD card slot for extended storage
• Onboard XDS110 JTAG debugger
• Onboard 256Mb OSPI flash
