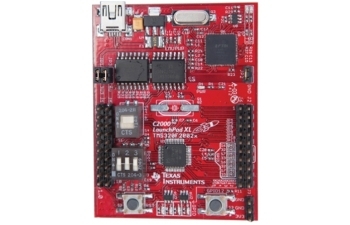

C2000 Piccolo LaunchPad

Description

The C2000™ Piccolo LaunchPad is an inexpensive, modular, and fun evaluation platform, enabling you to dive into real-time, closed-loop control development with Texas Instruments’ C2000™ 32-bit microcontroller family. This platform provides a great starting point for development of many common power electronics applications, including motor control, digital power supplies, solar inverters, digital LED lighting, precision sensing, and more.

To view all available C2000 LaunchPads and BoosterPacks, visit the C2000 LaunchPad site.

Hardware Features

The C2000 LaunchPad is based around the C2000 Piccolo TMS320F28027 MCU, which features a 60 MIPS processing core, 64 KB integrated flash, 8 PWM channels with high resolution capability, 12-bit 4.6 MSPS ADC, capture interface, serial connectivity, and more.

The board includes an isolated XDS100 JTAG emulator facilitating easy programming and debugging, 40 PCB pins providing easy access to the F28027 processor, convenient reset and programmable buttons, and more. Plus, with the BoosterPack ecosystem, designers can expand the functionality of the C2000 LaunchPad hardware to explore application use-cases.

Software Features

LaunchPad software example code, libraries, drivers, and more are provided for free through the C2000 MCU family’s controlSUITE™ software suite. Likewise, users get access to an unrestricted version of Code Composer Studio integrated development environment (IDE) for software development with the C2000 Piccolo TMS320F28027 microcontroller.

Getting Started

Getting started with your C2000 LaunchPad is easy, thanks to a simple and fun out-of-the box project:

Get started today with My First C2000 LaunchPad Project: Internal Temperature Measurement!
