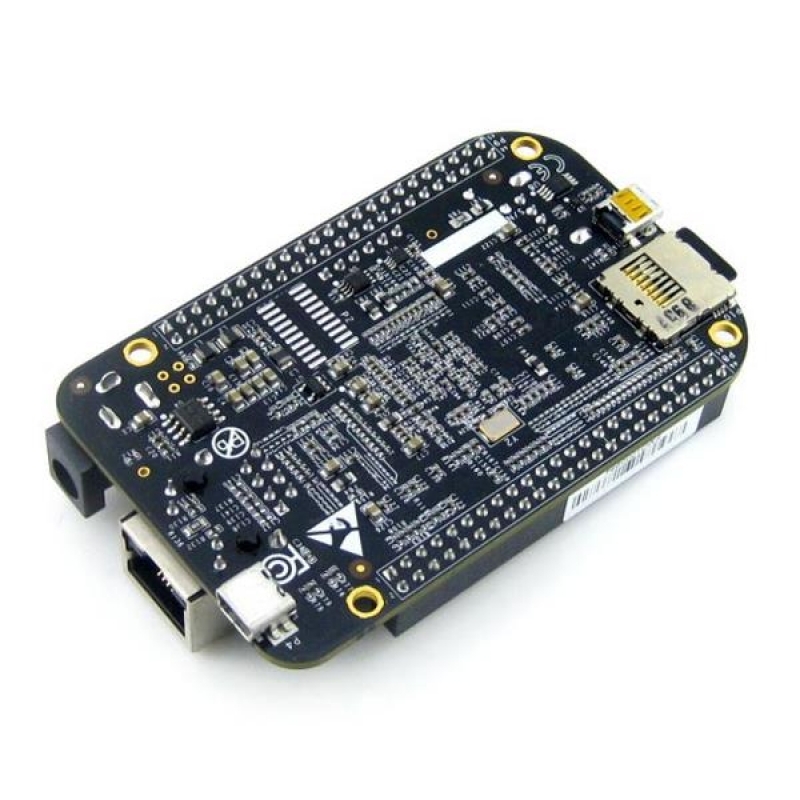

BeagleBone Black - Industrial Temp.

The Embedded Planet Beaglebon Black Industrial Temp is an industrial temperature (-40°C to 85°C), compact, cost-effective, and powerful platform for developing high performance applications including data acquisition, imaging, medical and industrial control. With the Texas Instruments Sitara AM3358 processor with ARM Cortex A8 at its core, the USB port and Ethernet port plus the EBC connector provide the necessary control I/O. The high level of integration increases performance, while lowering system power consumption and cost.

Specifications

• Type

  Kit Rev C

• Supported Device

  AM3358BZCZA100

• Supported Device Technology

  Microprocessor

• RAM Size

  512MB

• Program Memory Size

  4GB

• Program Memory Type

  Embedded MMC Flash

• USB

  2

• RS232

  0

• Ethernet

  1

• I2C

  1

• CAN

  2

• SATA

  0

• SPI

  1

• UART

  6

• ADC

  1

• GPIO

  65

• Display Interface

  HDMI

• Display Type

  LCD

• Operating Systems

  Android|Ubuntu

• PC Card Interface

  MMC/SD

• JTAG Support

  Yes

• Audio Interfaces

  No

• Main Program Memory Type

  Flash

• Android

  Android

• Daughter Cards

  Yes

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  85

• Supplier Temperature Grade

  Industrial
