Barcode Scanner Module (B)

PACKAGE CONTENT

Weight: 0.061 kg

1. Barcode Scanner Module (B) x1
2. USB type A plug to micro B plug cable x1
3. PH2.0 4Pin cable x1

1

2

3

2D Codes Scanner Module, Supports 4mil High-Density Barcode Scanning, Barcode/QR Code Reader

2D Codes Scanner Module

The Barcode Scanner Module (B) is a Barcode/QR codes scanner module, by using the intelligent image recognition algorithm, it can decode the 1D or 2D code on paper or screen fastly and accurately. Supports a variety of barcode formats and 4mil high-density barcode scanning. Onboard USB and UART interfaces, can be directly plugged into a computer, or be easily integrated into kinds of embedded devices.

Comparison

MODEL		Barcode Scanner Module	Barcode Scanner Module (B)
RESOLUTION		648 × 488	640 × 480
SCAN ANGELS		pitch ±60°, skew ±65°, roll 360°	pitch ±65°, skew ±65°, roll 360°
SCAN MODE		Sensing, Continuous, Command trigger, Manual (default)	Sensing, Continuous, Manual (default)
ACCURACY		-	≥4mil
COMMUNICATION INTERFACE		USB keyboard mode (default), USB virtual port, UART port
LIGHT SOURCE		White (Lighting) + Red (Aiming), both are visible light
POWER SUPPLY		5V	5V / 3.3V
CURRENT	OPERATING	135mA	262mA
	STANDBY	58mA	75mA
	BOOT	-	108mA
TEMPERATURE	OPERATING	-20 ~ +60°C
	STORAGE	-30 ~ +70°C

Decoding Capability

* Note: some supported barcode formats are disabled by default, you can scan 'configuration code' to enable it

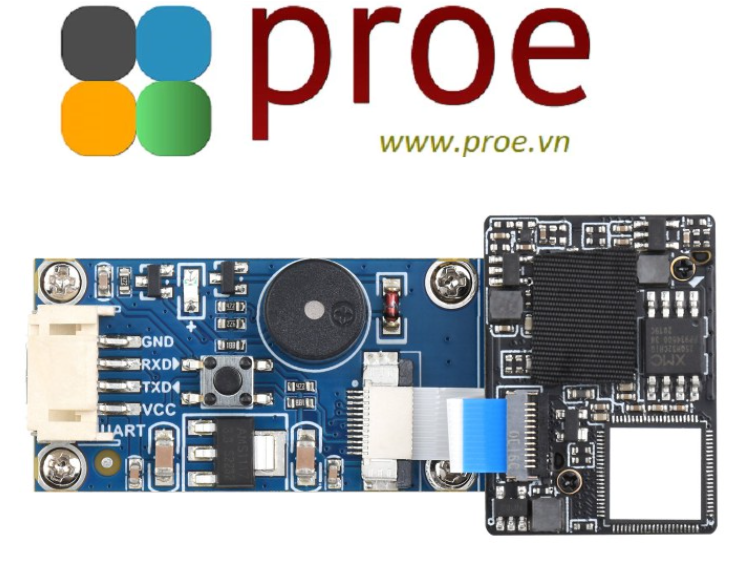

Onboard Resource

Product Show

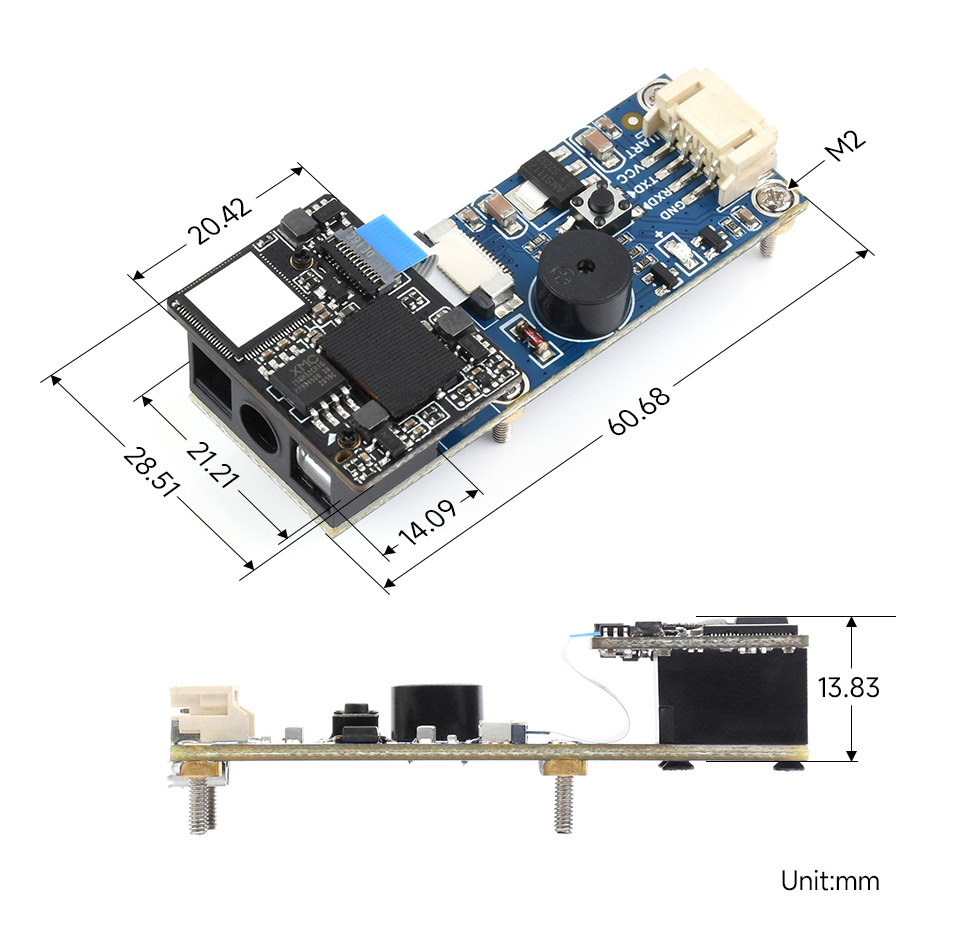

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/Barcode_Scanner_Module_(B)
