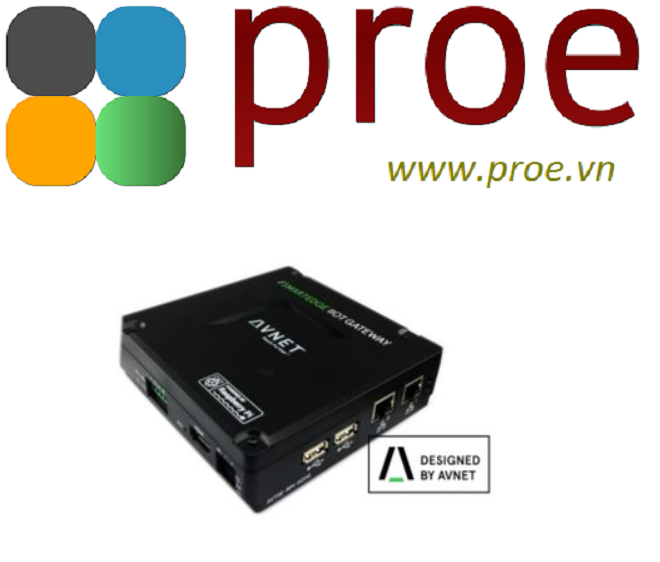

AVTSE-RPI-IIOTG SmartEdge Industrial IoT Gateway 12VDC to 24VDC

The Avnet SmartEdge Industrial IoT Gateway connects your sensors and other devices to the cloud. This allows you to view status and control connected devices from a customizable web portal from any internet connected location.

Key Features

RASPBERRY PI 3 CORE

• 64-Bit, Quad-core ARM A53 (Broadcom BCM2837) SoC
• Direct connection to enclosure heat sink for heat dissipation
• Maximum clock speed limited to 900MHz for enhanced thermal range
• 1GB LPDDR2 SDRAM
• WiFi/BT, 2.4GHZ, 802.11bgn, BT 4.2

STORAGE MEDIUM

• 8GB eMMC onboard

INPUT POWER

• Voltage: 12-24VDC Input
• Power: 12W minimum, 18W recommended. Additional power may be needed for installed USB devices or expansion cards (mPCIe or HATs). Be sure to verify the power supply high temperature derating for your application

ENVIRONMENTAL

• Ambient Operating Temperature Range: -20°C to 70°C

DIMENSIONING & MOUNTING

• Dimensions: 125mm W x 127mm D x 43mm H (55mm H with included expansion ring)
• Weight: 0.4kg
• Mounting: Desktop, Wall (sheet metal screws included), or DIN Rail (w/ included DIN rail bracket for 35mm "top hat")

FRONT PANEL LEDS

• Power / Activity LED
  • Green indicates valid power
  • Red flashing indicates disk activity by default, but configurable
• User LED
  • Controlled from user code

HARDWARE WATCHDOG TIMER (WDT)

• Selectable timeout (1-255 seconds)

TRUSTED PLATFORM MODULE (TPM) & SECURE BOOT

• SLB9670 TCG 2.0 Trusted Platform Module
• Secure Boot Option when used with Avnet's Image

REAL-TIME CLOCK (RTC) WITH BATTERY BACKUP

• PCF8563 real-time clock
• BR1225 backup battery
