Microchip's WINC1500 is an IEEE 802.11 b/g/n IoT network controller. It is the ideal add-on to existing MCU solutions bringing Wi-Fi and Network capabilities through SPI-to-Wi-Fi interface. The WINC1500 connects to any SAM, PIC24 and PIC32 MCU with minimal resource requirements. The WINC1500's most advanced mode is a single stream 1x1 802.11n mode providing up to 72 Mbps PHY throughput.

The WINC1500 features a fully integrated Power Amplifier, LNA, Switch and Power Management. The WINC1500 provides internal Flash memory as well as multiple peripheral interfaces including UART and SPI. The only external clock source needed for the WINC1500 is a high-speed crystal or oscillator (26 MHz). The WINC1500 is available in a QFN package or as a certified module.

The ATWINC1500 has 4 Mb of flash memory which can be used for system software. The ATWINC1510 has 8 Mb flash memory for even greater flexibility.



Features

• • • Single-band 2.4GHz b/g/n
    • Extreme low power
    • Compact footprint: 5 x 5 mm QFN
    • Operating voltage: 3.0V to 4.2V
    • Serial host interface: SPI
    • Security protocols supported:  WPA/WPA2 Personal, TLS, SSL
    • Network services:  DHCP, DNS, TCP/IP (IPv4), UDP, HTTP, HTTPS
    • Antenna Options:

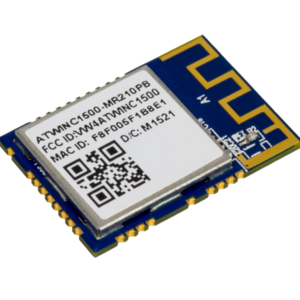

      • Chip and PCB antenna (ATWINC1500-MR210PB)
      • Chip and u.FL connector (ATWINC1500-MR210UB)
    • Available in a fully-certified module package:
      • ATWINC1500-MR210PB1952 (4Mb flash)
      • ATWINC1510-MR210PB1952 (8Mb flash)
    • Part numbers reflect SW version, now available with SDK v19.5.2
      • ATWINC15x0-MR210xB1952
        • Recommended for new designs
        • SDK 19.5.2 with TLS v1.2 server mode support, Crypto ECC508 integration, WPA2 security to AP mode & more
        • Integrated into Atmel Studio 7 - See ASF release notes
      • ATWINC1510-MR210PB1944 (Legacy SDK)
    • Atmel Software Framework (ASF) Free Software download available



Parameter Name

Value

Type

Wi-Fi Module

Output Power (dBm)

17 dBm

Host Interface

SPI

Pin Count

28

Package

Surface Mount Module

RF Transceiver

Yes

Operating Temperature Range

-40 to +85C

Frequency Range

2.412-2.472 MHz

Rx Input Sensitivity (dB)

-95

TX Current Consumption

172 mA

RX Current Consumption

70 mA

Antenna

PCB, U.FL

Operating Voltage Range

3.0V to 4.2V

SPI

1

UART

1

Cloud Partners

Yes
