Arducam NOIR 8MP Sony IMX219
- Mã sản phẩm: B0153
- Nhà sản xuất: uctronics
- Website hỗ trợ: https://www.proe.vn
2.500.000₫

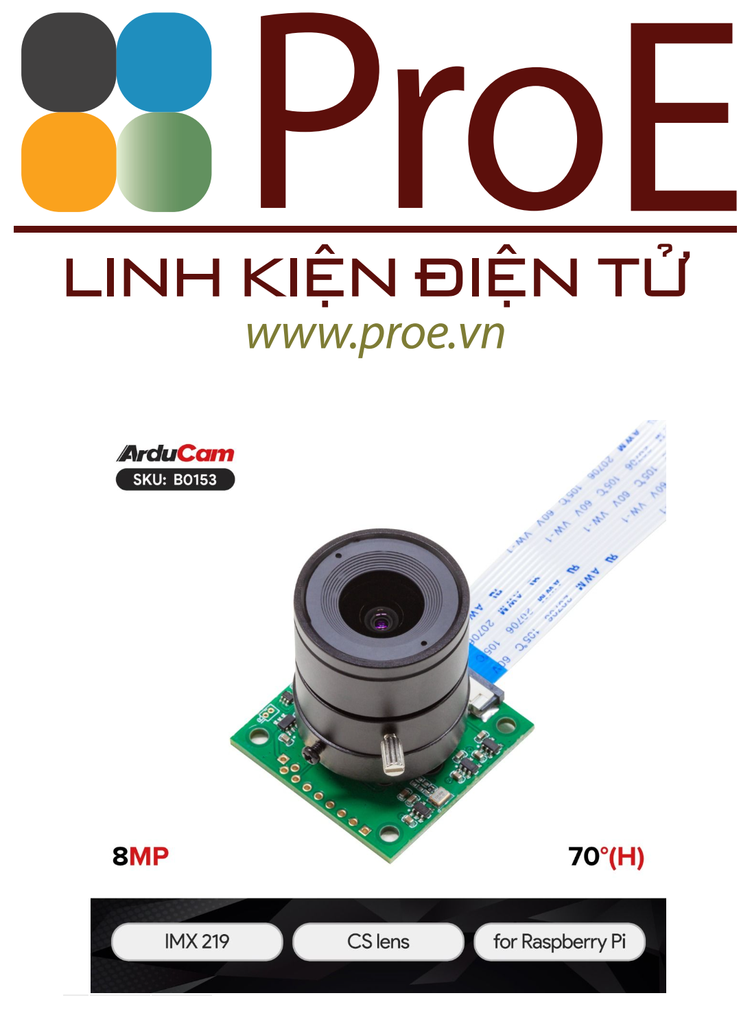

Arducam NOIR 8MP Sony IMX219 camera module with CS lens 2718 for Raspberry Pi 4/3B+/3
Overview
ArduCAM team just released a 8MP Raspberry Pi compatible camera based on the same Sony IMX219 image sensor. It’s capable of 3280 x 2464 pixel static images. It attaches to Pi by the dedicated standard CSi interface.
It is supplementary for Raspberry Pi official camera in order to fulfill the demands for different lens mounts, field of view (FOV) and depth of the field (DOF) as well as the motorized IR cut filter for both daylight and night vision.
There is wide range of lens options that can be chosen from us:
Applications
- Cellular phones, PDAs, Toys
- Other battery-powered products
- Wildlife Photograph
- Home Security Supervise
- Recording slow motion
- Machine vision, etc.
Specifications
Camera
| Image Sensor | IMX219 |
| Still Resolution | 8 Megapixels |
| Video Modes | 1080p47, 1640 × 1232p41 and 640 × 480p206 |
| Sensor Resolution | 3280 × 2464 pixels |
| Sensor image area | 3.68 x 2.76 mm (4.6 mm diagonal) |
| Pixel Size | 1.12 µm x 1.12 µm |
| Optical Size | 1/4" |
| IR Sensitivity | without IR-cut filter, sensitive to IR light |
| Supported Platform | Raspberry Pi 5/4B/3B+/3/2/CM3/CM4/Zero W/Zero 2 W |
Lens
| Focus Type | Manual Focus |
|---|---|
| Focal Length | 4.0mm |
| F.NO | F1.4 |
| Field of View(FOV) | 70°(H) |
| Lens Mount | CS Mount |
Electrical & Mechanical
| Camera Board Size | 36 x 36mm |
| Peaking Current | 300mA |
Package Including
- 1 x 8 Megapixels IMX219 Sensor Camera Module
- 1 x 15cm 15pin FPC cable
- 1 x 15cm 15-22pin FPC cable
Note
- The package does not include any Raspberry Pi motherboard.
- The drop-in replacement module does not include FPC cables and any camera boards. And it requires the use of the Raspberry Pi V2 camera board to function properly.
- The lenses of all camera modules are not interchangeable. Please contact sales in advance if you need to replace them.
| Note on Supported Raspberry Pi Boards and OS | |||
|---|---|---|---|
| Platform | Bookworm(rpicam) | Bullseye(libcamera) | Buster(raspistill) |
| Raspberry Pi 5 | √ | ||
| Raspberry Pi 4B / 3B+ / 3A+ / Zero / Zero 2 W | √ | √ | |
| Raspberry Pi CM3 / CM3+ / CM4 / CM5 (extra carrier board required) |
√ | √ | √ |
Documentations
- Used on Pi- Arducam 8MP IMX219 Standrad Camera Module
- Sensor Datasheet – Sony IMX219
- Arducam Documentation – Arducam Cameras for Raspberry Pi
Blog
- Blog – Arducam 8 MP NOIR Sony IMX219 CS Mount Pi Camera
More information:
Lens specification:
