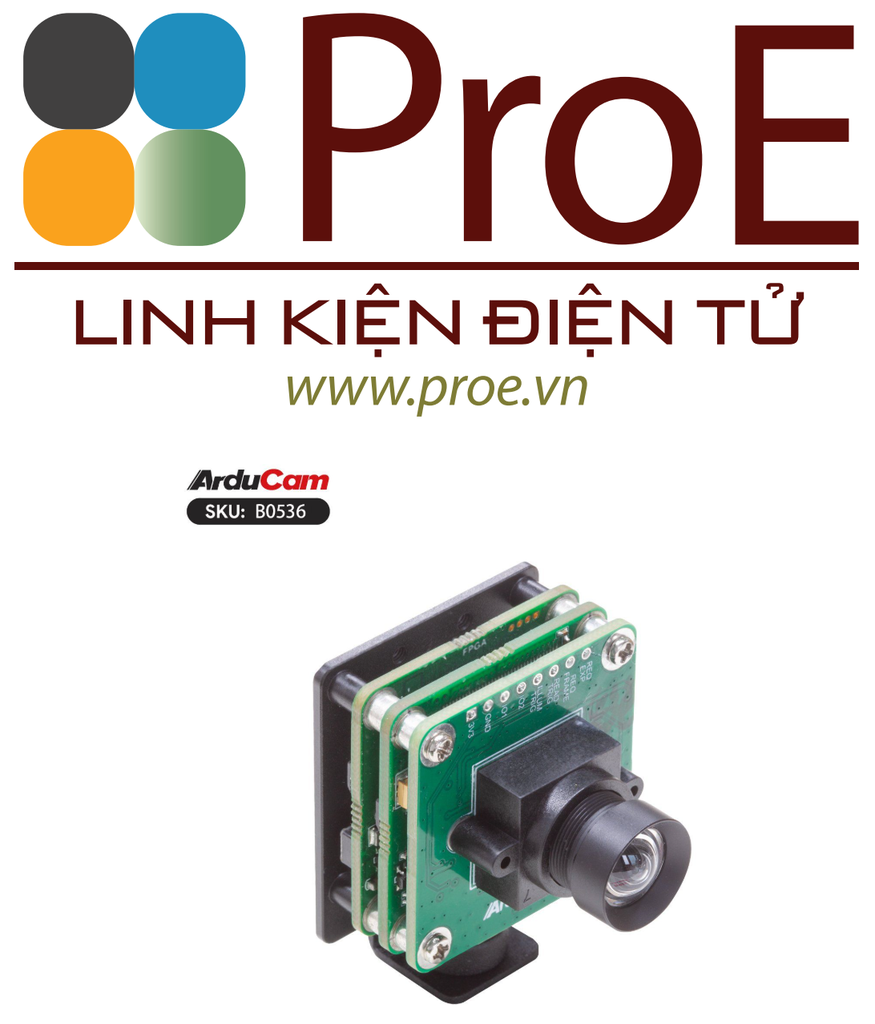

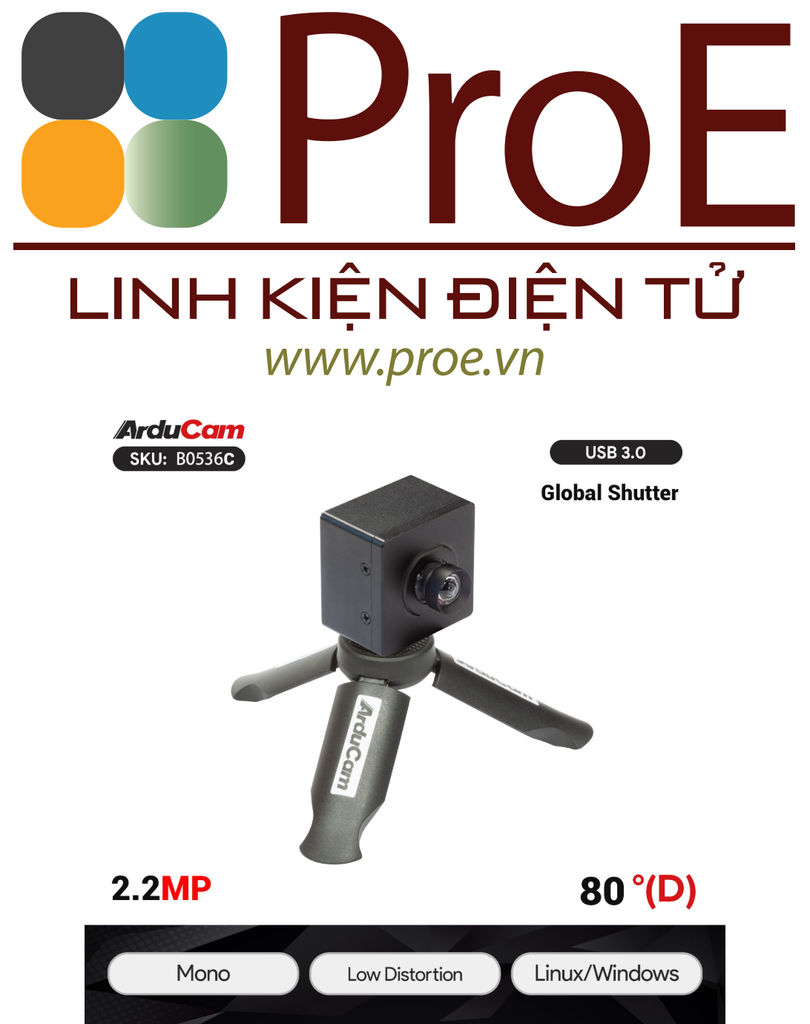

Arducam 2.2MP Mira220 MONO Global Shutter USB 3.0 Camera-With Enclosure
- Mã sản phẩm: B0536C
- Nhà sản xuất: uctronics
- Website hỗ trợ: https://www.proe.vn
8.800.000₫
Overview
The Arducam UVC3.0 Global Shutter Series Mira220 USB 3.0 camera features a 1/2.7" 2.2MP NIR-enhanced global shutter sensor, delivering Class-leading QE at 940nm. Designed for low-light environments, this camera provides exceptional clarity for high-demand imaging applications.
With support for frame rates up to 80fps, the Mira220’s low-distortion M12 lens captures sharp, distortion-free images, even in fast-moving scenes. Advanced ISP technology enhances image quality through debayering, gamma correction, and color correction, ensuring accuracy and vibrant detail.

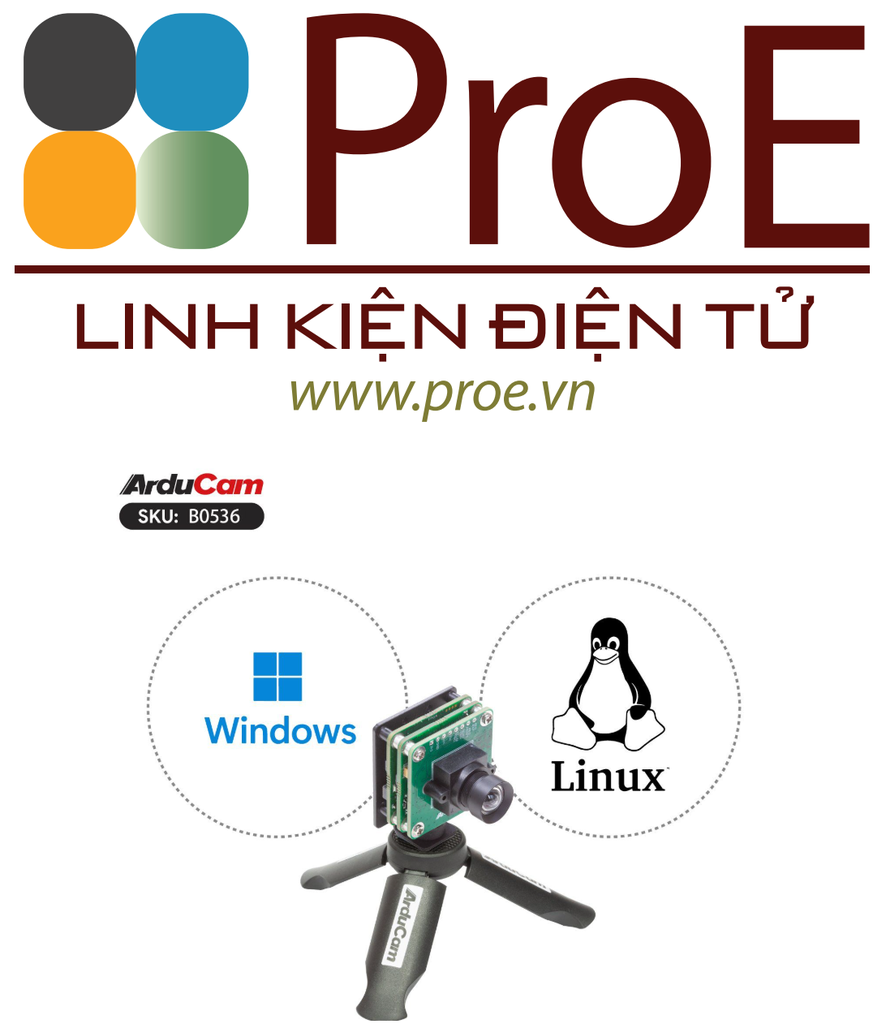

Enjoy easy plug-and-play functionality on Windows and Linux with USB 3.0 compatibility—no drivers required. Backward compatible with USB 2.0, the Mira220 provides versatile and reliable performance, making it ideal for high-speed imaging needs and professional results.
Applications
- Mobile Facial Authentication
- Active Stereo Vision/Structured Light Vision
- Automatic Identification and Data Capture (AIDC)/QR Readers/Drones
- Smart Home Appliances
- SLAM for Robotics/Smart Home Appliances
Features

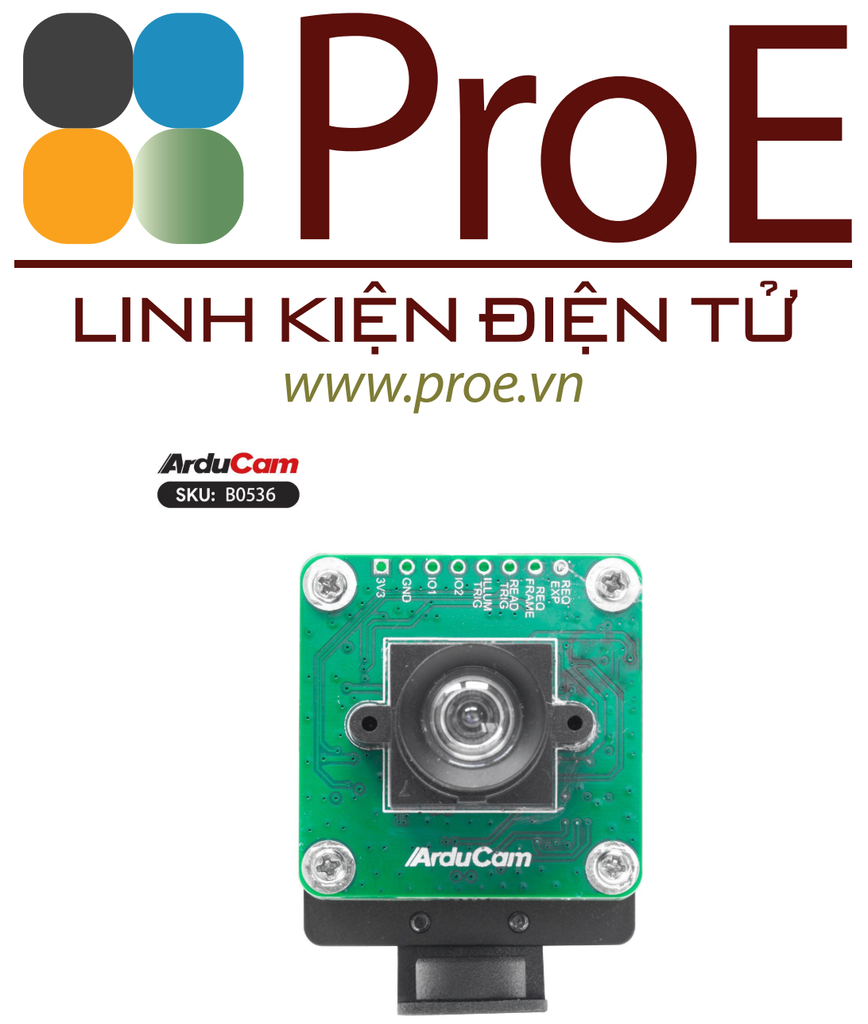

- Enhanced Global Shutter CMOS: The 2.2MP Mira220 mono image sensor, combines global shutter and BSI technology for outstanding image quality.
- Fast Capture: Supports up to 80fps for real-time imaging in dynamic applications.

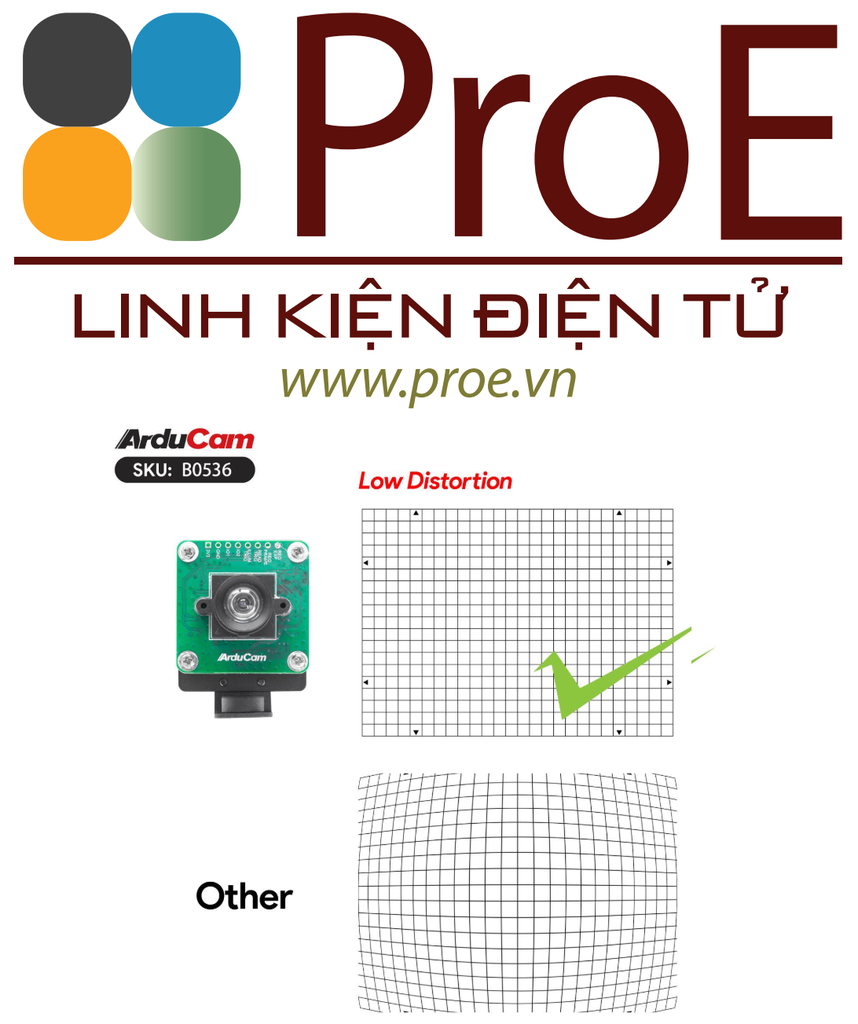

- Low Distortion M12 Lens: High-resolution M12 lens delivers sharper, clearer images.
- High NIR Sensitivity: Industry-leading QE at 940nm, ideal for low-light conditions.
- Advanced On-Board ISP: Enhances image quality with de-Bayer, gamma correction, AE, and RGB2YUV conversion.
Specifications
| Image Sensor | |
| Sensor | Mira 220 |
| Still Resolution | 2.2MP |
| Color Filter Type | Mono |
| Shutter Type | Global Shutter |
| Optical Size | 1/2.7" |
| Output Format | YUY2 |
| Pixel Size | 2.79μmx 2.79μm |
| Sensor Active Area | 1600(H)×1400(V) |
| Frame Rate (USB 3.0) | 1600*1400@30fps, 640*480@80fps |
| Frame Rate (USB 2.0) | 640*480@10fps |
| Lens | |
| Focus Type | Manual Focus |
| FOV | 80°(D)×68°(H)×53°(V) |
| Lens Mount | M12 (S-mount) |
| F.NO | F2.8 |
| E.F.L | 3.6mm |
| IR Sensitivity | No IR-cut filter, sensitive to IR |
| Default Focus Range | 1m-∞ |
| USB Interface | |
| Interface | USB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts |

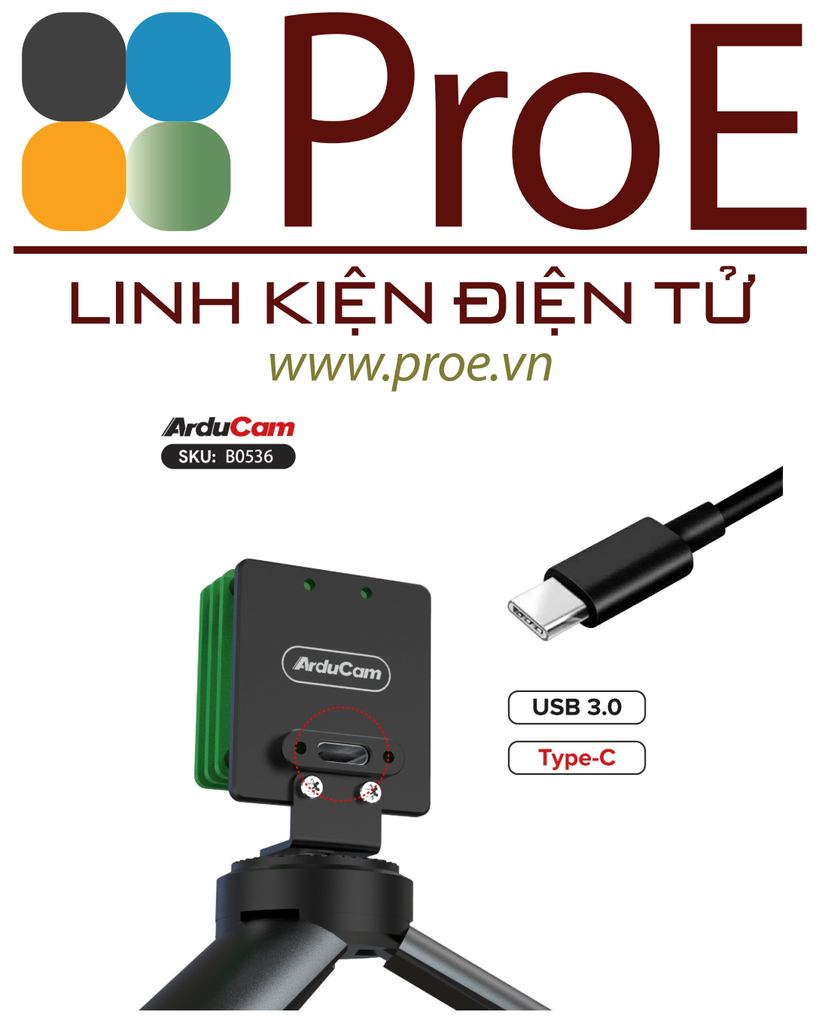

| Connector | Type-C reversible interface connector |
| UVC Compliant | No additional drivers required |
| Electrical and Mechanical | |
| Operating Voltage | 5 V +/- 5% |
| Operating Temp. | 32°F-158°F (0°C to 70°C) |
| Power Requirements | Max: 1.4W |
| Camera Board Size | 34×34 mm |
| Functionality and Compatibility | |
| Supported OS | Windows, Linux |
| Recommend Sample Application | PotPlayer for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Exposure (Manual/Auto) |
Package Including

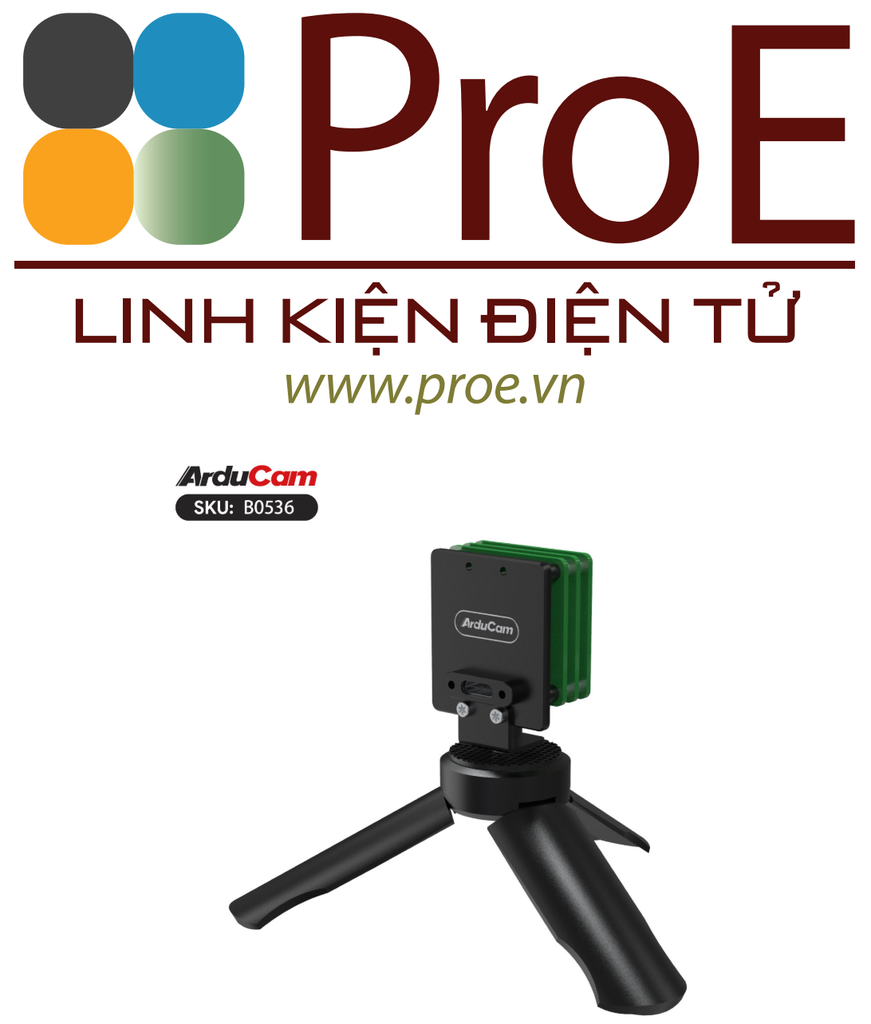

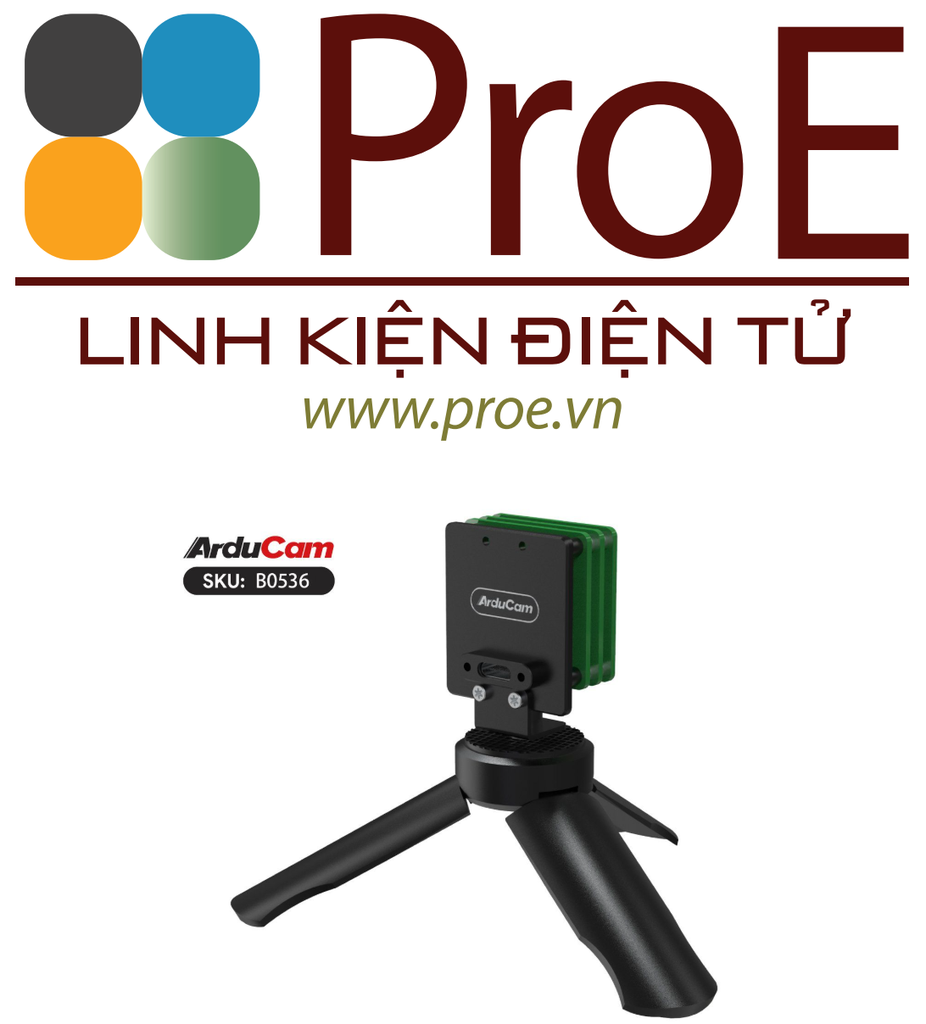

- 1 x Mira220 MONO USB3 Camera with Back Cover and Tripod Adapter

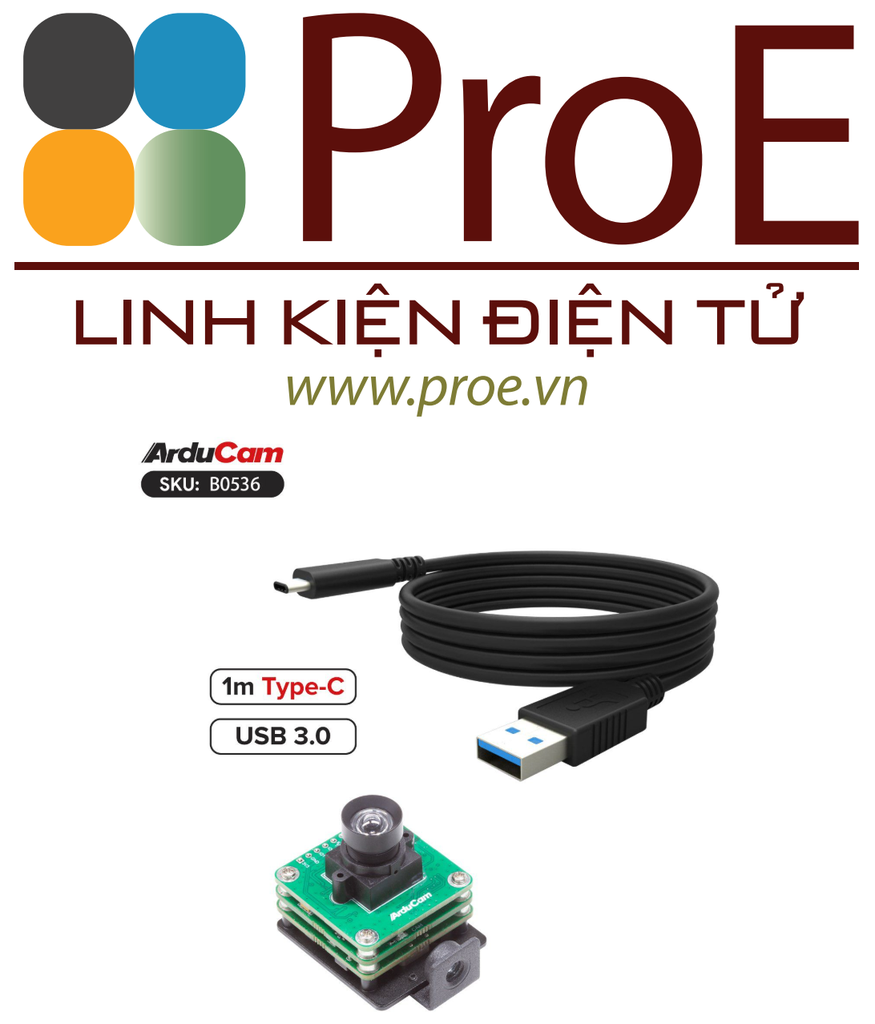

- 1 x USB A to Type-C Cable (1m)
Note
- The package contains small contents, please keep it away from children to avoid accidental ingestion
- After receiving the package, please confirm whether the contents of the package are consistent with the description
- Tripod is not included in the package, please check UB0224 and UB0216 for additional purchase.
