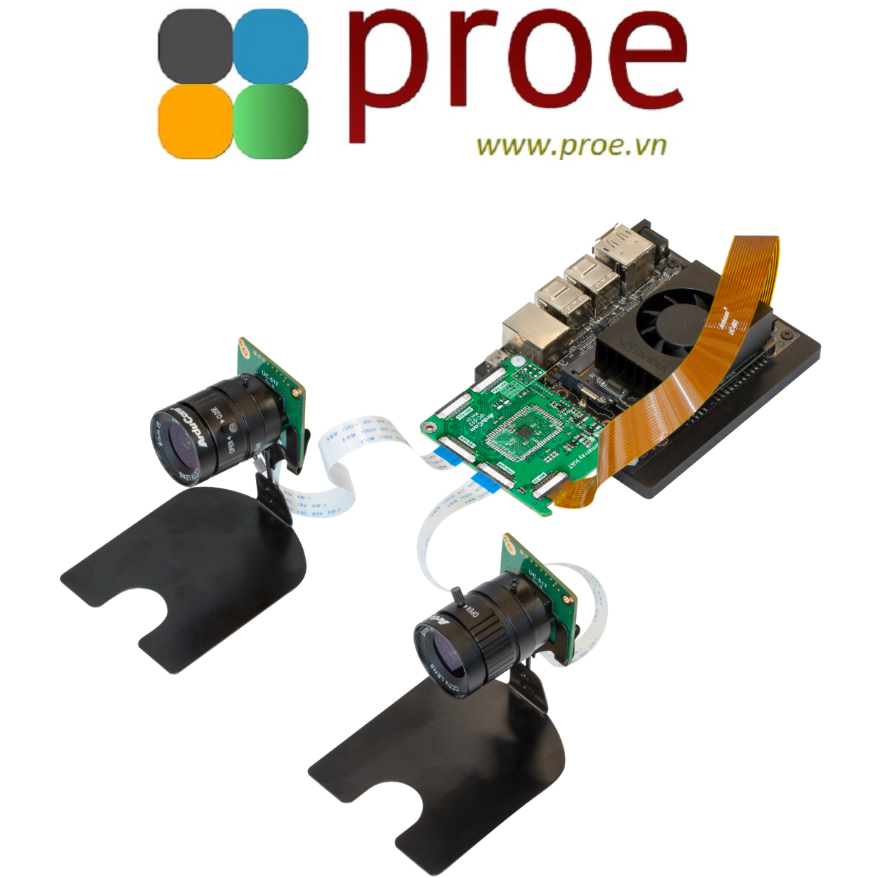

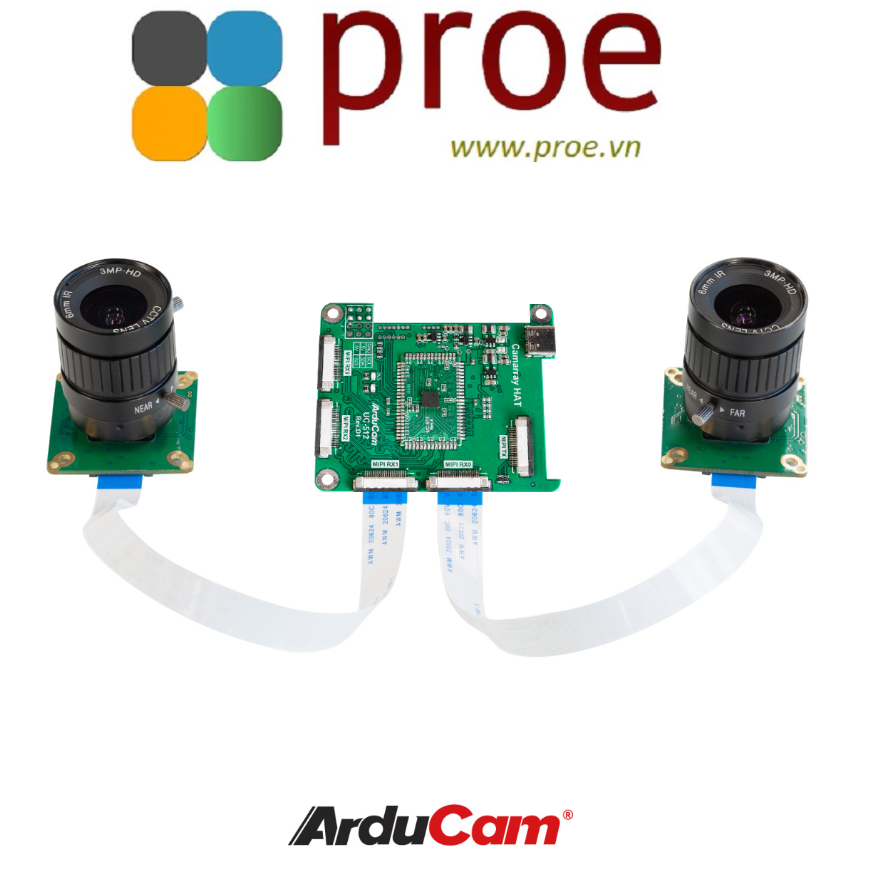

Arducam 12MP*2 Synchronized Stereo Camera Bundle Kit for Nvidia Jetson Nano and Xavier NX, Two 12.3MP IMX477 Camera Modules with CS Lens and Camarray Stereo Camera HAT
- Mã sản phẩm: B0265N
- Nhà sản xuất: uctronics
- Website hỗ trợ: https://www.proe.vn
10.500.000₫

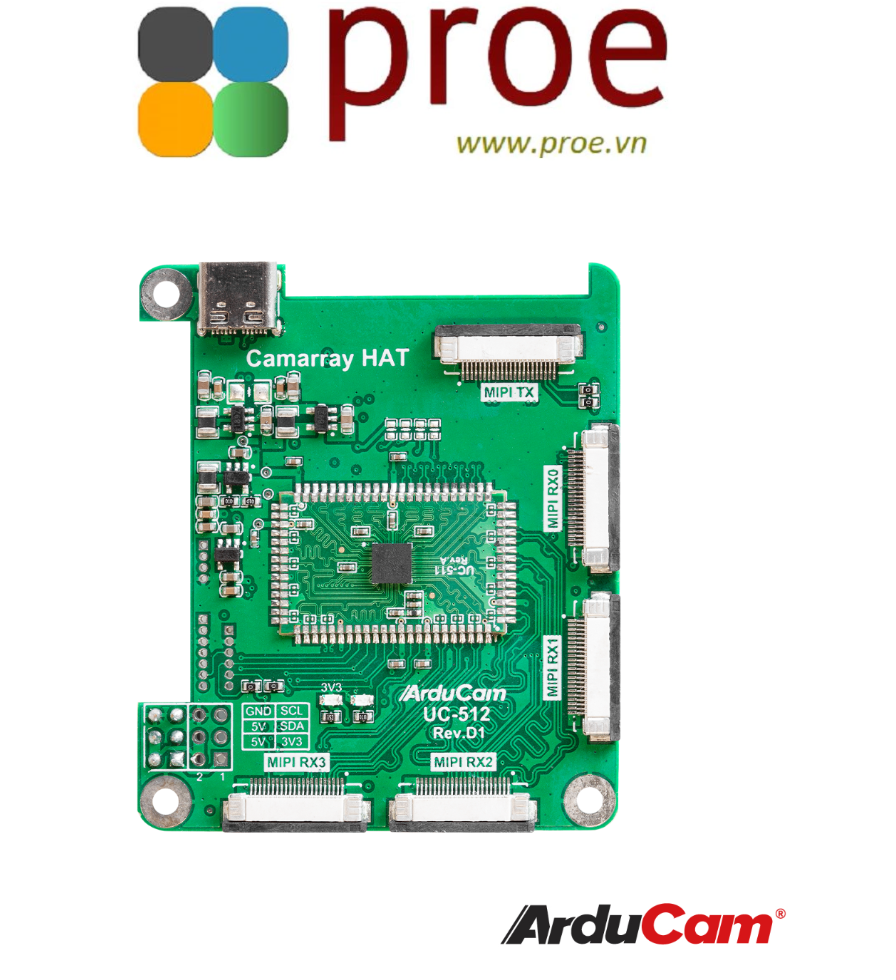

- Two MIPI camera inputs and one MIPI camera output
- Support 1/2 lane MIPI cameras input up-to 1Gbps/lane
- Support 2 lane MIPI output up-to 1Gbps/lane
- Support RAW8/RAW10/RAW12 output format, the output format automatically changes with the input format
- Support Jetson Native commands for IMX219/IMX477 cameras with half resolution combine
- Support Arducam Jetson cameras up to 16MP with proprietary camera driver with full resolution combine
- Support camera side-by-side combine, channel 0 and channel 1 software switching on the fly
- HAT Size: 65 x 56 mm

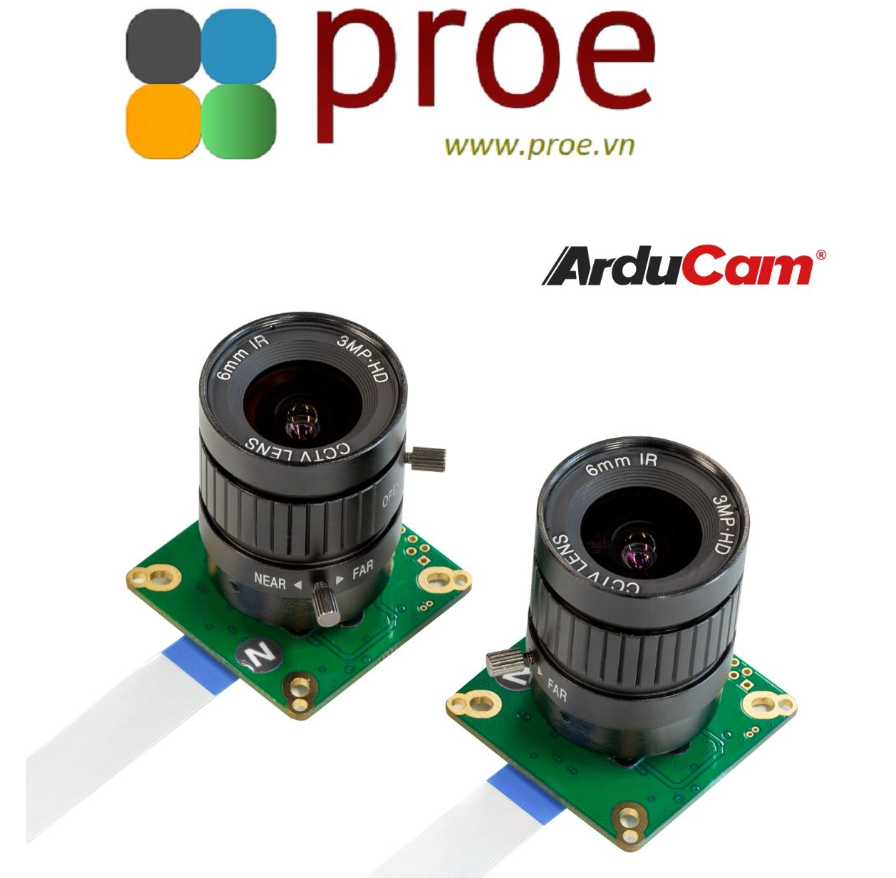

- Sensor: IMX477
- Optical Format: 1/2.3" (diagonal 7.857mm)
- Resolution: 4056(H) x 3040(V) 12.3MP
- Pixel Size: 1.55um x 1.55um
- IR Sensitivity: Visible light
- Interface: 4-lane MIPI CSI-2
- Default Lens Mount: CS-Mount
- Video Modes:4056x3040@10fps, 2028x1529@40fps, 2028x1080@50fps
- Board Size: 38mm × 38mm
- Hole Pitch: Compatible with 29mm, 30mm, 34mm
- Format: 1/2.3 inch
- Focal Length: 6mm
- Aperture (F): Max. F1.2
- Field of View (FOV): 65° (H)
- Mount: CS-Mount
- Back Focal Length: 7.53mm
- MOD: 0.2m
- Dimension: Φ30×31mm
- Weight: 53g
Lens Options
CS-Mount Lens
| SKU | |||||||
|
Part No |
CS17320M12 |
CS2316ZM02 |
CS2308ZM05 |
CS2008ZM05A |
CS1812ZM03 |
CS2325ZM01 |
CS1806ZM06 |
| Optical Format | 1/1.7″ | 1/2.3' | 1/2.3'' | 1/2.3'' | 1/2.3'' | 1/2.3'' | 1/2.3'' |
| EFL(mm) | 3.2 | 16.00 | 8.00 | 8.00 | 12.00 | 25.00 | 6.00 |
| BFL(mm) | 5.94 | 7.53 | 6.50 | 7.53 | 7.53 | 8.03 | 8.03 |
| F/NO | 2.0 | 1.2 | 1.4 | 1.2 | 1.6 | 1.2 | 1.4 |
| HFOV on 1/2.3‘’ Cam | 120° | 24° | 50° | 50° | 30° | 14° | 65° |
| MOD | 0.3m | 0.20m | 0.30m | 0.20m | 0.20m | 0.20m | 0.30m |
|
Size(mm) |
28×30 | 30×29 | 28×23 | 30×29.5 | 30×29 | 28×29 | 28×28.5 |
NOTE: The CS-Mount Lens kit for the IMX477 HQ Camera module, please check LK004, 5 lenses are included.
C-Mount Lens
| SKU | LN043 | LN044 | LN045 | LN047 | |||||||
|
Part No |
C2308ZM50 |
C1550ZM01 |
C1535ZM02 |
C20280M12 |
C2004ZM12 |
C1016ZM02 |
C1705ZM07 |
C1508ZM04 |
C1512ZM03 |
C1516ZM02 |
C1535ZM01 |
| Optical Format | 1/2.3″ | 2/3″ | 2/3″ | 1/2" | 1/2" | 1'' | 1/1.7" | 2/3" | 2/3" | 2/3" | 2/3" |
| EFL(mm) | 8-50 | 50.00 | 35.00 | 2.8-12 | 4-12 | 16.00 | 5.00 | 8.00 | 12.00 | 16.00 | 35.00 |
| BFL(mm) | 17.53 | 17.53 | 17.53 | 17.53 | 17.53 | 17.53 | 17.53 | 17.53 | 17.53 | 17.53 | 17.53 |
| F/NO | 1.4 | 1.8-16 | 1.6-16 | 1-1.6 | 1-1.6 | 1.4-1.6 | 1.6-16 | 1.6-16 | 1.6-16 | 1.6-16 | 1.7-16 |
| HFOV on 1/2.3‘’ Cam | 45°-5.35° | 7° | 18° | 120°-38° | 80°-32° | 24° | 65° | 44° | 31° | 24° | 10° |
| MOD | 0.2m | 0.50m | 0.30m | 0.30m | 0.20m | 0.20m | 0.15m | 0.15m | 0.20m | 0.20m | 0.20m |
|
Size(mm) |
40 x 68.3 | 34×40.5 | 50×35.5 | 44.5×58.5 | 33×43 | 39×50 | 39×41.5 | 39×41 | 34×41.5 | 33×36.5 | 35×30 |
NOTE : For the sample order, please order the lens you need to replace separately and Contact us in advance for customization if you would like to replace the lenses in bulk.

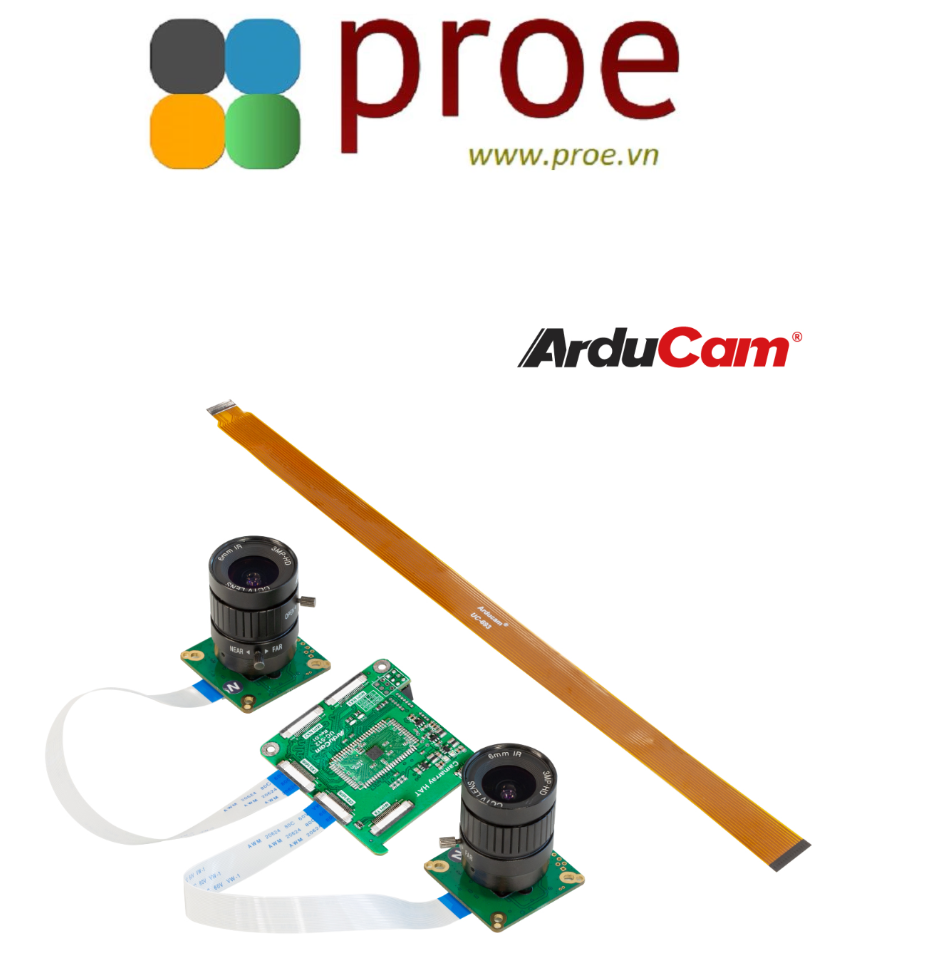

Package Including:
- 2 pcs 12.3MP IMX477 color camera module mounted with CS lens
- 1 pcs Arducam Camarray Stereo Camera HAT
- 2 pcs 150mm/6inch 22pin to 22pin camera cables
- 1 pcs 300mm/12inch 15pin to 22pin camera cable
- 2pcs M2.5*10mm Nylon Hex Standoffs
- 2pcs M2.5*6mm Nylon Screws
Documentation:
Camarray – Arducam 12MP Synchronized Stereo Camera Bundle Kit
VIDEO:
Camarray: Stereo Vision Solutions for Embedded Systems (Pi, Jetson Nano/Xavier NX and more)
[Tutorial] Arducam Camarray 12MP*2 Synchronized Stereo Camera Bundle Kit for Jetson Nano/NX:
