AM263x general-purpose controlCARD™ development kit Arm®-based MCU

AM263x general-purpose controlCARD™ development kit Arm®-based MCU

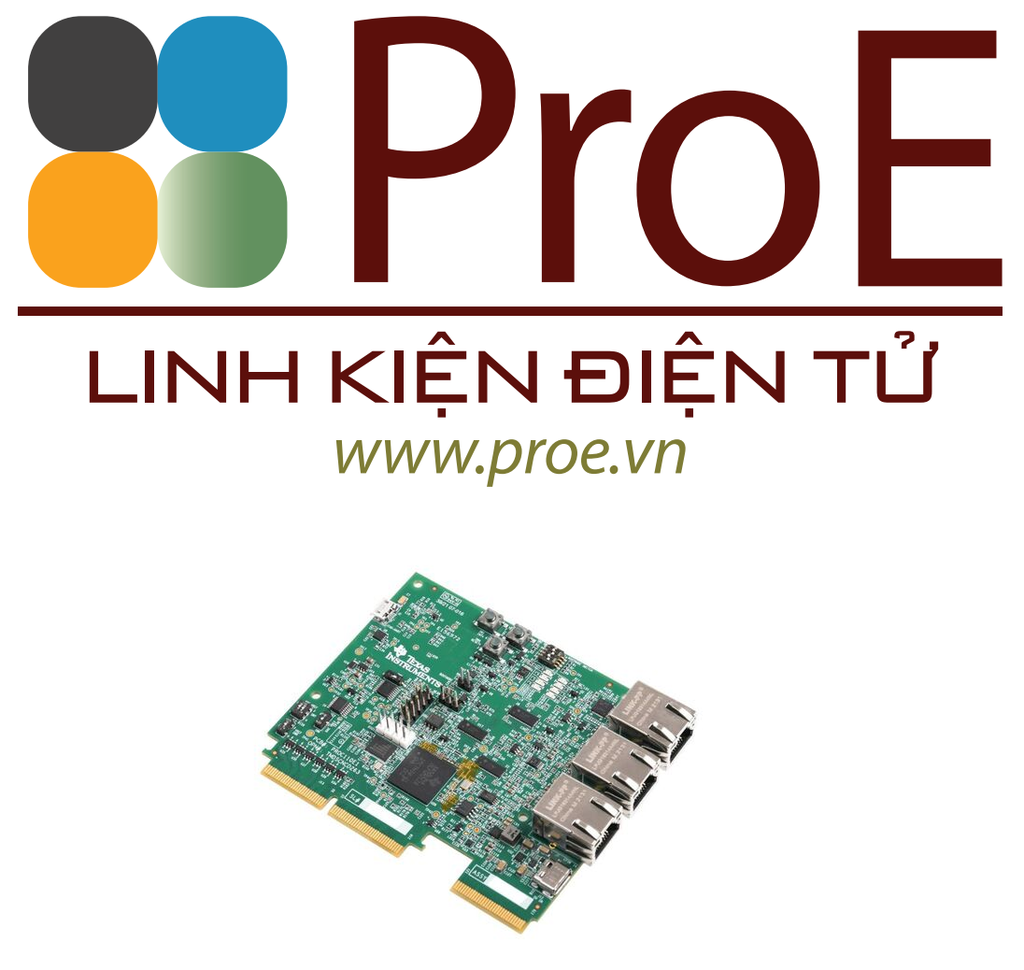

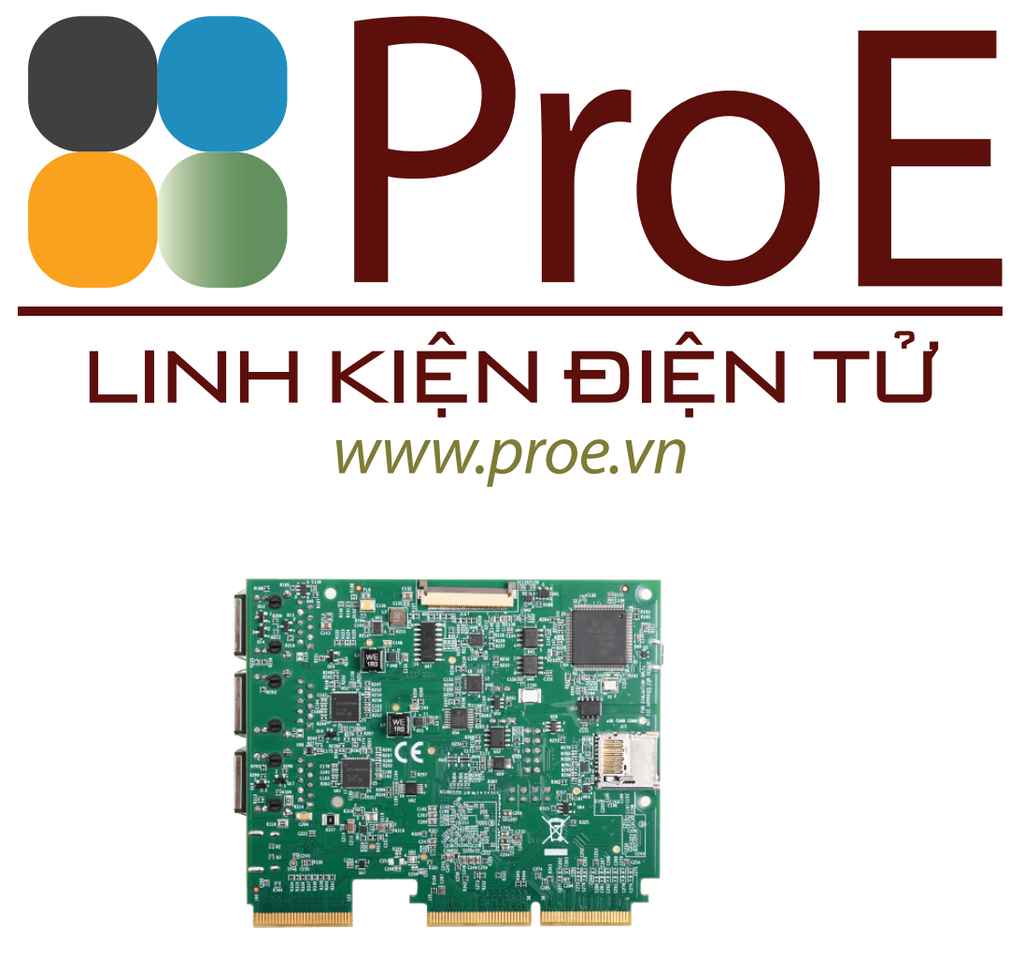

TMDSCNCD263 is an HSEC180 controlCARD based evaluation and development tool for the AM263x series Sitara™ high-performance microcontrollers. This board is ideal for initial evaluation and prototyping as it provides a standardized and easy-to-use platform to develop your next application. The AM263 control card is equipped with a Sitara AM2634 processor along with additional components to allow the user to make use of the various device interfaces including industrial Ethernet, standard Ethernet, fast serial interface (FSI) and others to easily develop and test applications. The AM2634 supports a variety of Industrial Ethernet protocols like EtherCAT, EtherNet/IP and PROFINET.

The TMDSCNCD263 can be used standalone or paired with a controlCARD Baseboard Docking Station.

Features

• Standard 180-pin HSEC interface
• Onboard XDS110 debugger and test automation header
• Onboard 128 MB QSPI Flash and current monitoring
• CAN transceiver, FSI header, three RJ-45 Ethernet jacks

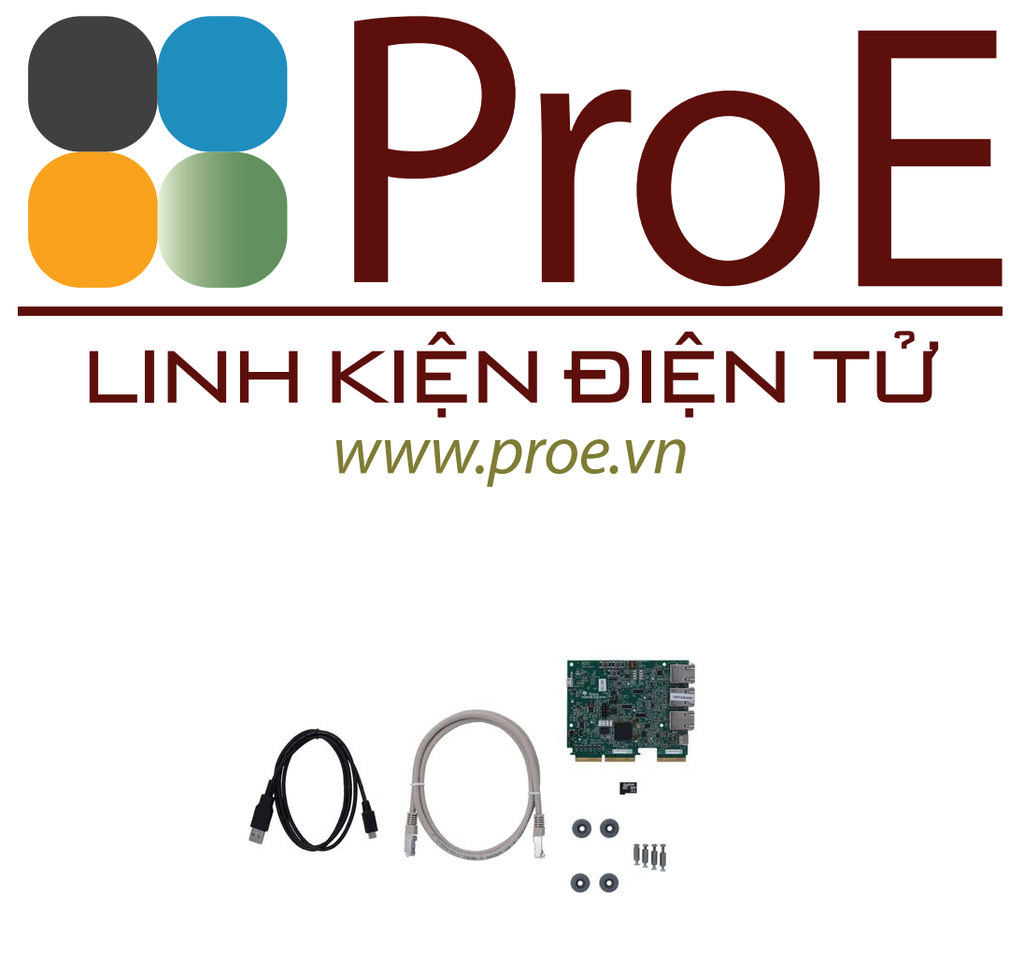

What's included

• AM263x controlCARD
• Type-A to Micro-B USB cable (1 meter length)
• CAT5 Ethernet cable (1 meter length)
• MicroSD Card (16 Gbyte capacity)

Not included

• HSEC Dock
• Standoffs
• USB Type-C 5V/3A AC/DC supply and cable
