AM263Px general-purpose controlCARD™ development kit Arm®-based MCU

AM263Px general-purpose controlCARD™ development kit Arm®-based MCU

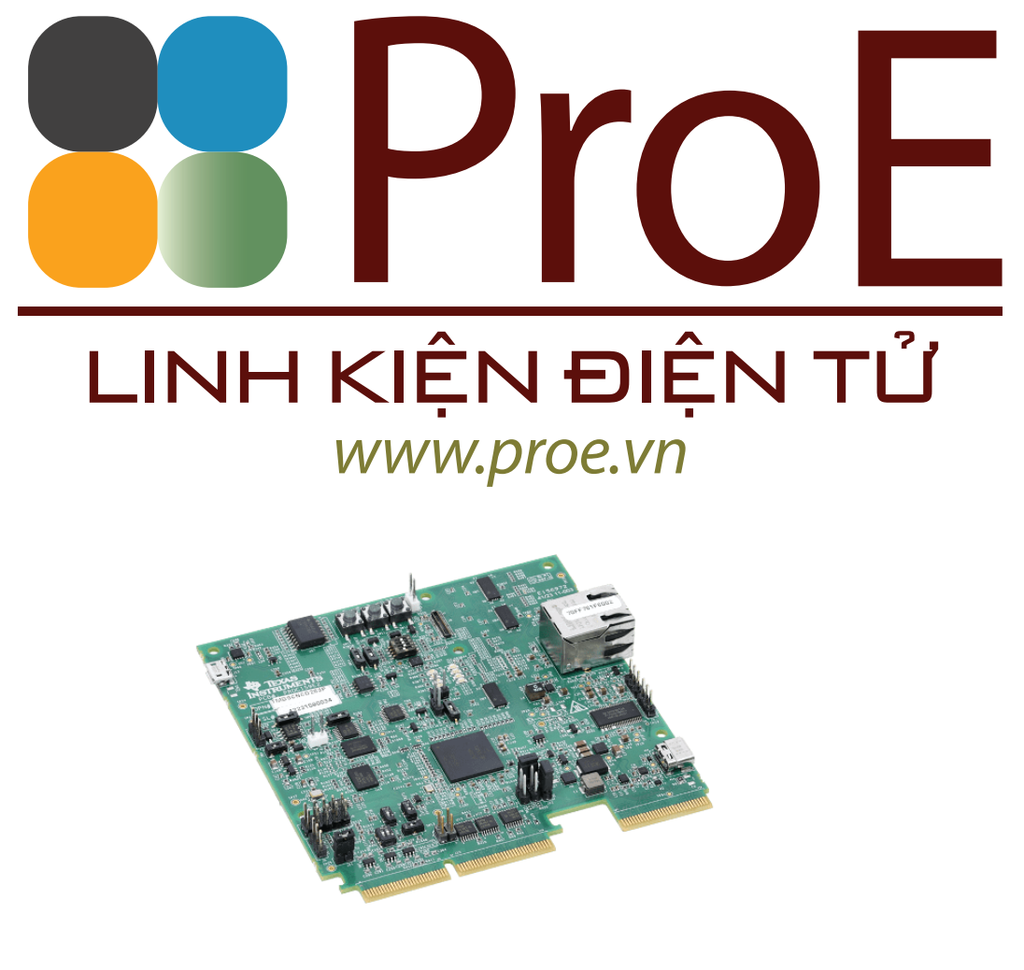

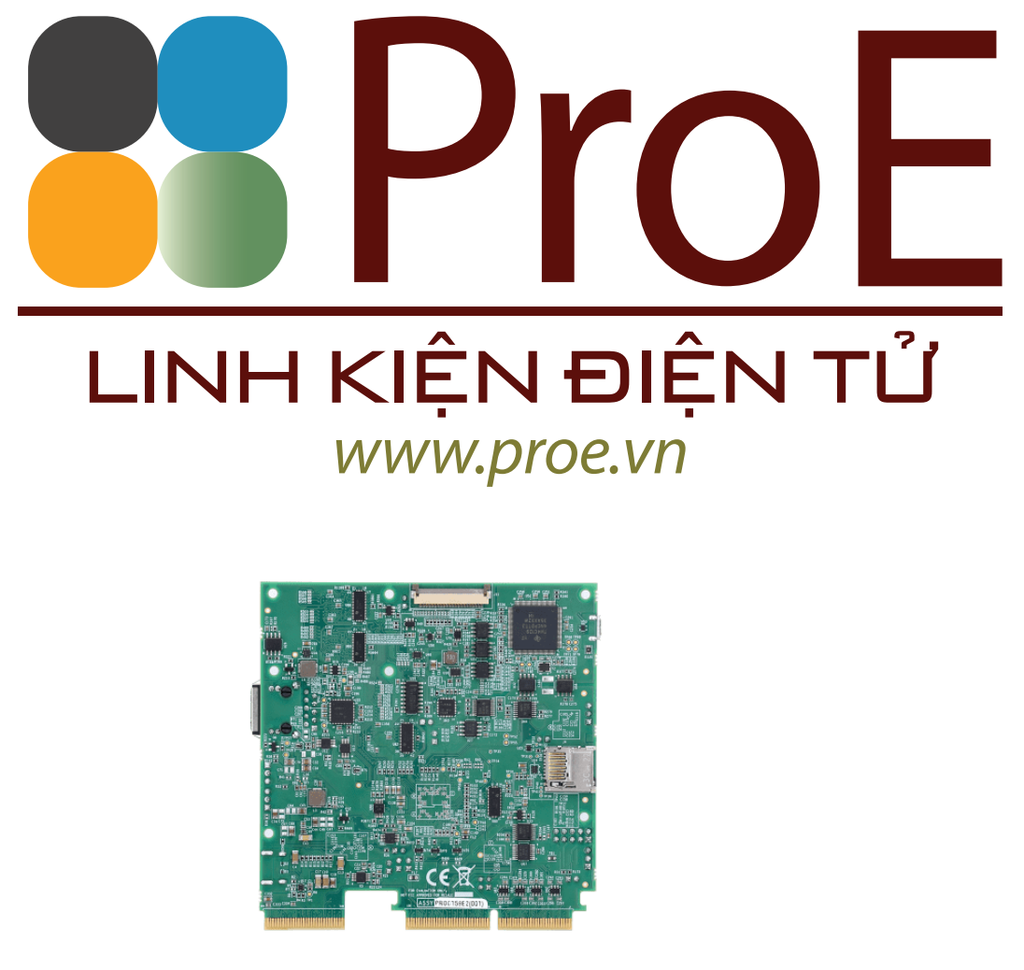

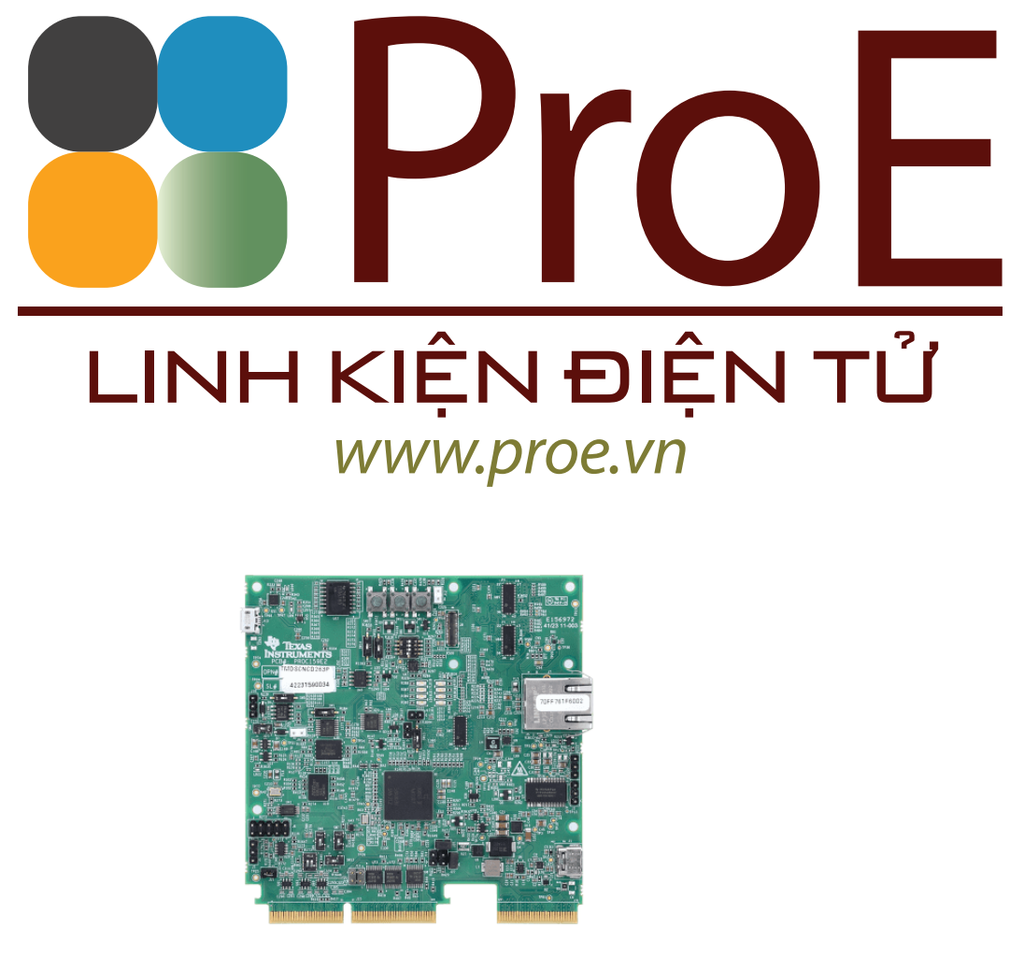

TMDSCNCD263P is an HSEC180 controlCARD-based evaluation and development tool for the AM263Px series Sitara™ high-performance microcontrollers. This board is ideal for initial evaluation and prototyping as it provides a standardized and easy-to-use platform to develop your next application. The AM263P control card is equipped with a Sitara AM263P4 processor along with a PMIC based power solution and additional components to allow the user to make use of the various device interfaces including industrial Ethernet, standard Ethernet, fast serial interface (FSI) and others to easily develop and test applications. The AM263P4 supports a variety of Industrial Ethernet protocols like EtherCAT, EtherNet/IP and PROFINET.

The TMDSCNCD263P can be used standalone or paired with a controlCARD Baseboard Docking Station.


Features

• Standard 180-pin HSEC interface
• Onboard XDS110 debugger and test automation header
• Onboard 256 Mb OSPI Flash, 1 Gb QSPI Flash, and current monitoring
• CAN transceiver, LIN transceiver, FSI header
• 1x RJ-45 Ethernet jack, Ethernet add-on board connector for industrial or automotive Ethernet PHY
• TPS6538600 PMIC

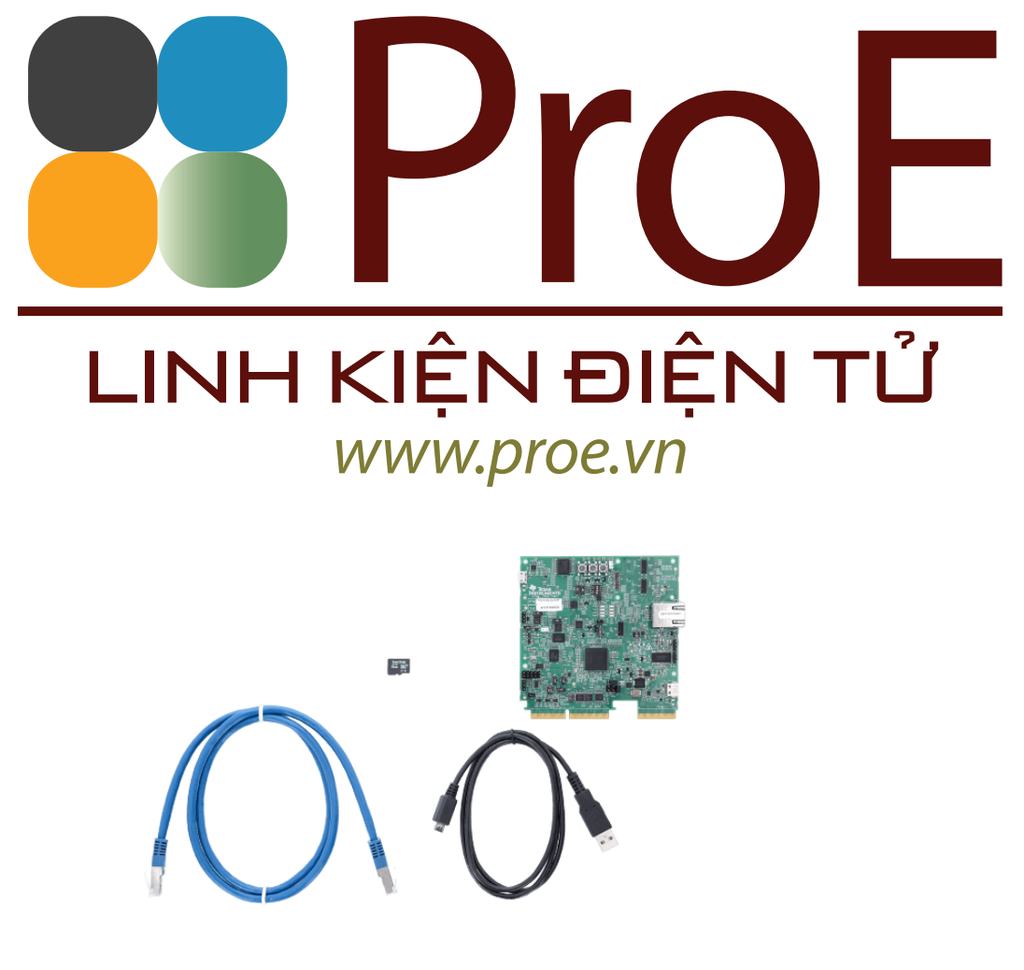

What's included

• TMDSCNCD263P PCB

Not included:

• HSEC Dock
