Introduction

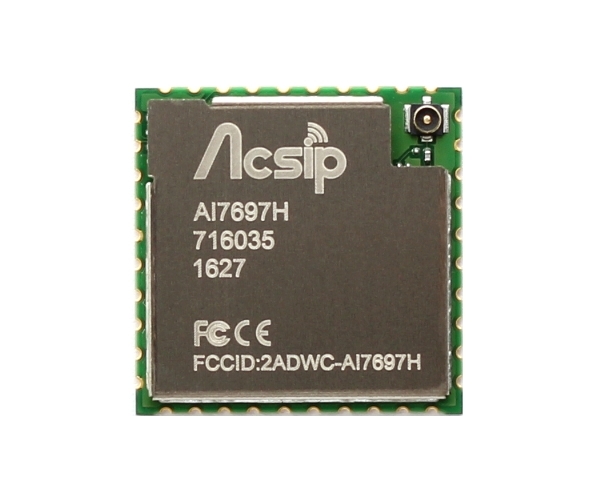

AI7687H is a highly integrated SIP module which features an application processor, a low power 1x1 11n single-band Wi-Fi subsystem, and a Power Management Unit. The application processor subsystem contains an ARM Cortex-M4F MCU, which has many peripherals, including UART, I2C, SPI, I2S, PWM, IrDA, and auxiliary ADC. AI7687H also includes embedded SRAM/ROM and an internal 2MB serial flash.
Key-feature
。Small footprint:18 mm x 18 mm x 1.7 mm |
。ARM Cortex M4 MCU with FPU with up to 192MHz clock speed |
。352KB SRAM / 64KB boot / 2MB Flash |
。IEEE 802.11 b/g/n compliant |
。Hardware crypto engines including AES, DES/3DES, SHA2 for network security |
。Security support for WFA WPA/WPA2 personal, WPS2.0, WAPI |
。Two UART interfaces with hardware flow control and one UART for debug, all multiplexed with GPIO |
。Two I2C master interface multiplexed with GPIO |
。One I2S interface multiplexed with GPIO |
。Security support for WFA WPA/WPA2 personal, WPS2.0, WAPI |
。Integrated LNA, PA, and T/R switch |
。Operation Temperature: Operating : -20℃ ~ +70℃ |
。On module MHF4 series connector: 20449-001E |
