8inch 1536x2048 LCD

PACKAGE CONTENT

Weight: 0.632 kg

1. 8inch 1536x2048 LCD ×1
2. Triangular stand ×1
3. HDMI flat cable ~1m ×1
4. USB-A to USB-C cable ~1m ×1
5. HDMI to Micro HDMI cable ~1m ×1
6. OPTIONS 5V 3A Type-C Power supply ×1

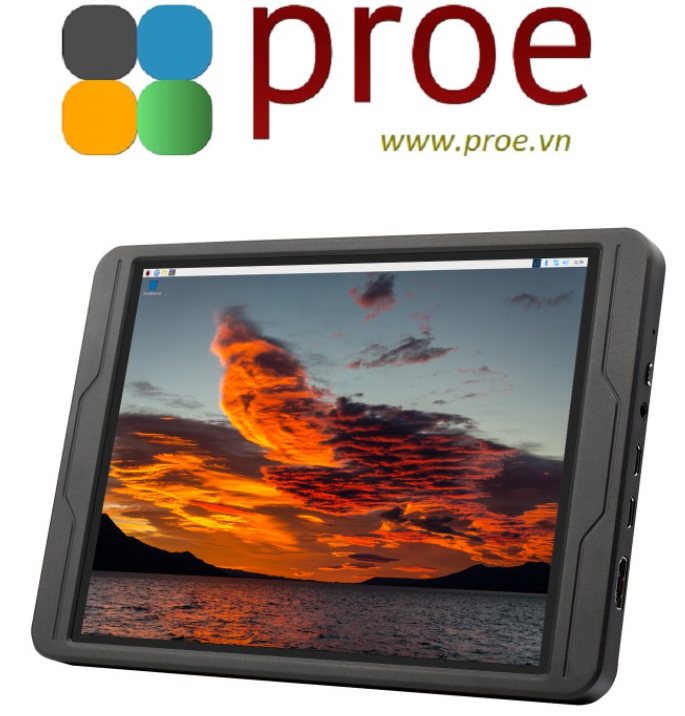

8inch 2K Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1536×2048, IPS, High Compatibility

8″ 2K Touch Display

High Resolution | Multi-Point Touch | Full Color

• Size8″
• Resolution1536×2048
• Display PortHDMI
• Display PanelIPS
• Viewing Angle178°
• Touch TypeCapacitive
• Touch Points10-Point
• Touch PortUSB Type-C
• Touch PanelToughened Glass
• Touch Panel TechOptical Bonding
• SoundHi-Fi Speaker
• Audio Output3.5mm Jack
• EnclosureCNC Process Alloy

The display orientation is portrait by default, 1536×2048 resolution (H×V). Change the software config for landscape display.

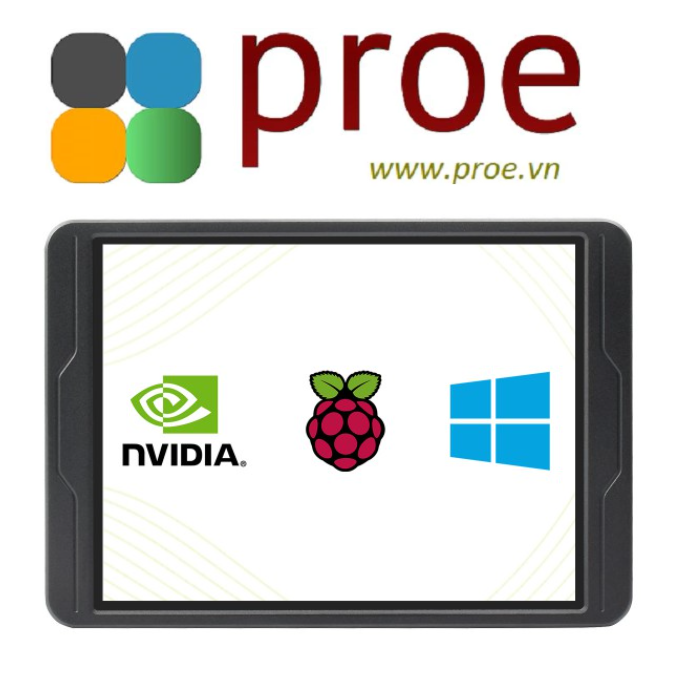

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali, single point touch, driver free

Jetson Nano

Supports Ubuntu, single point touch, driver free

PC

Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free

• For the moment, only the Raspberry Pi 4B and CM4 have adequate CPU performance to drive this 2K display completely.
• Support more powerful future versions as long as its GPU performance is equivalent to or better than the Pi 4B.

Connection Examples

Working With Raspberry Pi 4B

Working With Compute Module 4

Working With Jetson Nano

Working With Mini PC

for reference only, the above controller boards or host are not included.

IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle

2K High Resolution

1536×2048 Pixels, Clearer Display

Capacitive 10-Point Touch

1. up to 10-point touch, depending on the operating system
2. up to 6H hardness toughened glass panel
3. Optical Bonding, display well and dustproof

Audio Feature

Built-In Ferrite Hi-Fi Speaker, Dual-Track Support

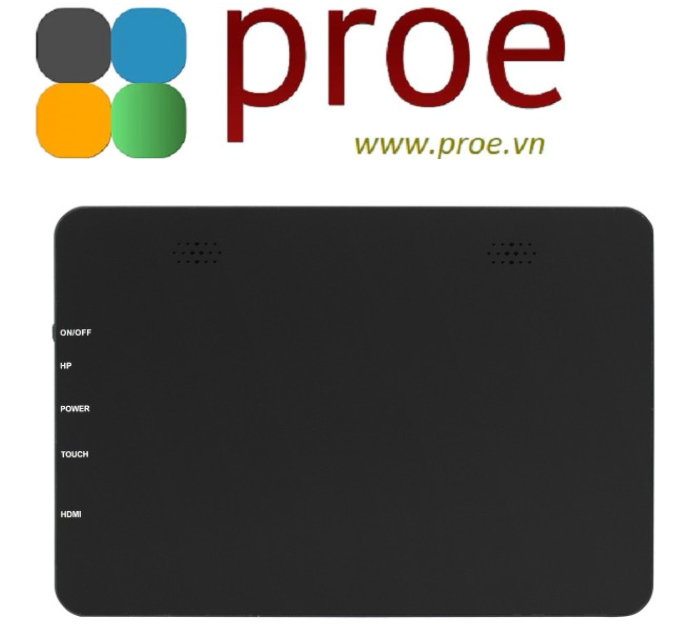

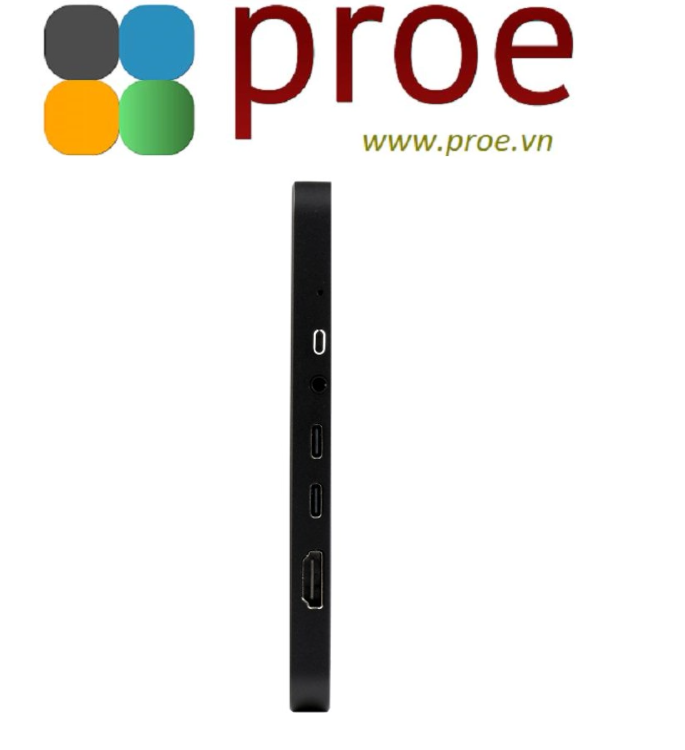

Interface Introduction

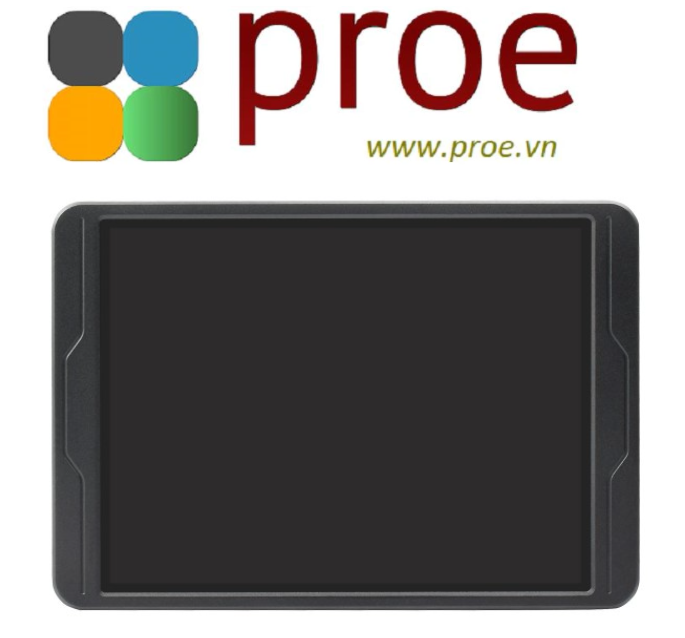

Product Show

Dimensions

Support Touch Screen Customization

Support The Following Ways To Customize The Touch Screen Display In Bulk Order

Over A Decade
Waveshare Grows With Display

* Waveshare has been focusing on display design for over 10 years.

Resources & Services

Wiki: www.waveshare.com/wiki/8inch-1536x2048-LCD
