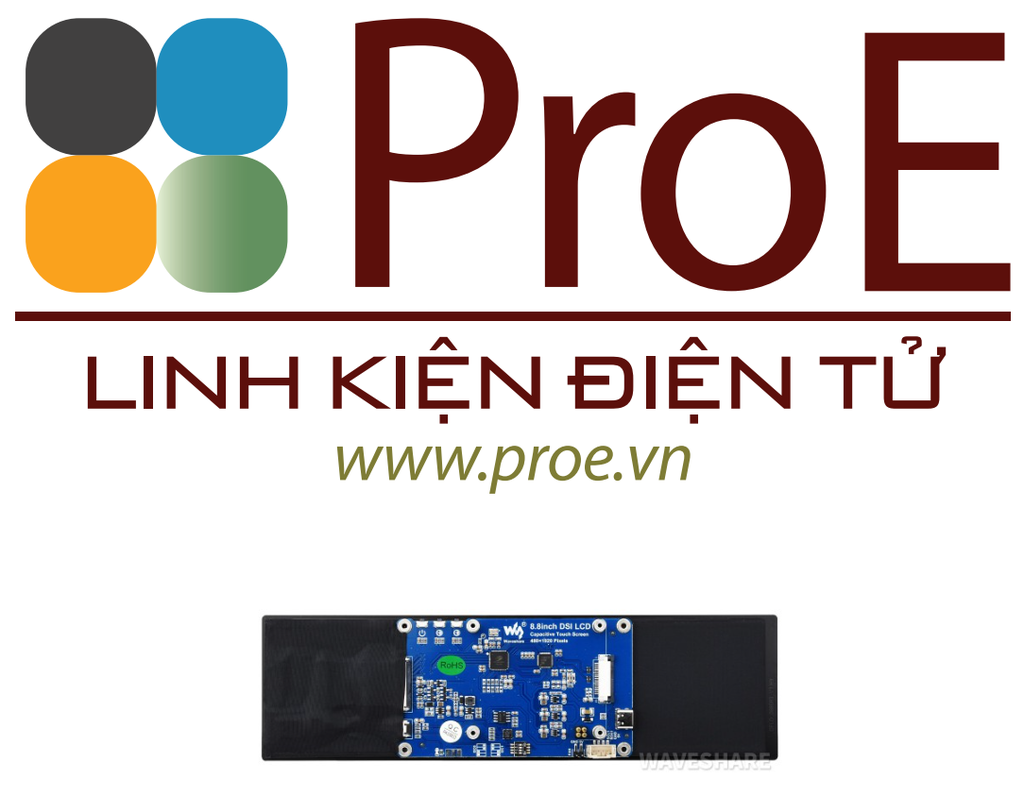

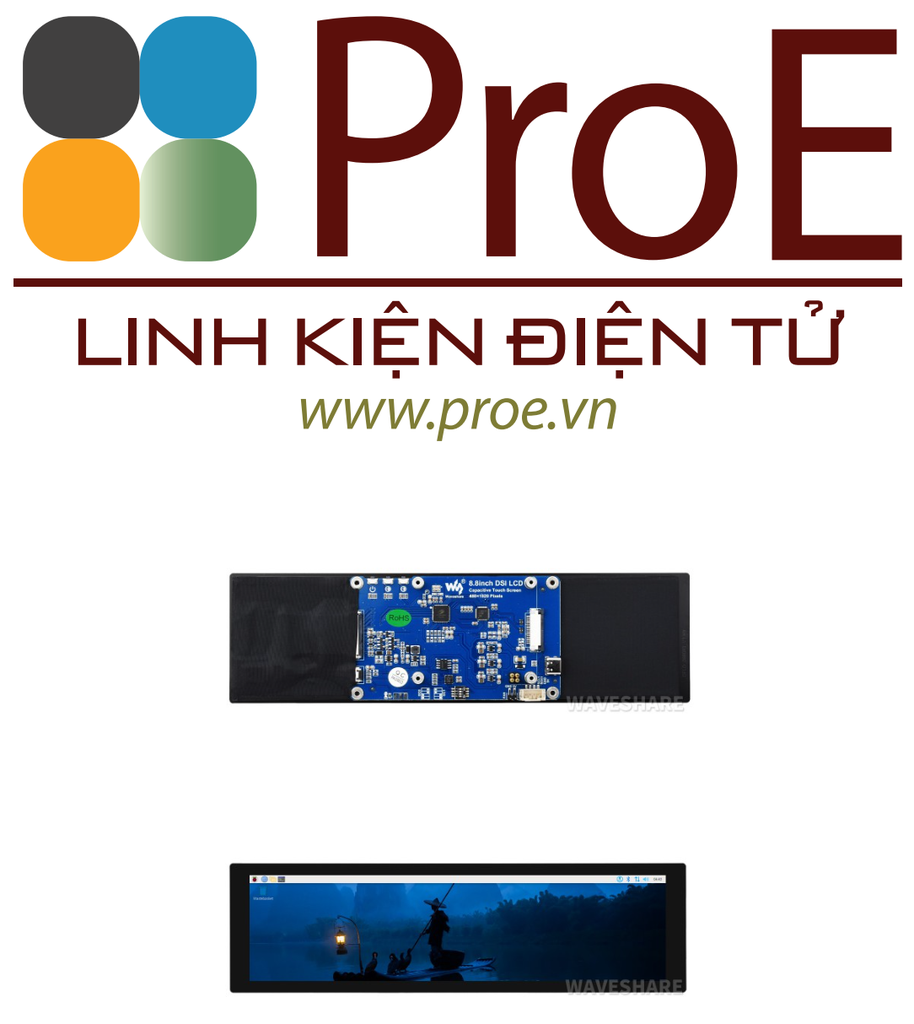

8.8inch DSI LCD

Package Content

Weight: 0.23 kg

1. 8.8inch DSI LCD x1
2. DSI-Cable-12cm x1
3. FPC 15PIN 1.0 pitch cable 50mm (opposite sides) x1
4. FPC 15PIN 1.0 pitch cable 160mm (opposite sides) x1
5. Screwspack x1
6. PH2.0 4PIN cable ~200mm x1

8.8inch DSI Capacitive Touch Display, 480 × 1920, IPS, Optical Bonding Toughened Glass Panel, DSI Interface, 10-Point Touch

8.8″ DSI Capacitive Touch Display

High Resolution | Multi-touch | Full Color

• Size8.8″
• Resolution480×1920
• Display InterfaceDSI
• Display PanelIPS
• Viewing Angle178°
• Touch TypeCapacitive
• Touch Points10-Point
• Touch InterfaceI2C
• Touch PanelToughened Glass
• Touch Panel TechOptical Bonding

The display orientation is portrait by default, with 480×1920 resolution (H×V). Change the software config for landscape display.

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 10-point touch, driver free for new version system

Connection Examples

Working with Raspberry Pi 5

Please connect the DSI cable as shown above, and power the LCD through the pogo 5V pin

Working with Compute Module 4 IO Board

Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin

Working with Raspberry Pi 4B

Please connect the DSI cable as shown above, and power the LCD through the pogo 5V pin

for reference only, the Raspberry Pi boards are NOT included.

IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle

10-Point Capacitive Touch

1. up to 10-point touch, depending on the operating system
2. up to 6H hardness toughened glass panel
3. Optical Bonding, provides clear image, dustproof

Adjustable Brightness Via Software

Interface Introduction

Dimensions

Support touch screen customization

Support the following ways to customize the touch screen display in bulk order

Over a decade
Waveshare grows with display

* Waveshare has been focusing on display design for over 10 years.

Resources & Services

Wiki: www.waveshare.com/wiki/8.8inch_DSI_LCD
