7.5inch e-Paper HAT

DESCRIPTION

640x384, 7.5inch E-Ink display HAT for Raspberry Pi, SPI interface

Overview

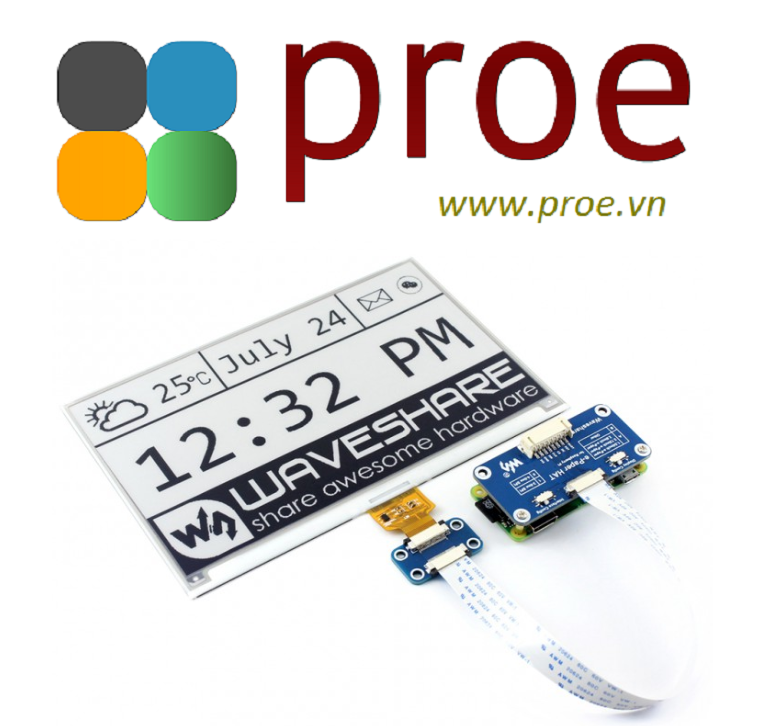

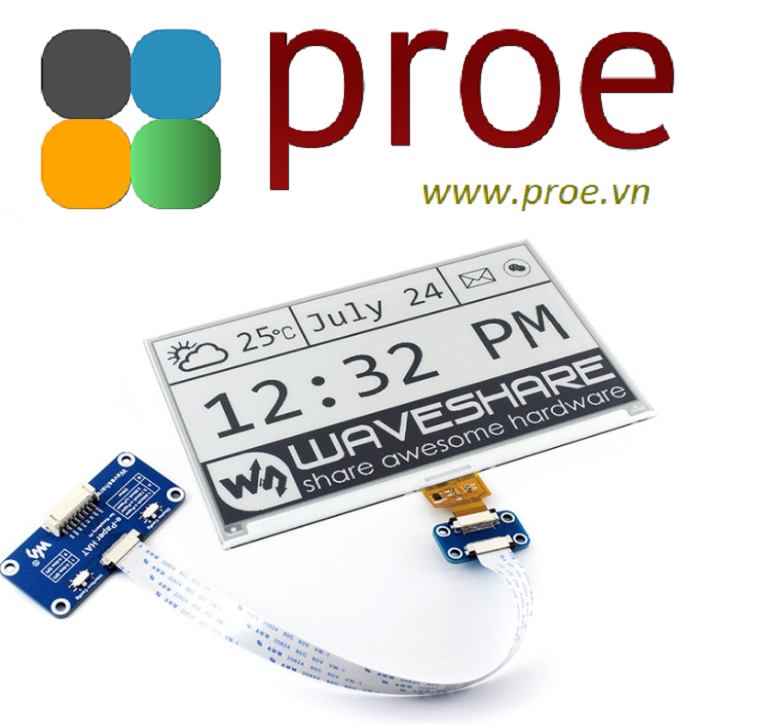

This is an E-Ink display HAT for Raspberry Pi, 7.5inch, 640x384 resolution, with embedded controller, communicating via SPI interface.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing

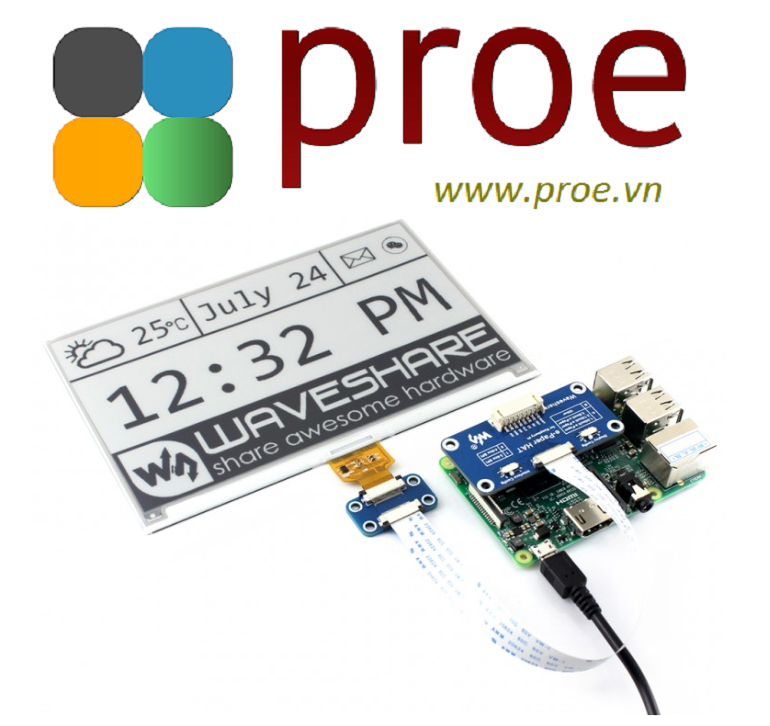

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
• SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
• Onboard voltage translator, compatible with 3.3V/5V MCUs
• Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

• Operating voltage: 3.3V~5V
• Interface: SPI
• Outline dimension: 170.2mm × 111.2mm
• Display size: 163.2mm × 97.92mm
• Dot pitch: 0.255 × 0.255
• Resolution: 640 × 384
• Display color: black, white
• Grey level: 2
• Full refresh time: 6s
• Refresh power: 38mW(typ.)
• Standby power: <0.017mW
• Viewing angle: >170°

Interface

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/7.5inch_e-Paper_HAT

PACKAGE CONTENT

Weight: 0.065 kg

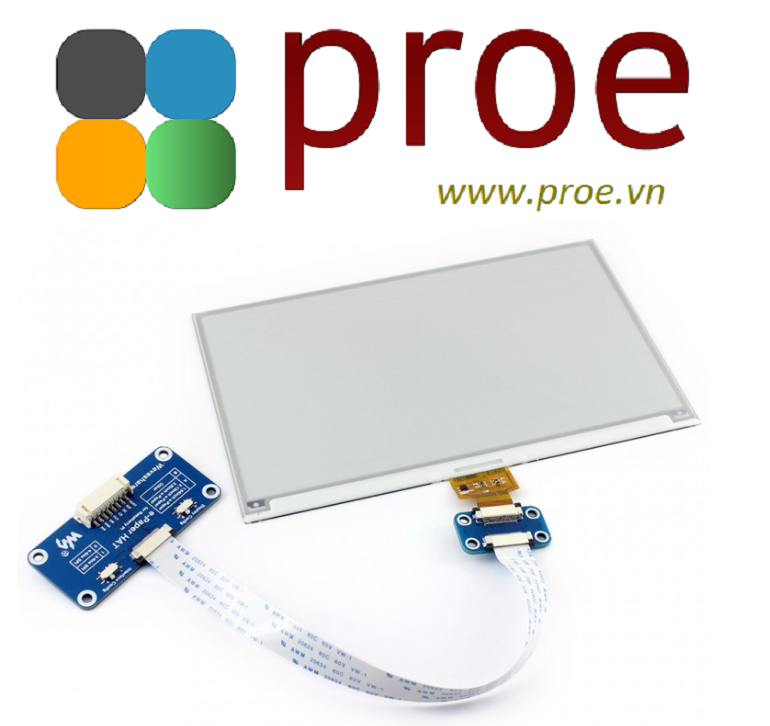

1. 7.5inch e-Paper x1
2. e-Paper Driver HAT x1
3. RPi screws pack (2pcs) x1
4. PH2.0 20cm 8Pin x1
