5.79inch e-Paper Module (G)

5.79inch e-Paper Module (G)

1. 5.79inch e-Paper Module (G) x1
2. GH1.25 9PIN cable 20cm x1

1

2

5.79inch e-Paper display (G), e-ink display, 792x272, Red/Yellow/Black/White, SPI Interface

5.79″ e-Paper (G)

low power, wide viewing angle, paper-like effect without electricity

Ideal for price tags, shelf labels, industrial instruments...

Note: the driver board is optional, please refer to the Package Content for detailed part list

• Size5.79″
• Resolution792×272
• Viewing Angle>170°
• Display ColorRed/Yellow/Black/White
• Grey Scale2
• CommunicationSPI
• Display PanelE-paper
• ExperiencePaper-like
• EnvironmentAmbient Light Required
• Display TypePassively Reflective

Version Options

5.79inch e-Paper (G)
raw display, without driver board

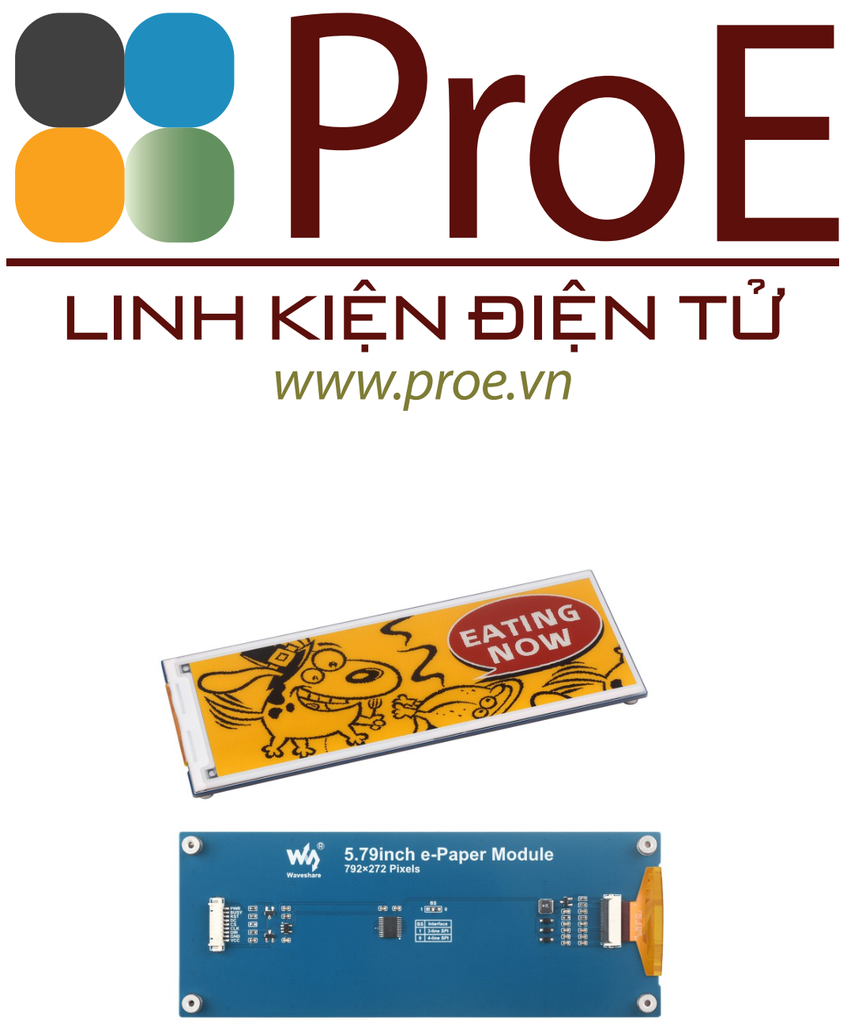

5.79inch e-Paper Module (G)
with driver board

Features at a glance

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• Comes with development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Series/Arduino/STM32)
• Optional for e-Paper driver board:
  • Adapting SPI interface for connecting with controller boards like Raspberry Pi/Jetson Series/Arduino/STM32, etc.
  • Onboard voltage translator, compatible with 3.3V / 5V MCUs

Specifications

Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Optional for e-Paper driver board

Onboard SPI Control Interface, For Use With Controller Boards Like Raspberry Pi/Jetson Series/Arduino/STM32

Onboard Voltage Translator

Compatible With 3.3V / 5V MCUs

Usage Example

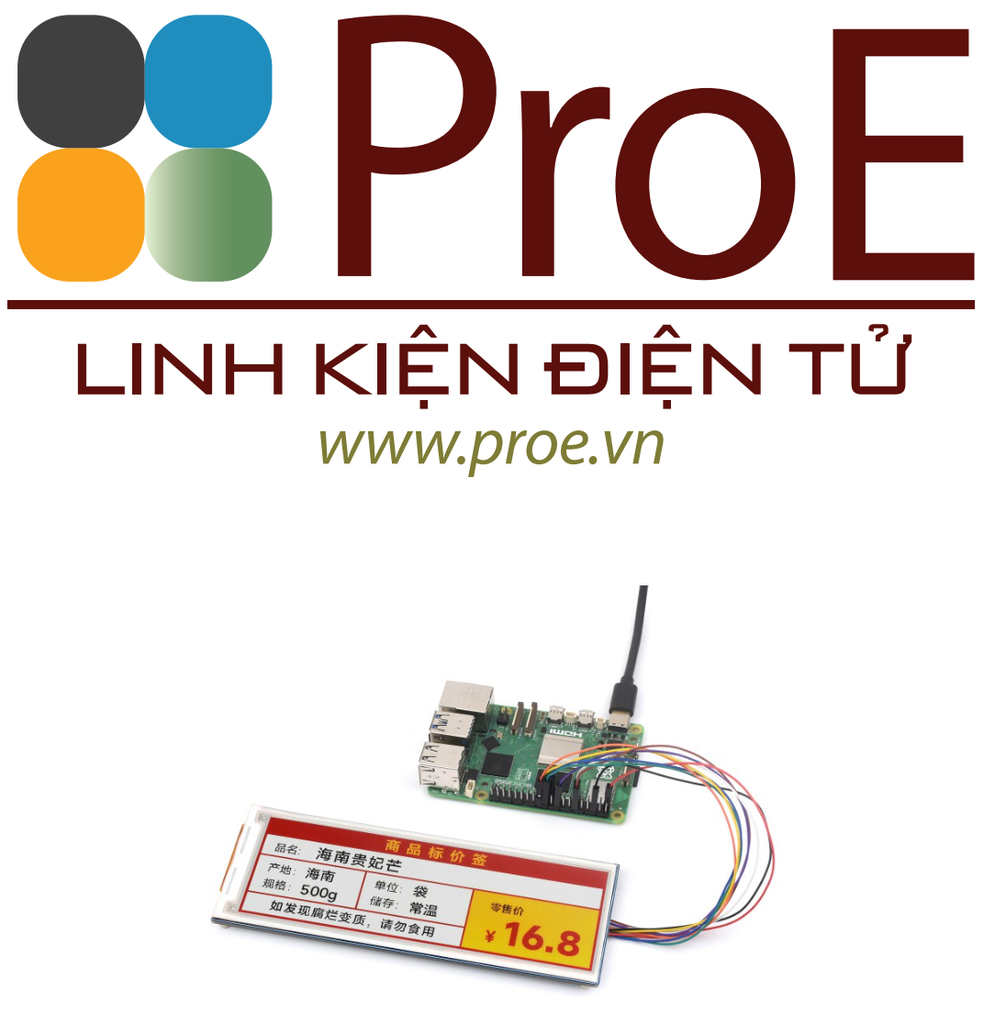

Connecting with Raspberry Pi 5

* for reference only, the Raspberry Pi 5 is NOT included.

supported driver boards for raw display

	Universal e-Paper Raw Panel Driver HAT e-Paper Driver HAT	Click here to purchase
	Universal e-Paper Raw Panel Driver Board, ESP32 WiFi / Bluetooth Wireless e-Paper ESP32 Driver Board	Click here to purchase
	Universal e-Paper Raw Panel Driver Board, ESP8266 WiFi Wireless e-Paper ESP8266 Driver Board	Click here to purchase
	Universal e-Paper Raw Panel Driver Shield for Arduino / NUCLEO e-Paper Shield	Click here to purchase

Application examples

Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...

Outline dimensions

Resources & Services

WIKI: www.waveshare.com/wiki/5.79inch_e-Paper_Module_(G)
